Headless CSS compiler: no display, no browser, no designer jar by shai-almog · Pull Request #5965 · codenameone/CodenameOne

shai-almog · 2026-10-08T13:54:24Z

Compiling css/theme.css to theme.res no longer opens a window, boots the JavaSE port, starts a browser or needs the designer jar. The Maven and Gradle css goals and the simulator's live reload all fork one headless compiler that runs under java.awt.headless=true with no display.

What changed

One compiler. com.codename1.designer.css.CN1CSSCLI (artifact codenameone-css-cli, both names kept as the contract between the simulator and the plugin-supplied classpath) no longer creates a JFrame or initialises JavaSEPort. NoCefCSSCLI, WebviewSnapshotter, SimpleWebServer and capture.js are deleted. css-cli no longer depends on codenameone-javase.
Generated images are painted in process. CSS with no native equivalent (cn1-9patch, cn1-image-border, non-native box-shadow, per-side borders, some gradients, percentage sizes) is rendered by a new pure-Java2D rasterizer, com.codename1.designer.css.raster, using the page geometry the browser capture used, so image sizes and 9-piece slices are unchanged.
Swing is off the compile path. EditableResources and EditorFont report through a ResourceEditorUi hook; the Swing implementation lives in the Designer.
Simulator. CSSWatcher forks only the headless CLI. The designer-jar fallback is gone and a child that keeps exiting is restarted a bounded number of times.
Templates. -Dcodename1.designer.jar is removed from the archetype, the initializr and the in-repo apps.
Native themes are built with -no-raster -native-theme-units and rebuild byte-identical.
CI. xvfb-run is removed where CSS was the only reason for it. archetype-smoke.yml and gradle-smoke.yml run a CSS build with DISPLAY and WAYLAND_DISPLAY cleared as a regression guard.

The command line is -input a.css[,b.css] -output x.res [-merge f] [-l dir] [-watch]. -css, -stateless and -no-cef are accepted and ignored. The positional form is refused with a pointer to -input/-output. Exit status is 0, 1 for a stylesheet that failed to compile, 2 for a bad command line.

Bugs fixed along the way

updateResources deleted the X.border / X.bgImage keys createImageBorders had just written, so generated borders were dropped from the theme. Apps that rely on generated borders may look different, because the borders are back.
States sharing one generated image read it from a record that never had one.
radial-gradient hung the compiler in three forms, and the multi-stop parser dropped the first colour of a plain one.
@import was silently ignored; local imports are now inlined, with relative url()s rebased and cycles reported.
background: url(x.png) no-repeat failed the compile.
A localization-only edit never triggered a recompile.

Not changed

The two Ant templates (Samples/SampleProjectTemplate/build.xml, tests/TestNativeInterfaces/build.xml) stay on the frozen designer jar.
starter-canary.yml, and scripts/website/build.sh when it is not bootstrapping workspace snapshots, keep xvfb: they build with a published plugin.

Testing

css-compiler and css-cli tests, both run with -Djava.awt.headless=true, including a forked compile under -verbose:class asserting that no Swing component, Frame or Window class loads.
Simulator-side CSSWatcher / MavenUtils tests, CompileCSSMojoTest, the core CSS unit tests.
The previous GUI compiler and this one produce identical theme entries for four real application stylesheets (entries and image names compared, not pixels).
All six native themes rebuild byte-identical.
The Maven css goal on scripts/hellocodenameone with DISPLAY unset.
SpotBugs at zero for build-engine, project-model and both plugins; copyright, control-character, author-tag and since-tag gates.

Not exercised locally: the Gradle cn1Css path end to end, live reload against a real forked compiler, the Designer GUI at runtime, and pixel similarity to the browser-rendered output.

🤖 Generated with Claude Code

The CSS compiler paints a rule that has no native theme equivalent into an image and slices it. That painting was done by a CEF browser, which needs a display. This package paints the same box -- backgrounds, gradients, per-side borders, elliptical radii, outer and inset shadows, border images -- with Java2D into a BufferedImage, and runs under java.awt.headless=true. It depends on the JDK only. Nothing uses it yet. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

A rule the theme format cannot express natively (cn1-9patch, a blurred or inset shadow, an image or unsupported gradient behind a radius) is now painted by the in-tree rasterizer instead of a CEF screenshot. The geometry the browser path used is kept exactly -- a 640x960 page, a 100px default height, the same shadow margins and unit scales -- because the 9-piece slices are computed from the size of the image it produces. HeadlessCssCompilerImplementation becomes the one implementation the compiler runs on: it decodes and scales images with ImageIO, and pins the unit conversion to the value application themes were always compiled with (measured against the released compiler: 5px/mm, medium density). The framework's own native themes were built with a different conversion and keep it through setNativeThemeUnits, so neither set of themes changes size. EditableResources no longer opens Swing dialogs itself; the resource editor installs them through ResourceEditorUi. Bugs this uncovered, fixed here: - updateResources cleared the border/bgImage keys createImageBorders had just stored, so a generated image was written to the file and never used. - States and UIIDs sharing one generated image read it from a record that had never been given one. - radial-gradient: the two-colour parser looped forever on a first argument that is not a keyword, and the multi-stop parser dropped the first colour of a gradient with no shape or position. - getImageBorderInsets looped forever on a non-function token after a gradient. - @import was parsed and ignored; local imports are now inlined. - The background shorthand read no-repeat and position keywords as colours. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

…igner CN1CSSCLI opened a JFrame and booted JavaSEPort for every compile, which is why a build that only compiles CSS needed xvfb. It now installs the headless implementation, sets java.awt.headless itself, and depends on the engine and project-model only. The module also takes over the runnable jar-with-dependencies from css-compiler; NoCefCSSCLI is gone, and the native-themes scripts run this CLI with -no-raster -native-theme-units. Merge, localization, the up-to-date skip, the compile lock and watch mode are kept. The positional form Ant builds used is refused by name; -css, -stateless and -no-cef are accepted and ignored so an older simulator or plugin still works against this jar. main() no longer calls System.exit from the middle of a compile: run() returns a status, which is what the resource editor now calls. Fixed on the way: - A change to a localization bundle alone never recompiled the theme. - Watch mode snapshots its sources before compiling, so an edit made during a compile is not lost, and watches imported files and bundles too. - The merged stylesheet is rewritten only when its content changes. The three CSS classes left in CodenameOneDesigner had no callers and are removed. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

CSSWatcher forks CN1CSSCLI from the classpath the Maven or Gradle plugin supplies, headless, and nothing else: the fallback that ran the designer jar is removed, and a project whose build supplies no compiler gets one line saying so. A child that keeps dying is restarted at most three times in ten seconds instead of forever. MavenUtils.isRunningInMaven() recognised a generated project only by the codename1.designer.jar property its pom forwarded. It now also asks the project layout, so the templates can stop passing that property without live reload and hot reload going quiet. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

The CSS compiler runs with no display, no browser and no JavaSE port, so build steps stop borrowing a virtual one, and two smoke legs now clear DISPLAY to keep it that way. - Drop xvfb from build-only steps (linux-build-run prepare job, windows-cross-build-run, scripts-javascript, port-status-nightly, designer, the framework/catalog/build legs of archetype-smoke and gradle-smoke, the fidelity app build, the demos' process-classes, the Settings tests in pr.yml) and from build-android-app.sh and build-android-port.sh. Steps that start the simulator, run cn1:test, take screenshots or drive a browser keep it. - Guard: cn1app-staged-jar-test.sh and gradle-cn1lib-test.sh run with DISPLAY and WAYLAND_DISPLAY cleared; so do the designer.yml CLI check and the Settings tests. - Kept where a PUBLISHED plugin compiles the CSS: starter-canary.yml, and website/build.sh when it is not bootstrapping the workspace. - Port scripts install -pl css-cli -am instead of -pl designer -am: the css goal forks the CLI from the local repository, the designer is not part of any build. - Native theme steps build -pl css-cli -am; path filters that named maven/css-compiler also name maven/css-cli. - Developer guide: the compiler is headless and paints generated images itself; document @import of local stylesheets. native-themes/README.md and CLAUDE.md describe -no-raster / -native-theme-units. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-08T13:54:52Z

@codex review

chatgpt-codex-connector · 2026-10-08T13:55:10Z

Codex Review Summary

This comment shows the latest Codex review activity on this pull request.

Review	Status	Commit	Review trigger
📝 Code Review	🔄 Running since 2026-10-11T13:22:00.931864Z	`0b53a4c`	Manual request

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review" or "@codex security review".

Codex reacts with 👀 while any review is running, comments if it has suggestions, and reacts with 👍 once all reviews finish with no findings.

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 9d46066eb8

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…ds compiling A merged build mirrors each input's directory and points url()s into the mirror. A stylesheet imported from outside that directory brought url()s that climbed out of the mirror and named files nothing had copied, so the compile failed. Those files are now copied into the mirror one by one. An SVG or Lottie background on a rule that needs a generated image failed the build, because the compiler never decodes those files. The layer is now left out of the generated image with a warning naming the file. The generated image keeps painting only the first background-image layer at the top left corner: no position is ever stored and only the head of the value was ever rendered. Comments at both places say why. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-08T14:13:44Z

Native fidelity (Android, Material 3)

54 pairs compared -- median 95.6%, worst 91.3% (FlatButton_pressed_dark), 25th pct 94.9%, mean 95.7%.

Distribution -- >=99%: 2 | 95-99%: 37 | 90-95%: 15 | <90%: 0

Component	State	Appearance	Material	Fidelity	SSIM	mean delta	Geometry
FlatButton	pressed	dark	normal	91.3%	0.899	3.10	ok
Tabs	normal	light	normal	92.3%	0.914	3.05	ok
Button	pressed	dark	normal	92.6%	0.949	4.32	ok
FlatButton	normal	dark	normal	93.2%	0.938	2.69	ok
Button	disabled	dark	normal	93.3%	0.928	2.20	ok
Button	pressed	light	normal	93.3%	0.952	3.68	ok
FlatButton	normal	light	normal	93.7%	0.941	2.29	ok
FlatButton	pressed	light	normal	93.8%	0.942	2.56	ok
FloatingActionButton	pressed	light	normal	94.4%	0.927	2.82	OFF (h 0.88)
RadioButton	normal	dark	normal	94.5%	0.963	2.19	ok
RadioButton	normal	light	normal	94.7%	0.964	1.85	ok
CheckBox	selected	dark	normal	94.7%	0.950	2.60	ok
RadioButton	selected	dark	normal	94.8%	0.963	2.42	ok
CheckBox	normal	dark	normal	94.9%	0.952	2.69	ok
Button	normal	dark	normal	94.9%	0.949	3.16	ok
CheckBox	normal	light	normal	95.0%	0.953	2.30	ok
Toolbar	normal	dark	normal	95.1%	0.906	1.60	ok
RaisedButton	pressed	dark	normal	95.2%	0.950	2.39	ok
CheckBox	disabled	dark	normal	95.2%	0.954	1.47	ok
CheckBox	disabled	light	normal	95.2%	0.956	1.34	ok

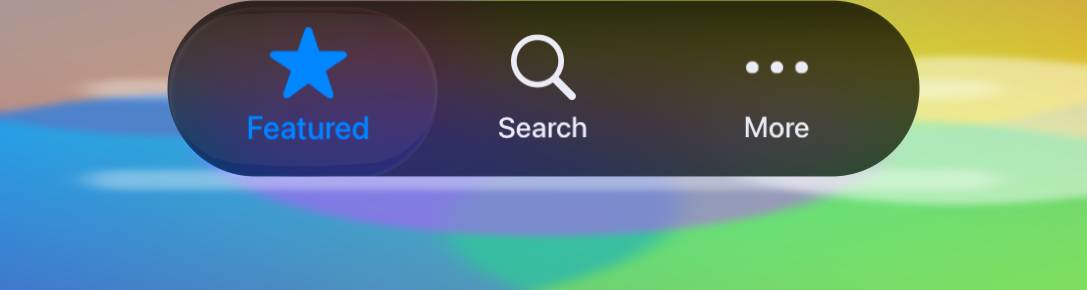

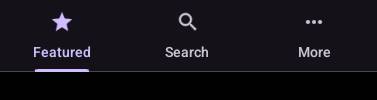

Tabs	normal	dark	normal	95.2%	0.913	3.65	ok
RadioButton	disabled	dark	normal	95.3%	0.963	1.18	ok
RadioButton	selected	light	normal	95.3%	0.964	1.84	ok

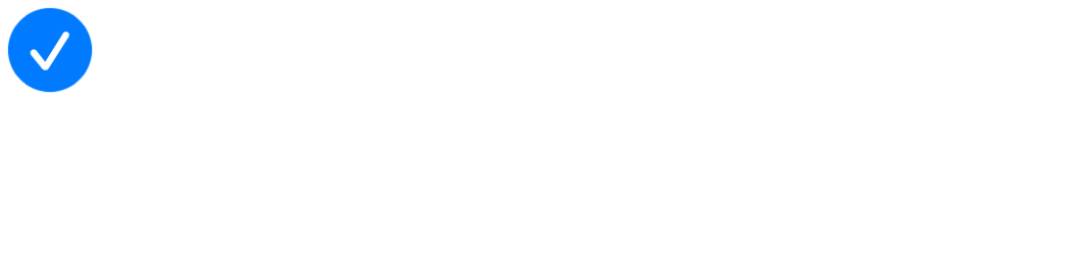

CheckBox	selected	light	normal	95.4%	0.952	2.06	ok

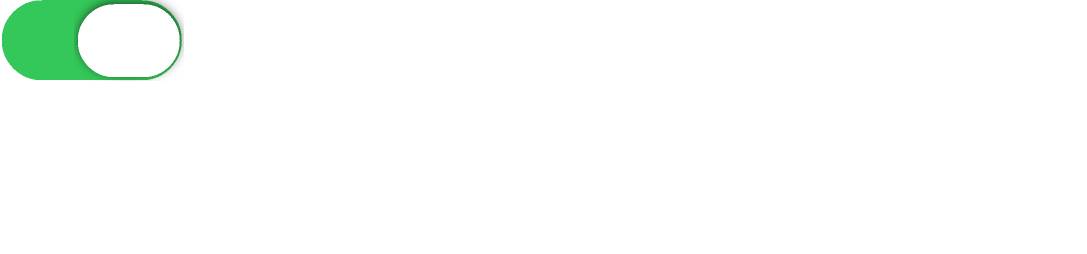

Switch	selected	light	normal	95.4%	0.966	1.59	ok
Switch	selected	dark	normal	95.5%	0.966	1.86	ok

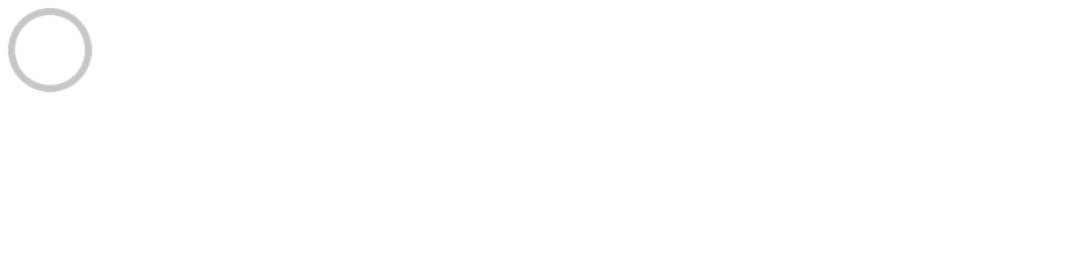

RadioButton	disabled	light	normal	95.5%	0.966	1.08	ok
Switch	disabled	dark	normal	95.6%	0.961	0.85	ok

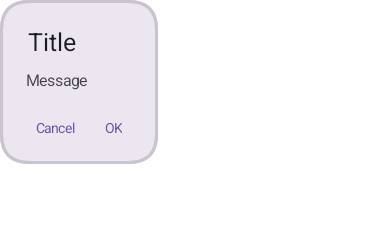

Dialog	normal	light	normal	95.7%	0.930	2.30	ok

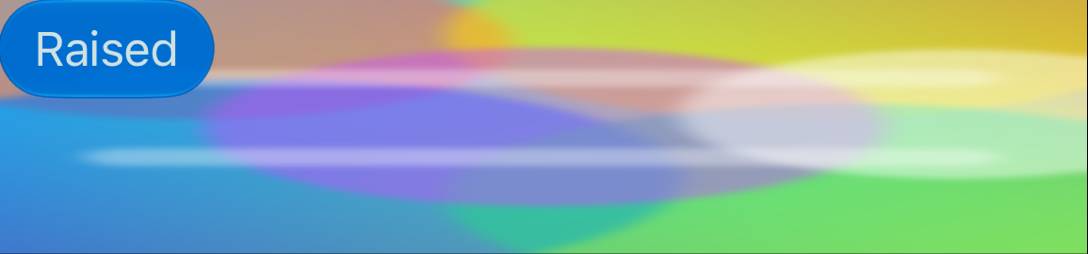

RaisedButton	pressed	light	normal	95.8%	0.958	2.16	ok

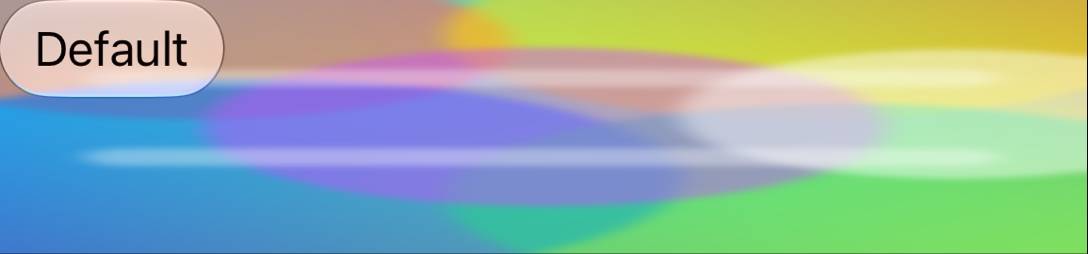

Button	normal	light	normal	95.8%	0.953	2.46	ok

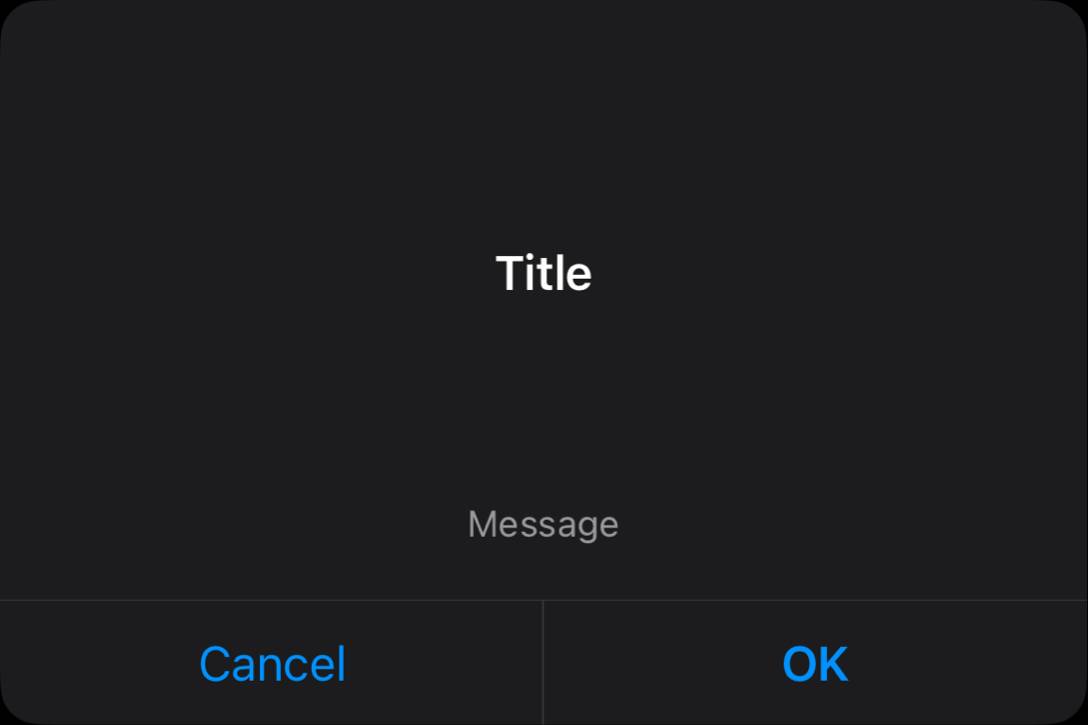

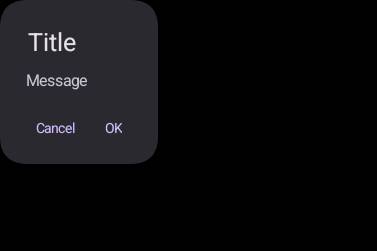

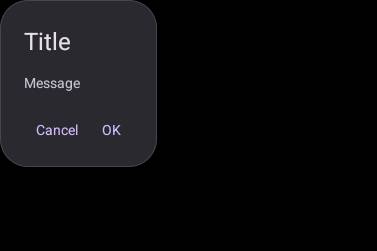

Dialog	normal	dark	normal	95.8%	0.932	2.30	ok
Switch	normal	light	normal	96.0%	0.961	1.45	ok
FloatingActionButton	normal	light	normal	96.1%	0.937	1.14	ok
FloatingActionButton	pressed	dark	normal	96.2%	0.951	2.45	ok

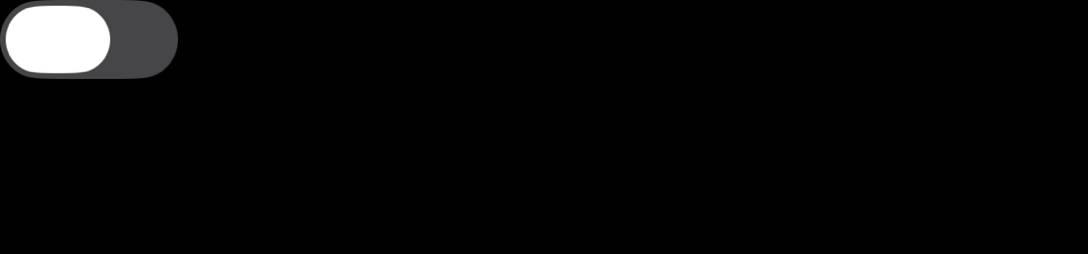

Switch	normal	dark	normal	96.2%	0.962	1.39	ok

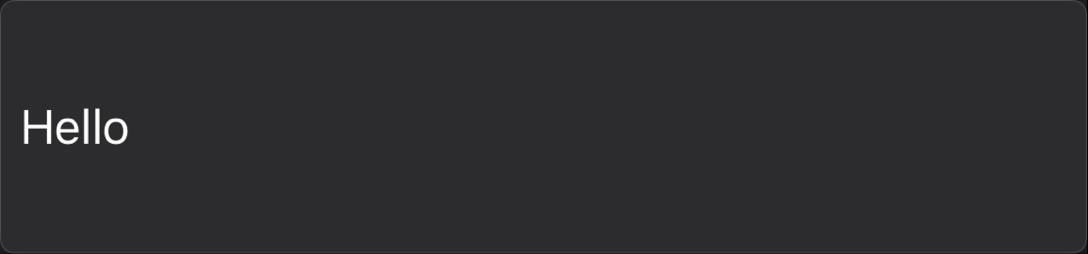

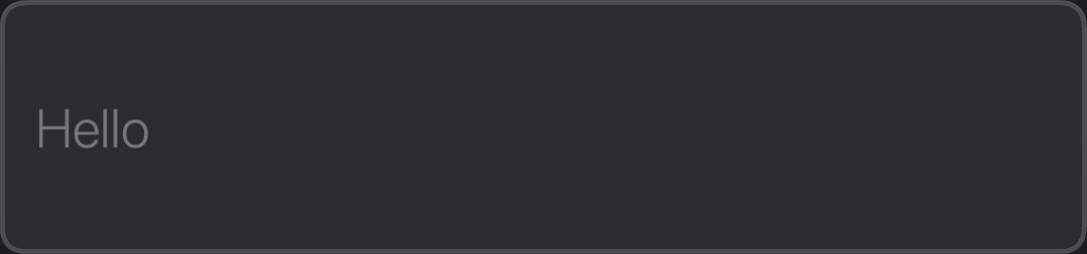

TextField	disabled	dark	normal	96.2%	0.965	0.76	ok

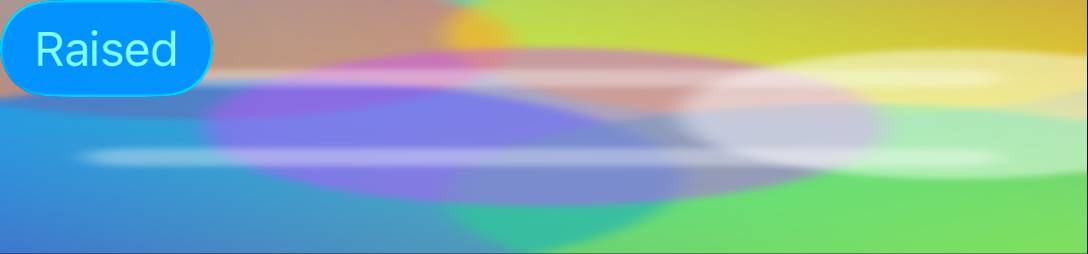

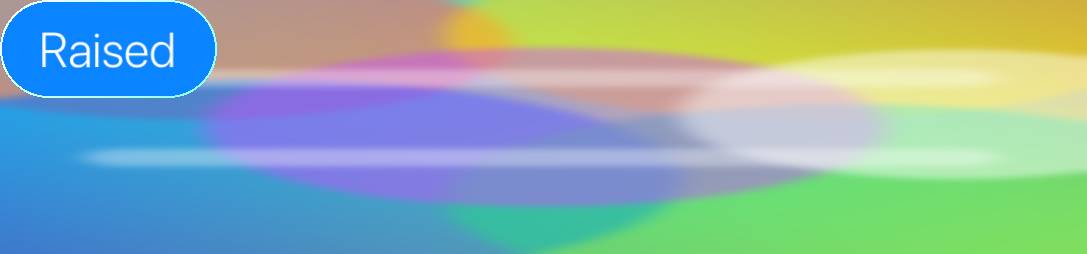

RaisedButton	normal	dark	normal	96.4%	0.952	1.78	ok

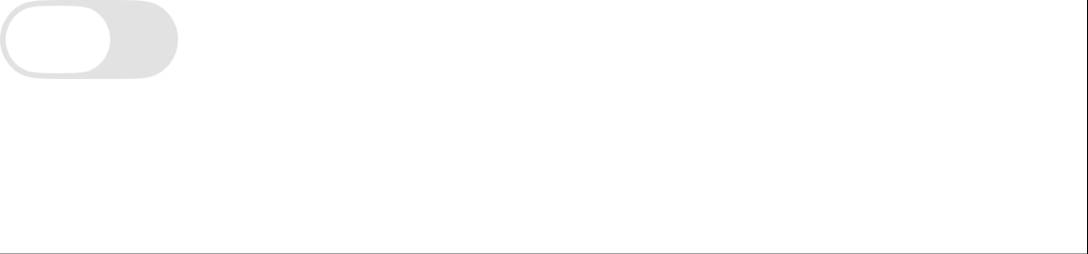

Switch	disabled	light	normal	96.4%	0.970	0.61	ok
Button	disabled	light	normal	96.8%	0.960	1.06	ok
ProgressBar	normal	dark	normal	96.9%	0.967	2.03	OFF (h 1.50)

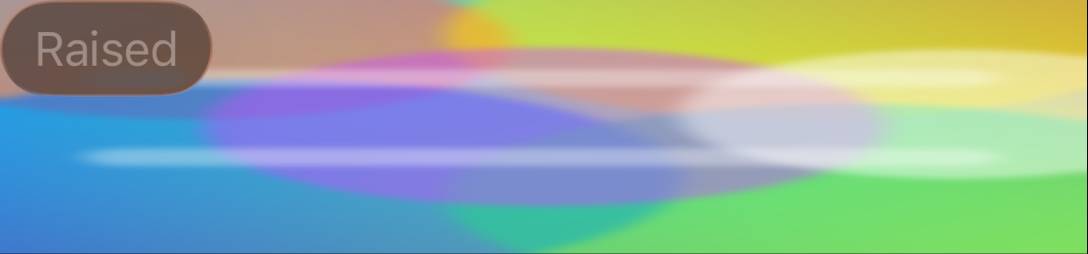

RaisedButton	disabled	dark	normal	97.0%	0.955	0.89	ok
FloatingActionButton	normal	dark	normal	97.1%	0.952	1.43	ok

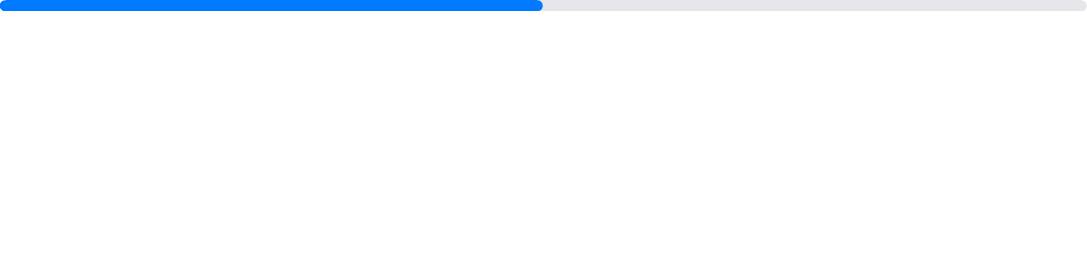

ProgressBar	normal	light	normal	97.3%	0.974	1.53	OFF (h 1.50)
RaisedButton	disabled	light	normal	97.3%	0.961	0.79	ok

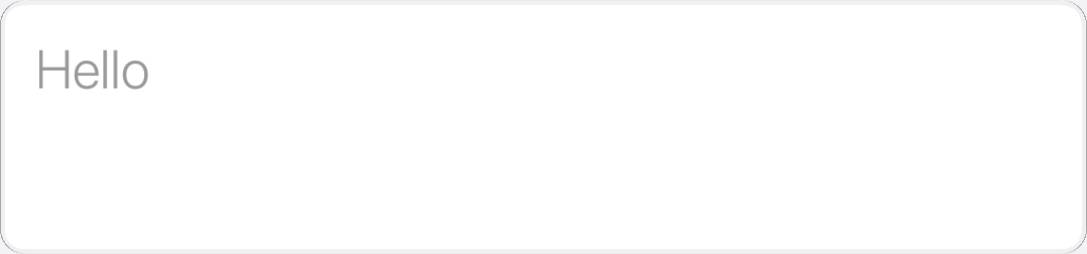

TextField	disabled	light	normal	97.3%	0.965	0.79	ok
RaisedButton	normal	light	normal	97.3%	0.961	1.40	ok

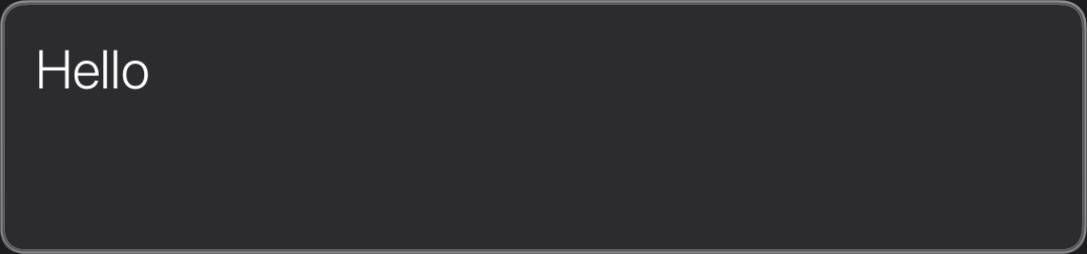

TextField	normal	dark	normal	97.6%	0.958	1.83	ok

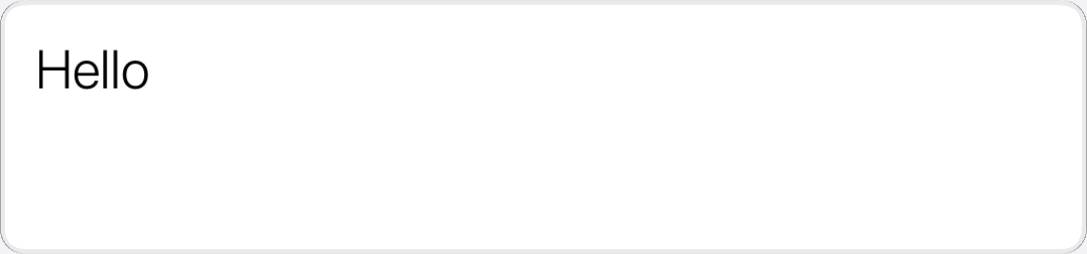

TextField	normal	light	normal	97.6%	0.958	1.63	ok

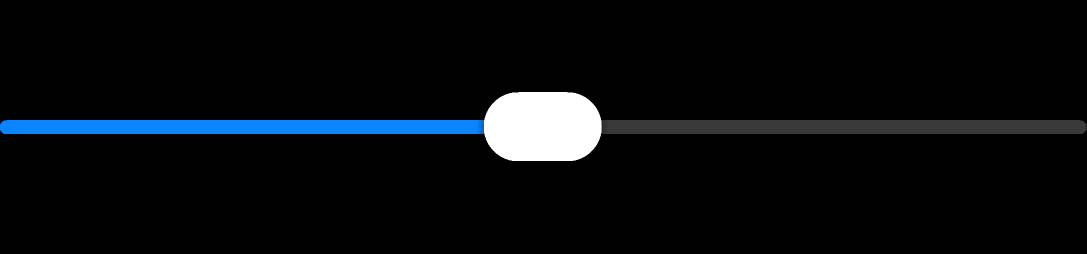

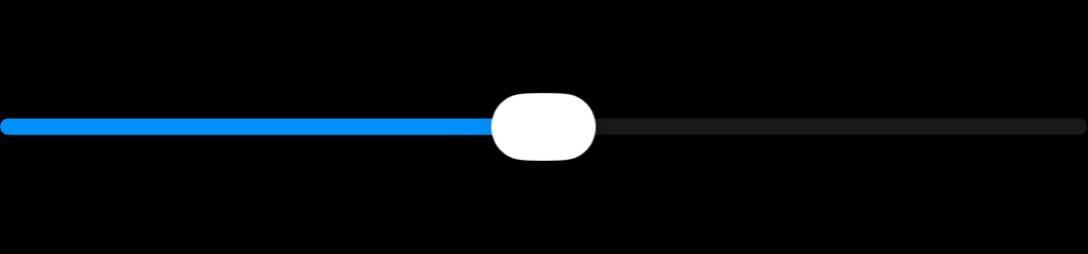

Slider	normal	dark	normal	98.4%	0.990	0.87	ok

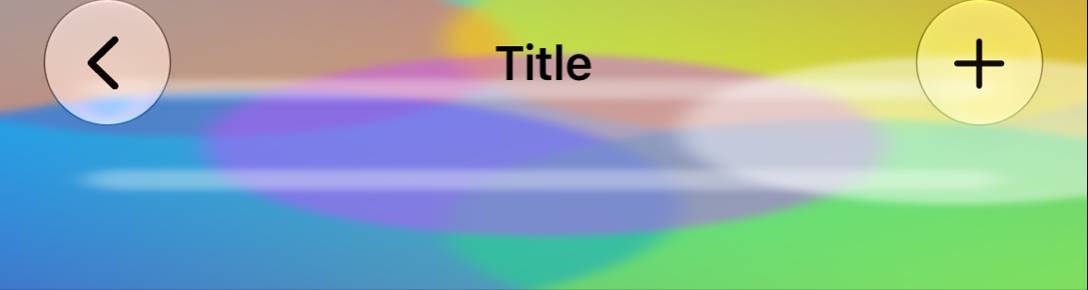

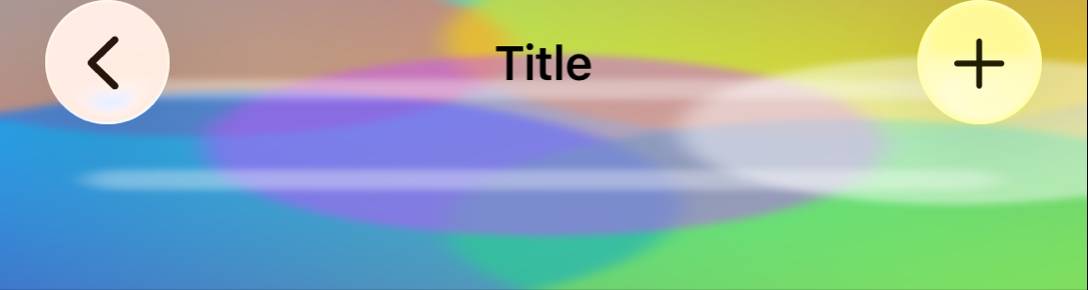

Toolbar	normal	light	normal	98.7%	0.974	1.28	ok
Slider	normal	light	normal	99.0%	0.991	0.47	ok

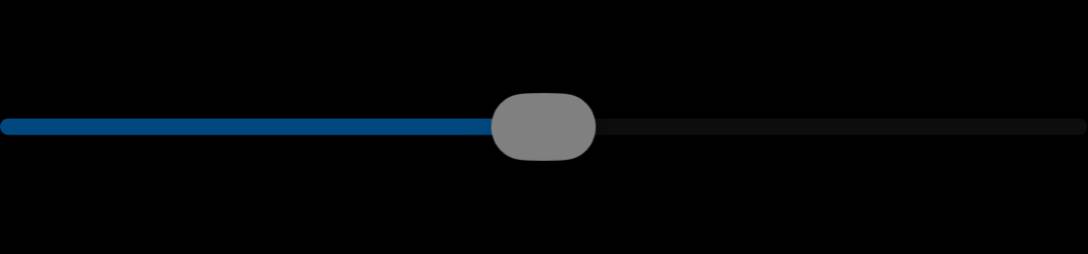

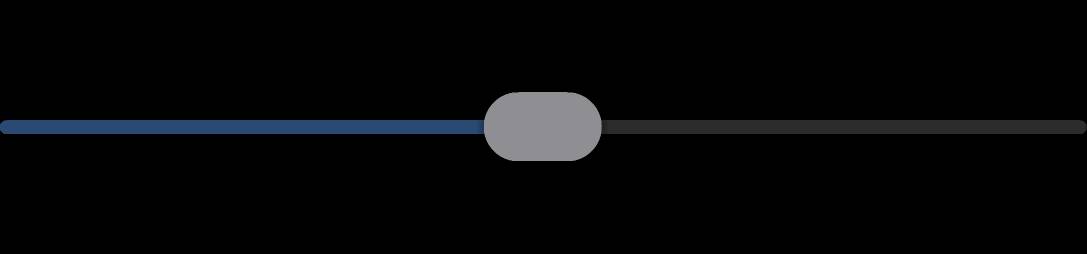

Slider	disabled	dark	normal	99.6%	0.993	0.22	ok

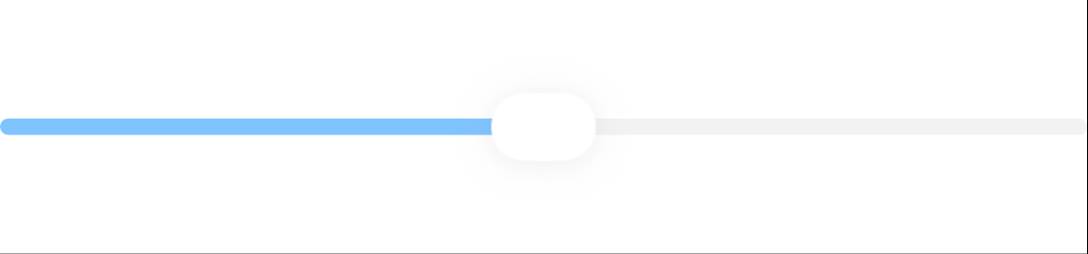

Slider	disabled	light	normal	99.6%	0.993	0.18	ok

Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score

Component	State	Appearance	bbox dx,dy (px)	w ratio	h ratio	center off (px)	radius native->cn1 (px)
FloatingActionButton	pressed	light	+0,+0	0.929	0.881	4.0	-
FloatingActionButton	normal	light	+0,+0	0.946	0.912	2.9	-
Button	pressed	dark	+0,+0	0.947	0.975	2.6	-
Button	disabled	dark	+0,+0	0.947	0.975	2.6	-
Button	pressed	light	+0,+0	0.947	0.975	2.6	-
Button	normal	dark	+0,+0	0.947	0.975	2.6	-
RaisedButton	pressed	dark	+0,+0	0.945	0.975	2.6	-
RaisedButton	pressed	light	+0,+0	0.945	0.975	2.6	-
Button	normal	light	+0,+0	0.947	0.975	2.6	-
RaisedButton	normal	dark	+0,+0	0.945	0.975	2.6	-

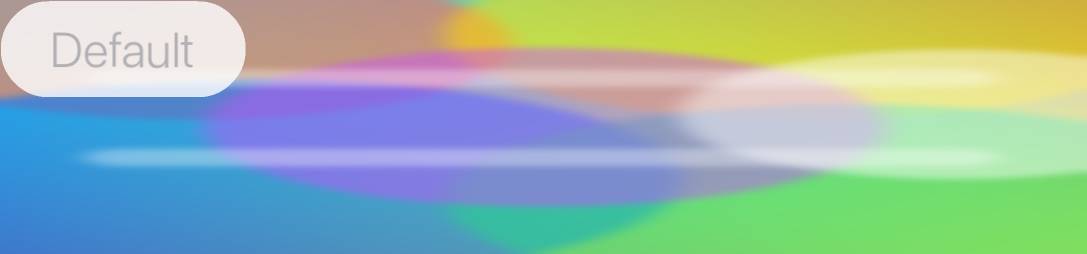

Button	disabled	light	+0,+0	0.947	0.975	2.6	-
RaisedButton	disabled	dark	+0,+0	0.945	0.975	2.6	-
RaisedButton	disabled	light	+0,+0	0.945	0.975	2.6	-
RaisedButton	normal	light	+0,+0	0.945	0.975	2.6	-
RadioButton	normal	dark	+1,+1	1.029	1.000	2.2	-
RadioButton	normal	light	+1,+1	1.029	1.000	2.2	-
RadioButton	selected	dark	+1,+1	1.029	1.000	2.2	-
RadioButton	disabled	dark	+1,+1	1.029	1.000	2.2	-
RadioButton	selected	light	+1,+1	1.029	1.000	2.2	-
Switch	selected	light	+0,+0	1.080	1.063	2.2	-
RadioButton	disabled	light	+1,+1	1.029	1.000	2.2	-
CheckBox	selected	dark	+1,+1	1.013	1.000	1.8	-
CheckBox	normal	dark	+1,+1	1.013	1.000	1.8	-
CheckBox	normal	light	+1,+1	1.013	1.000	1.8	-
CheckBox	disabled	dark	+1,+1	1.013	1.000	1.8	-
CheckBox	disabled	light	+1,+1	1.013	1.000	1.8	-
CheckBox	selected	light	+1,+1	1.013	1.000	1.8	-
Switch	selected	dark	+0,+0	1.060	1.031	1.6	-
Switch	disabled	dark	+0,-1	1.060	1.031	1.6	-

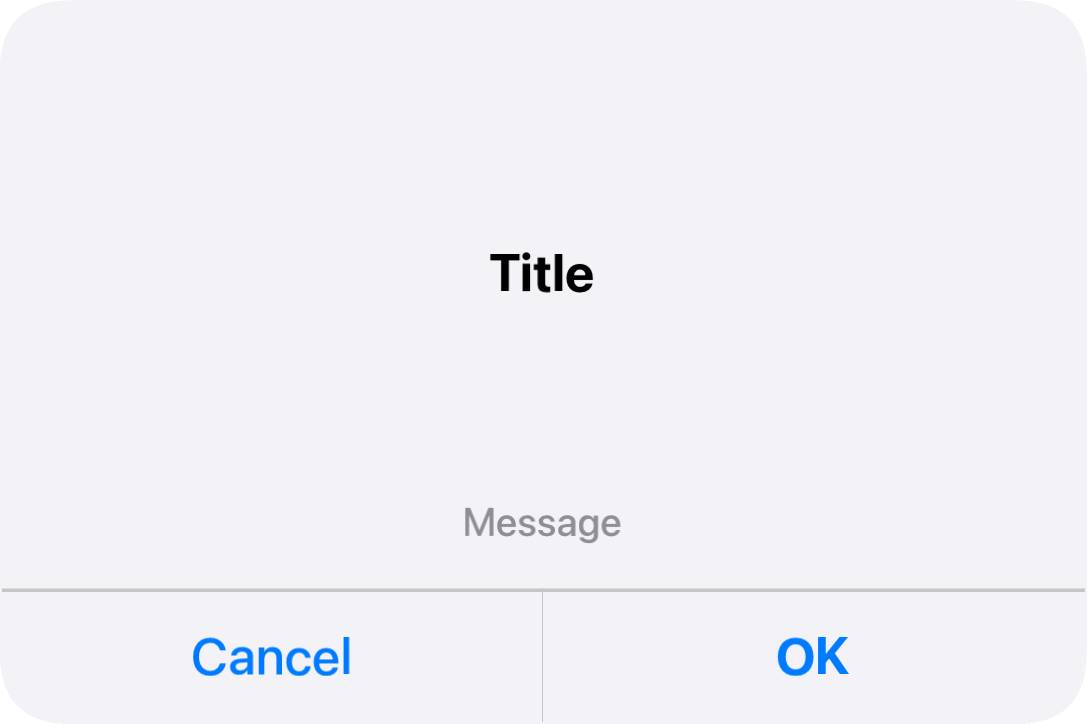

Dialog	normal	light	+0,+0	1.007	0.982	1.6	-
Dialog	normal	dark	+0,+0	1.007	0.982	1.6	-
Switch	normal	light	+0,-1	1.060	1.031	1.6	-
Switch	normal	dark	+0,-1	1.060	1.031	1.6	-
Switch	disabled	light	+0,-1	1.060	1.031	1.6	-
FloatingActionButton	pressed	dark	+0,+0	0.963	0.963	1.4	-
FloatingActionButton	normal	dark	+0,+0	0.963	0.963	1.4	-
Toolbar	normal	light	-1,+1	1.000	1.000	1.4	-
FlatButton	pressed	dark	+0,+0	0.977	0.975	1.1	-
FlatButton	normal	dark	+0,+0	0.977	0.975	1.1	-
FlatButton	normal	light	+0,+0	0.977	0.975	1.1	-
FlatButton	pressed	light	+0,+0	0.977	0.975	1.1	-
TextField	normal	dark	+0,+0	1.015	1.036	1.1	-

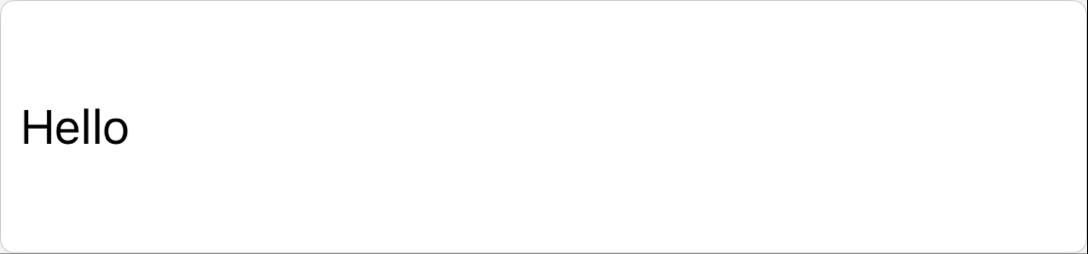

TextField	normal	light	+0,+0	1.015	1.036	1.1	-
Toolbar	normal	dark	+0,+0	1.000	1.032	1.0	-

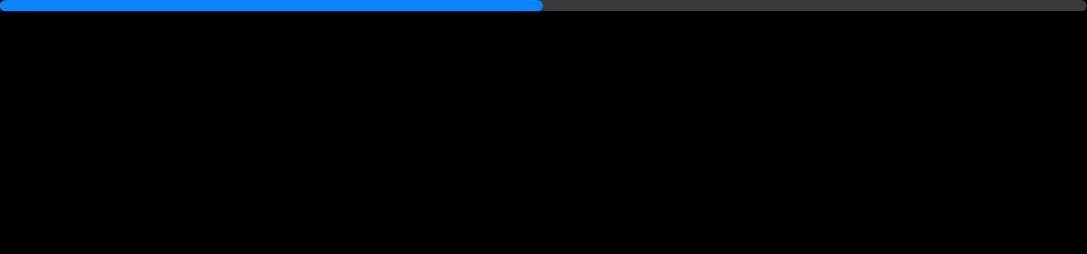

ProgressBar	normal	dark	+0,+0	1.000	1.500	1.0	-
ProgressBar	normal	light	+0,+0	1.000	1.500	1.0	-
TextField	disabled	dark	+0,+0	1.015	1.018	0.7	-
TextField	disabled	light	+0,+0	1.015	1.018	0.7	-
Tabs	normal	light	+0,+1	1.000	0.984	0.5	-
Slider	normal	dark	+1,+0	0.996	1.000	0.5	-
Slider	normal	light	+1,+0	0.996	1.000	0.5	-
Tabs	normal	dark	+0,+0	1.000	1.000	0.0	-
Slider	disabled	dark	+0,+0	1.000	1.000	0.0	-
Slider	disabled	light	+0,+0	1.000	1.000	0.0	-

Side-by-side comparisons (worst first)

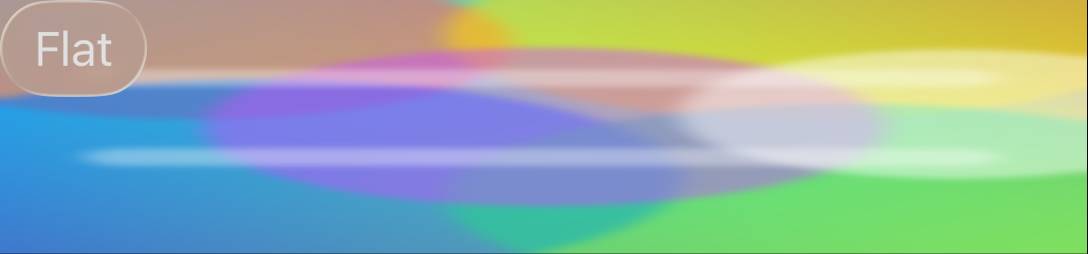

FlatButton_pressed_dark -- 91.25% fidelity (SSIM 0.8985) (no change)

Left: native widget. Right: Codename One render.

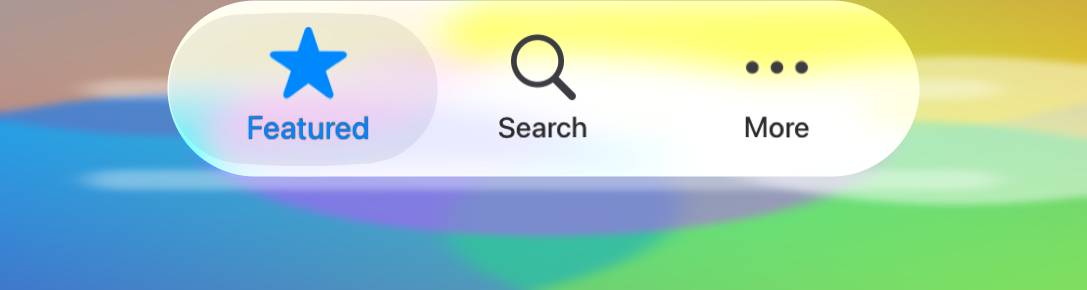

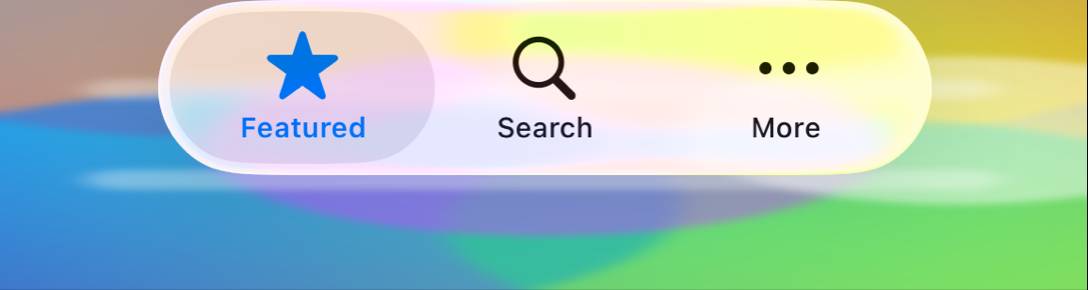

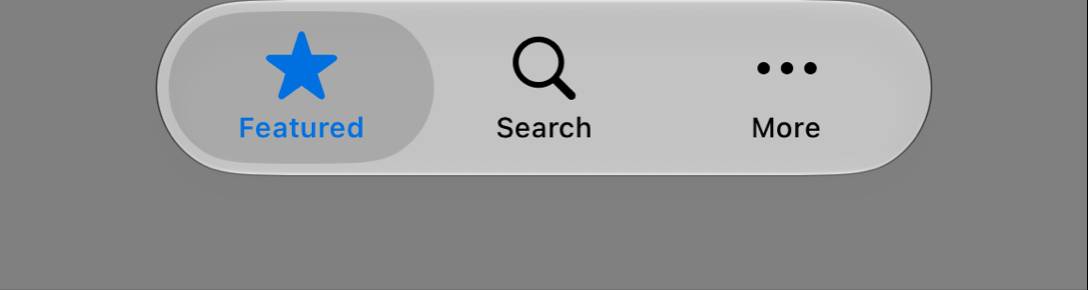

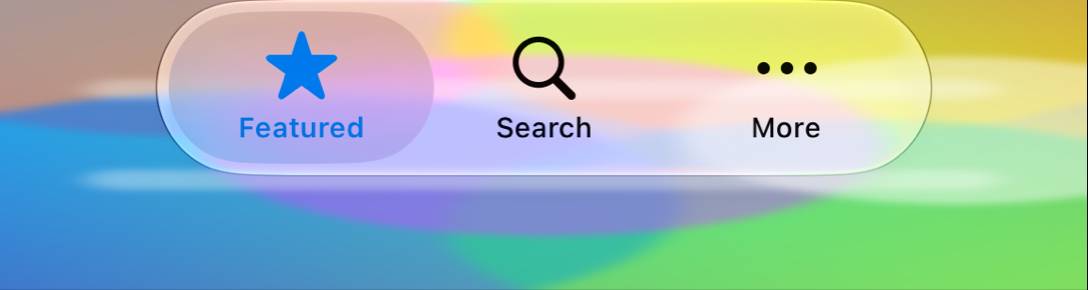

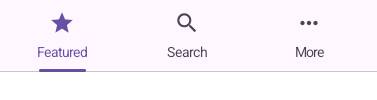

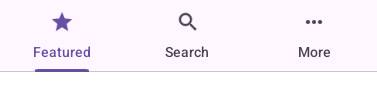

Tabs_normal_light -- 92.28% fidelity (SSIM 0.9140) (no change)

Left: native widget. Right: Codename One render.

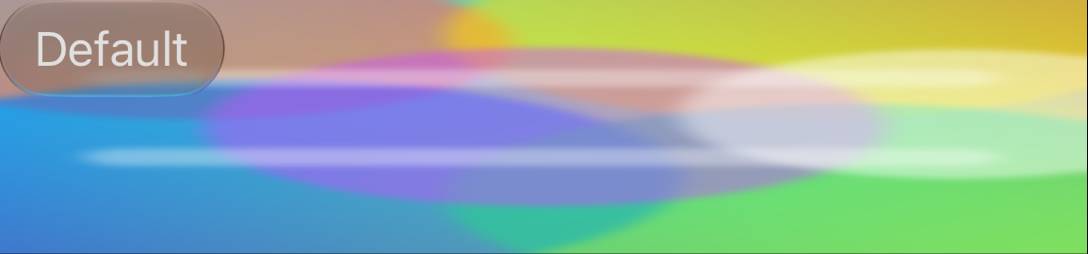

Button_pressed_dark -- 92.61% fidelity (SSIM 0.9485) (no change)

Left: native widget. Right: Codename One render.

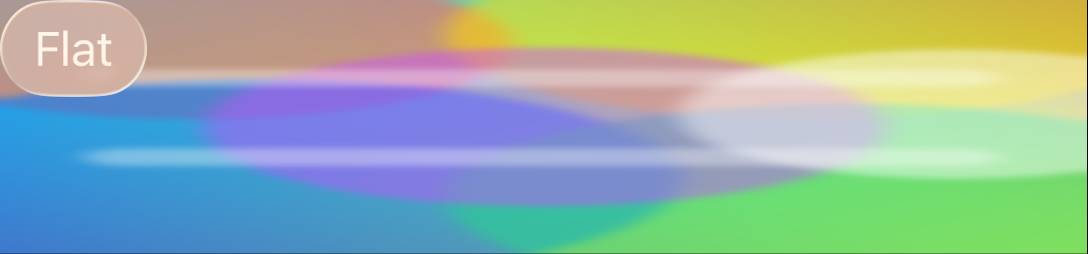

FlatButton_normal_dark -- 93.24% fidelity (SSIM 0.9381) (no change)

Left: native widget. Right: Codename One render.

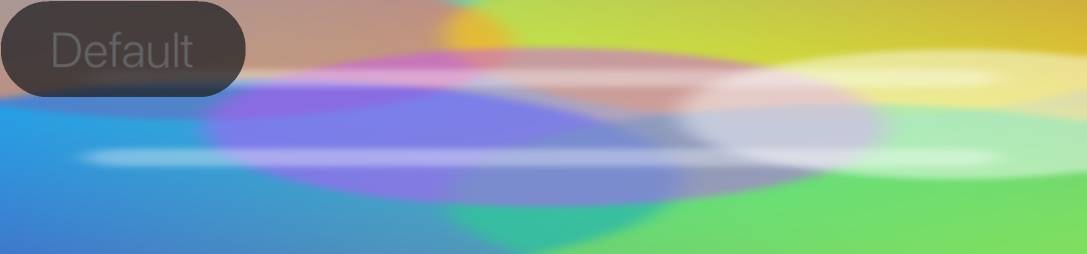

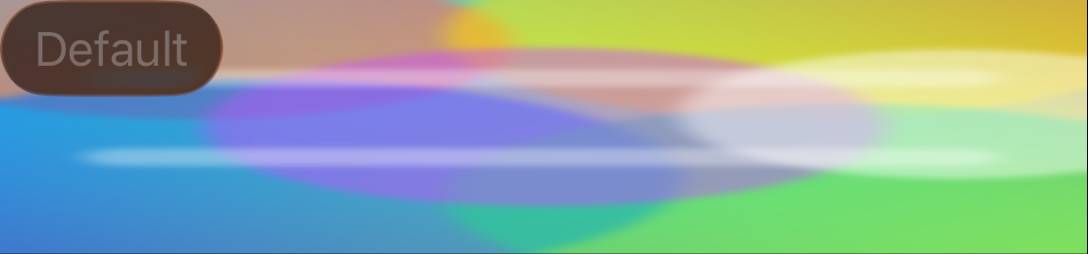

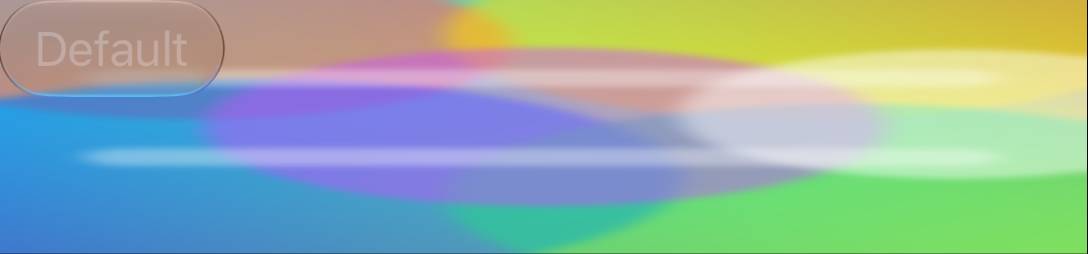

Button_disabled_dark -- 93.26% fidelity (SSIM 0.9278) (no change)

Left: native widget. Right: Codename One render.

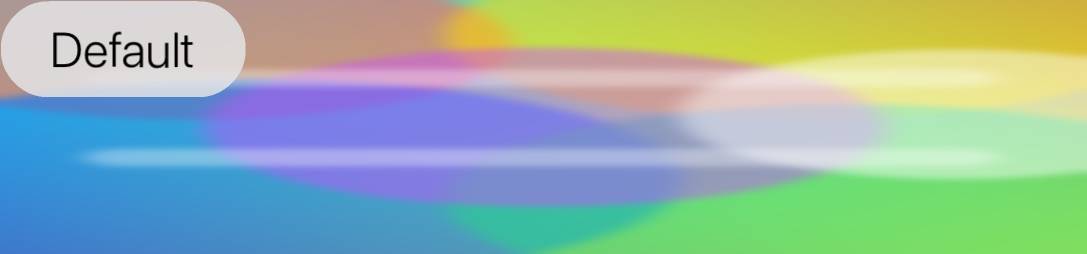

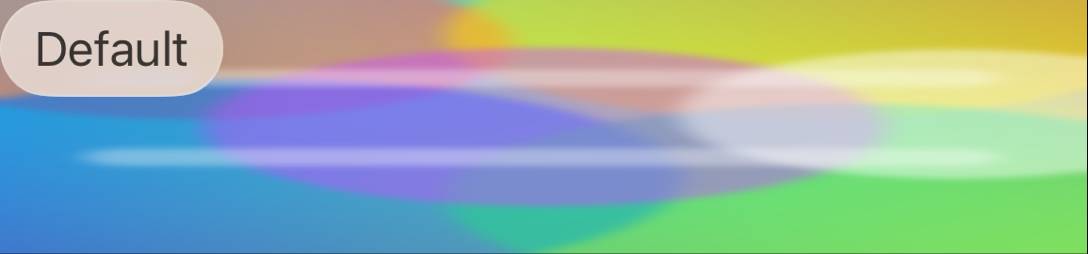

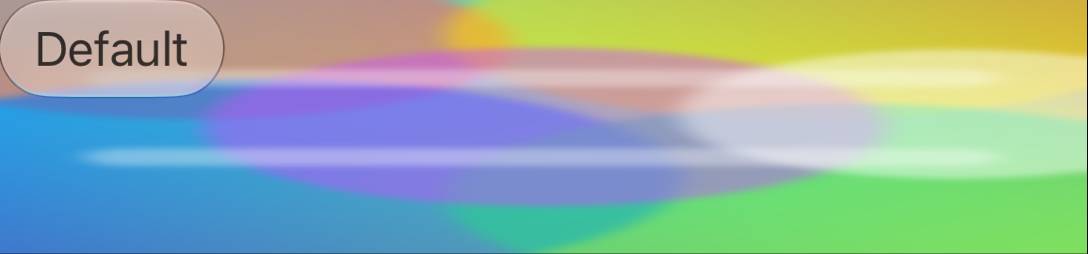

Button_pressed_light -- 93.34% fidelity (SSIM 0.9521) (no change)

Left: native widget. Right: Codename One render.

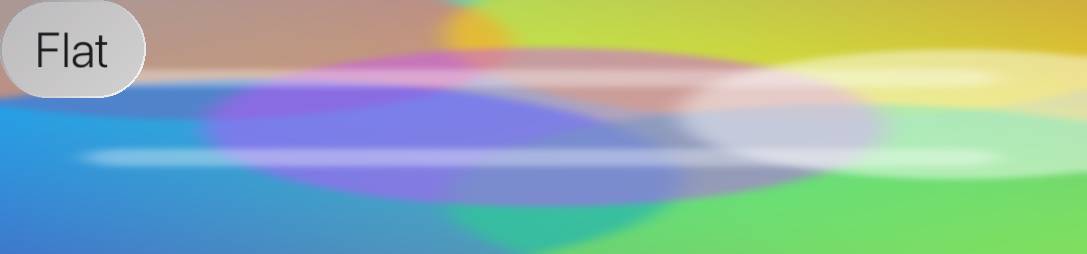

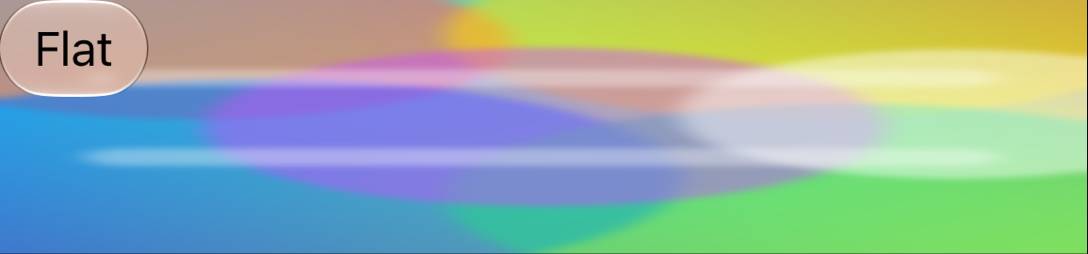

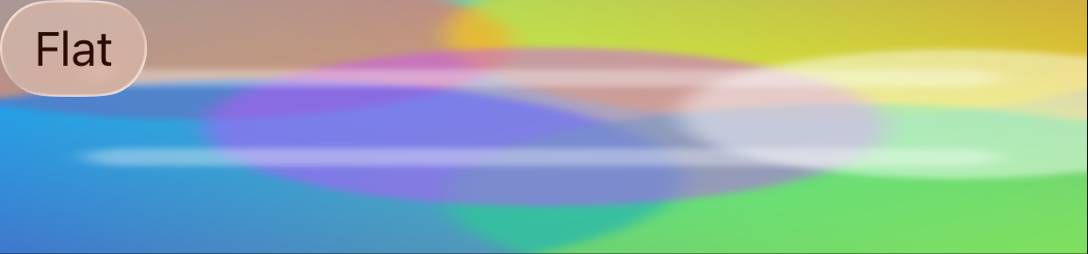

FlatButton_normal_light -- 93.72% fidelity (SSIM 0.9410) (no change)

Left: native widget. Right: Codename One render.

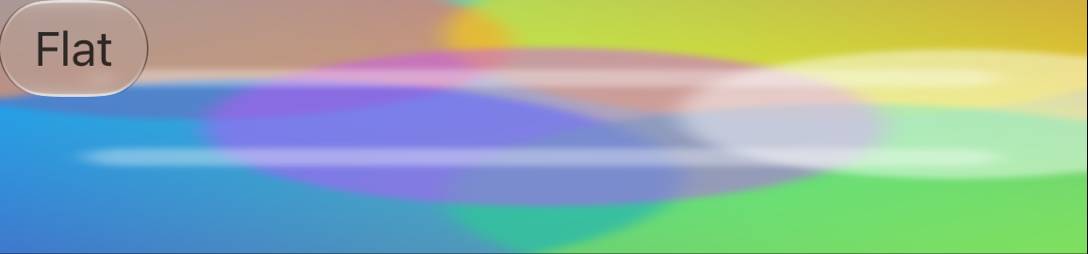

FlatButton_pressed_light -- 93.77% fidelity (SSIM 0.9424) (no change)

Left: native widget. Right: Codename One render.
FloatingActionButton_pressed_light -- 94.44% fidelity (SSIM 0.9273) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_dark -- 94.46% fidelity (SSIM 0.9630) (no change)

Left: native widget. Right: Codename One render.

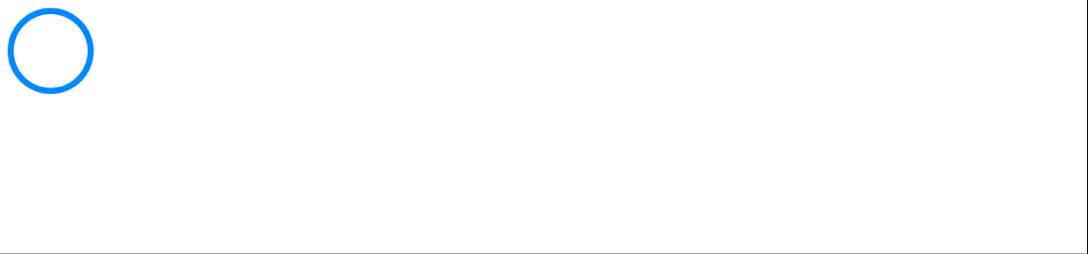

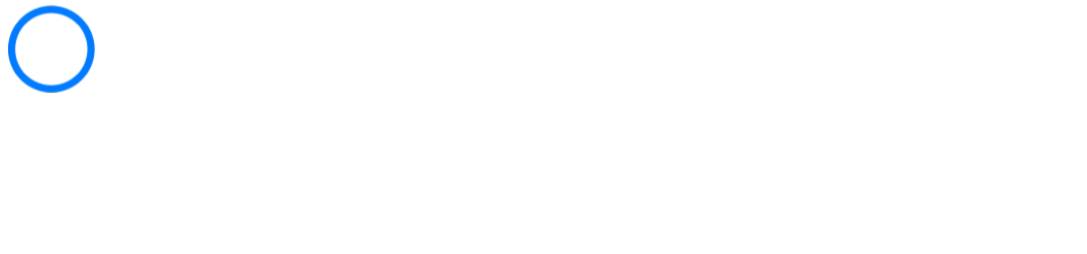

RadioButton_normal_light -- 94.69% fidelity (SSIM 0.9643) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_dark -- 94.71% fidelity (SSIM 0.9502) (no change)

Left: native widget. Right: Codename One render.

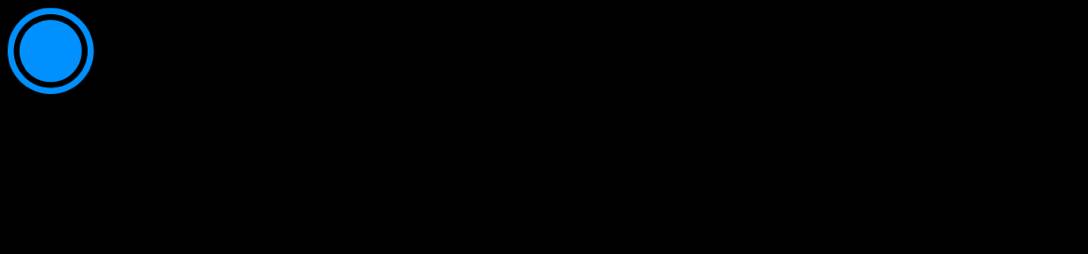

RadioButton_selected_dark -- 94.79% fidelity (SSIM 0.9630) (no change)

Left: native widget. Right: Codename One render.

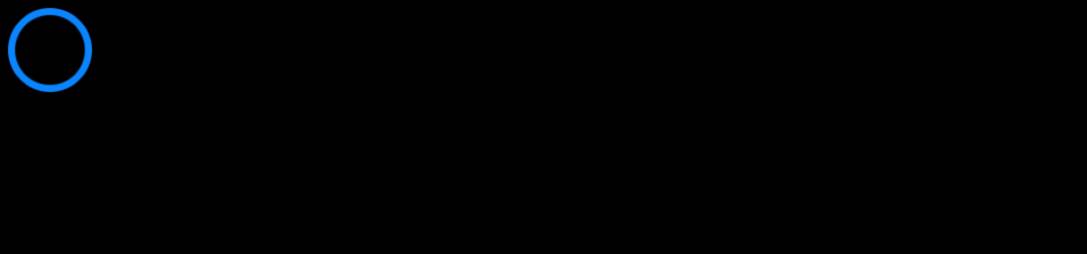

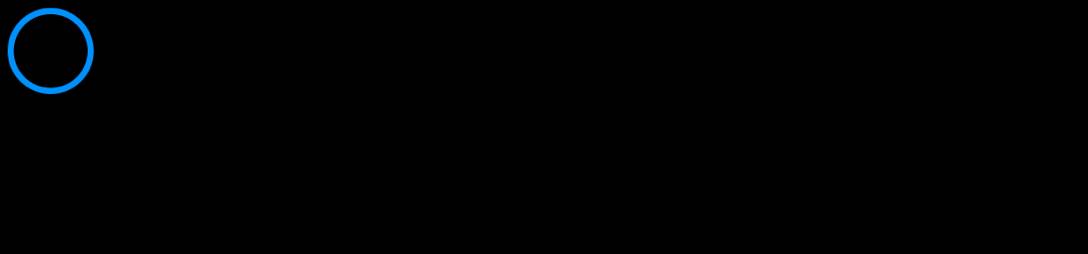

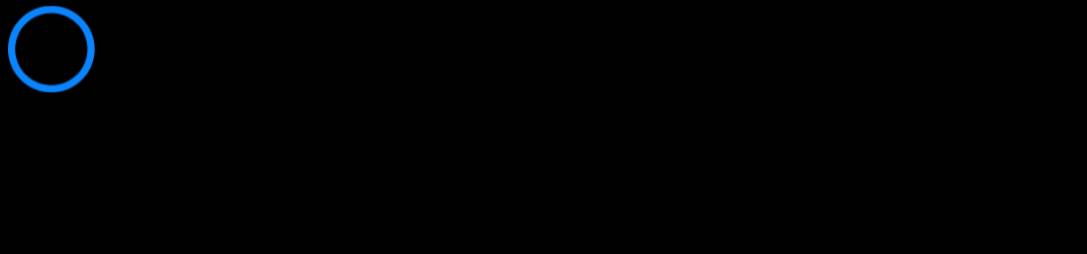

CheckBox_normal_dark -- 94.93% fidelity (SSIM 0.9516) (no change)

Left: native widget. Right: Codename One render.

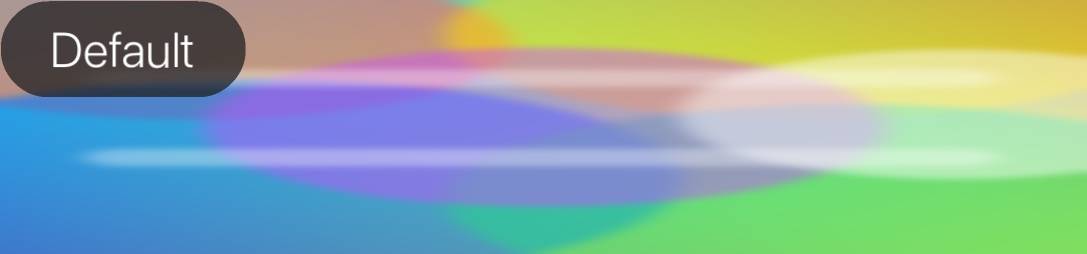

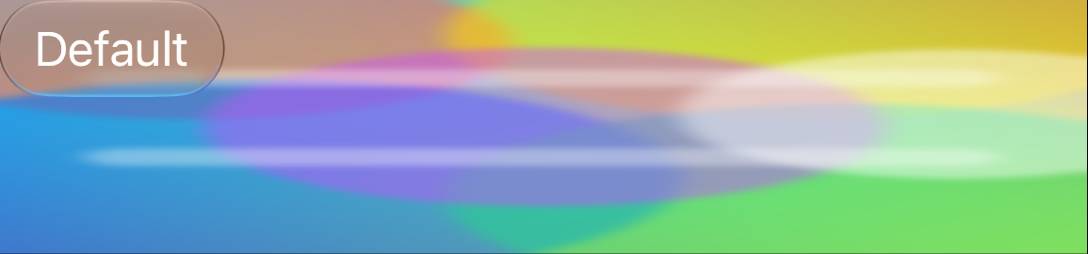

Button_normal_dark -- 94.94% fidelity (SSIM 0.9491) (no change)

Left: native widget. Right: Codename One render.
CheckBox_normal_light -- 95.03% fidelity (SSIM 0.9531) (no change)

Left: native widget. Right: Codename One render.

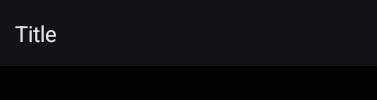

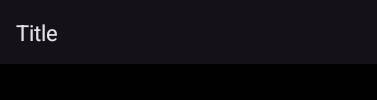

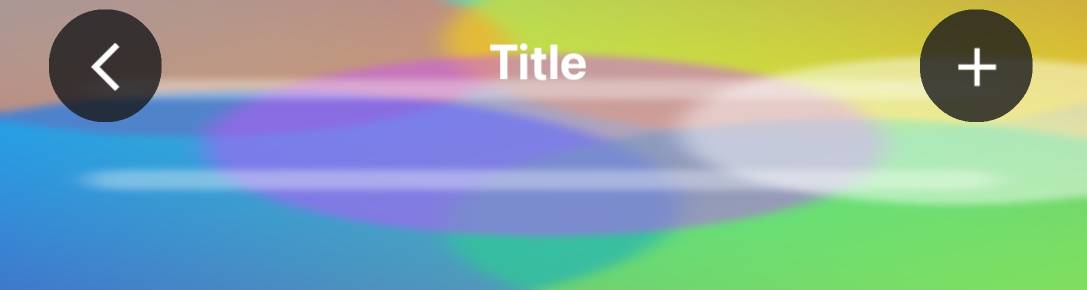

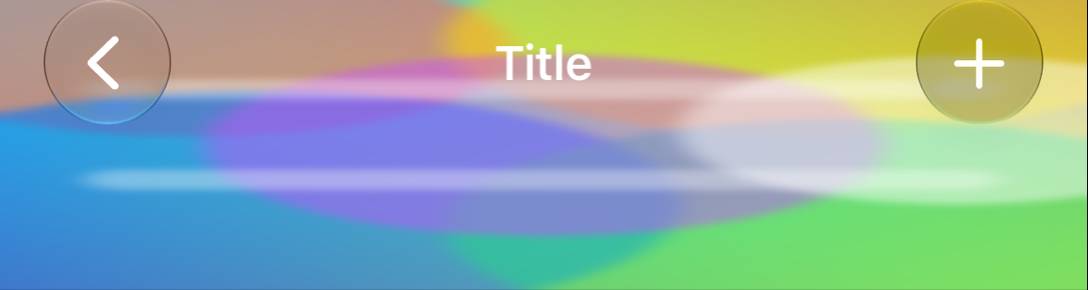

Toolbar_normal_dark -- 95.07% fidelity (SSIM 0.9059) (no change)

Left: native widget. Right: Codename One render.

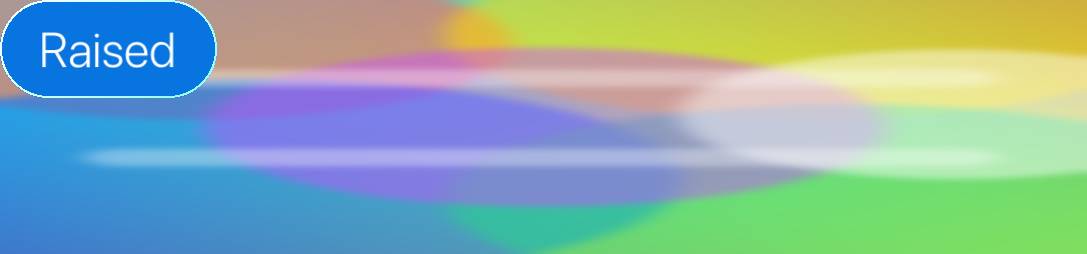

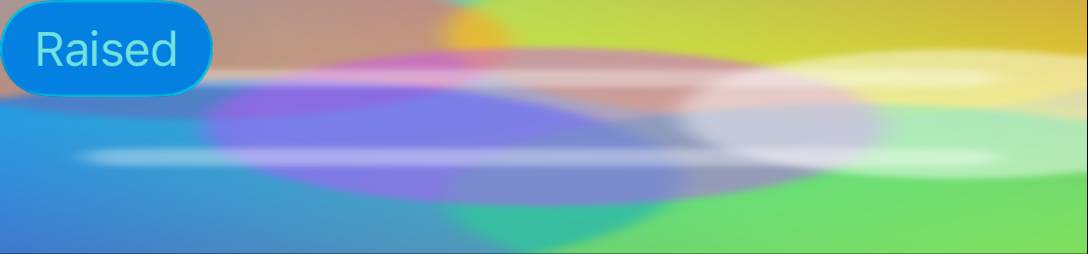

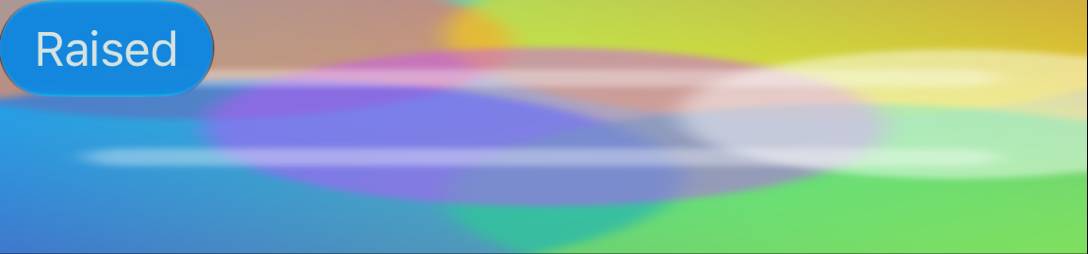

RaisedButton_pressed_dark -- 95.19% fidelity (SSIM 0.9501) (no change)

Left: native widget. Right: Codename One render.

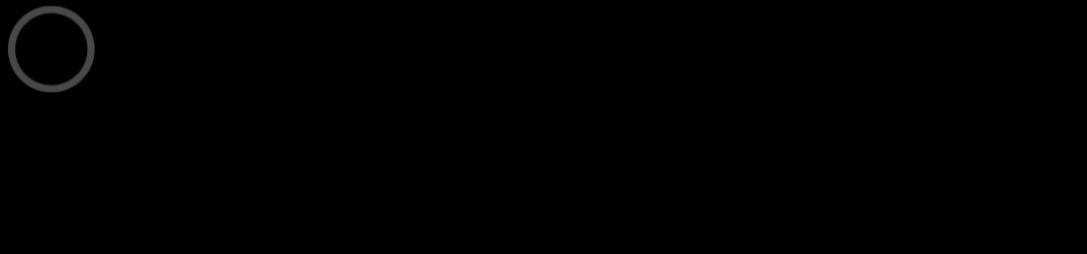

CheckBox_disabled_dark -- 95.20% fidelity (SSIM 0.9538) (no change)

Left: native widget. Right: Codename One render.

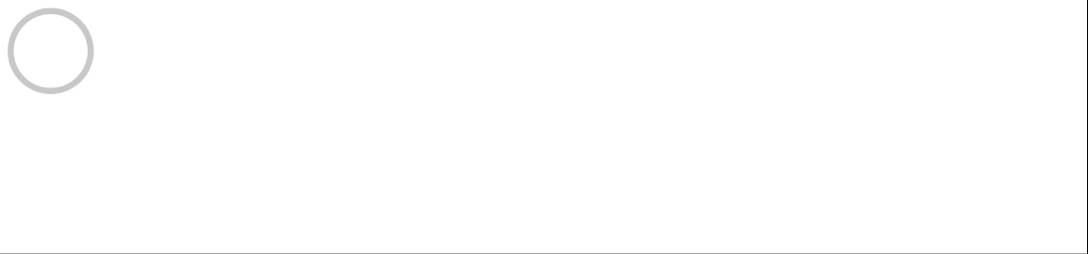

CheckBox_disabled_light -- 95.21% fidelity (SSIM 0.9562) (no change)

Left: native widget. Right: Codename One render.

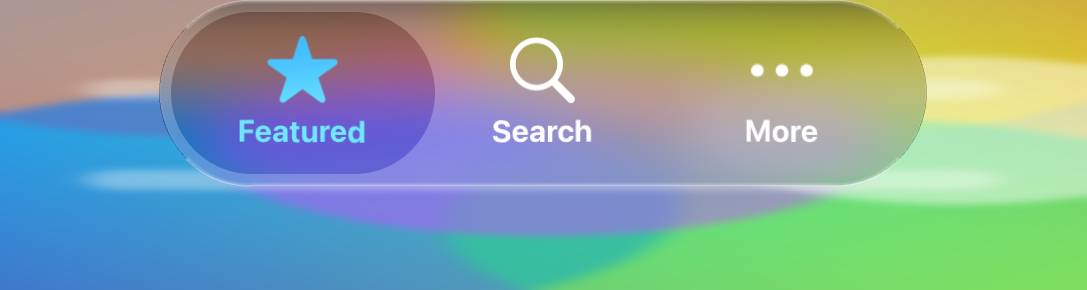

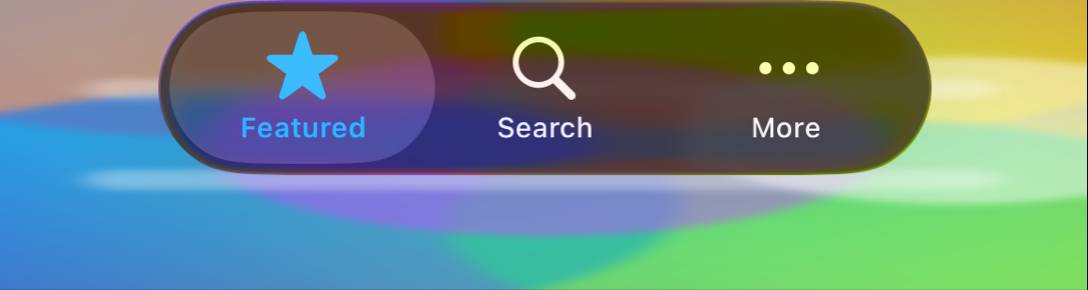

Tabs_normal_dark -- 95.23% fidelity (SSIM 0.9125) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_dark -- 95.29% fidelity (SSIM 0.9630) (no change)

Left: native widget. Right: Codename One render.
RadioButton_selected_light -- 95.33% fidelity (SSIM 0.9642) (no change)

Left: native widget. Right: Codename One render.

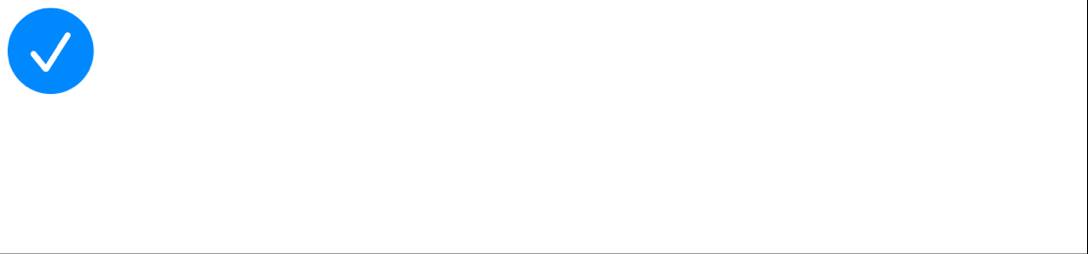

CheckBox_selected_light -- 95.37% fidelity (SSIM 0.9524) (no change)

Left: native widget. Right: Codename One render.

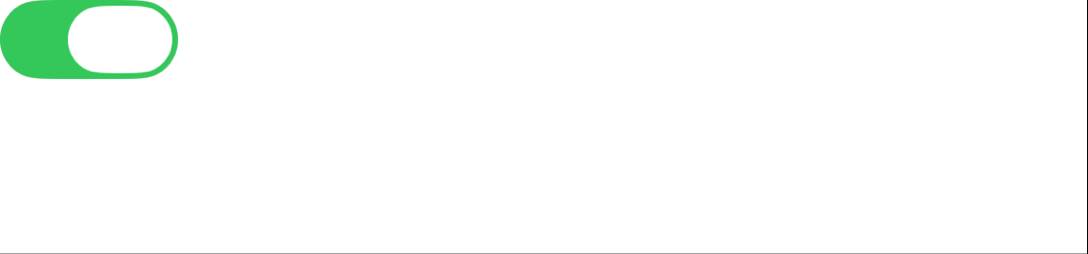

Switch_selected_light -- 95.37% fidelity (SSIM 0.9658) (no change)

Left: native widget. Right: Codename One render.

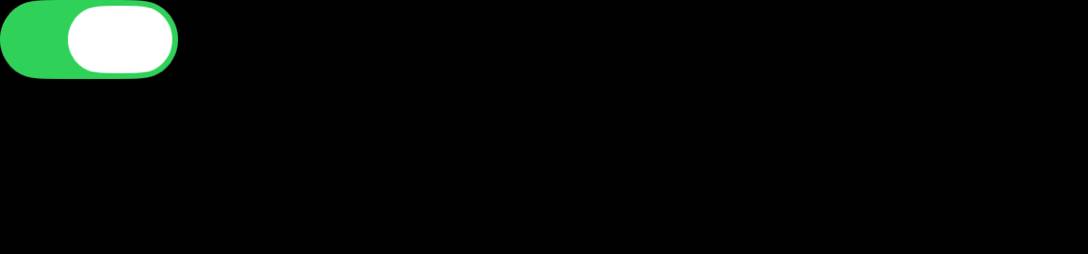

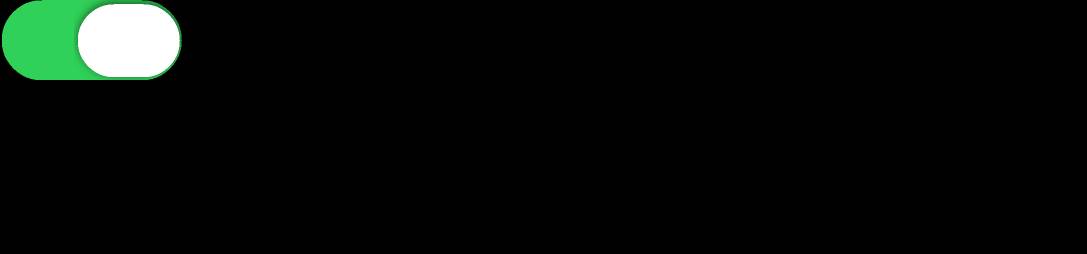

Switch_selected_dark -- 95.45% fidelity (SSIM 0.9656) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_light -- 95.46% fidelity (SSIM 0.9657) (no change)

Left: native widget. Right: Codename One render.
Switch_disabled_dark -- 95.57% fidelity (SSIM 0.9613) (no change)

Left: native widget. Right: Codename One render.

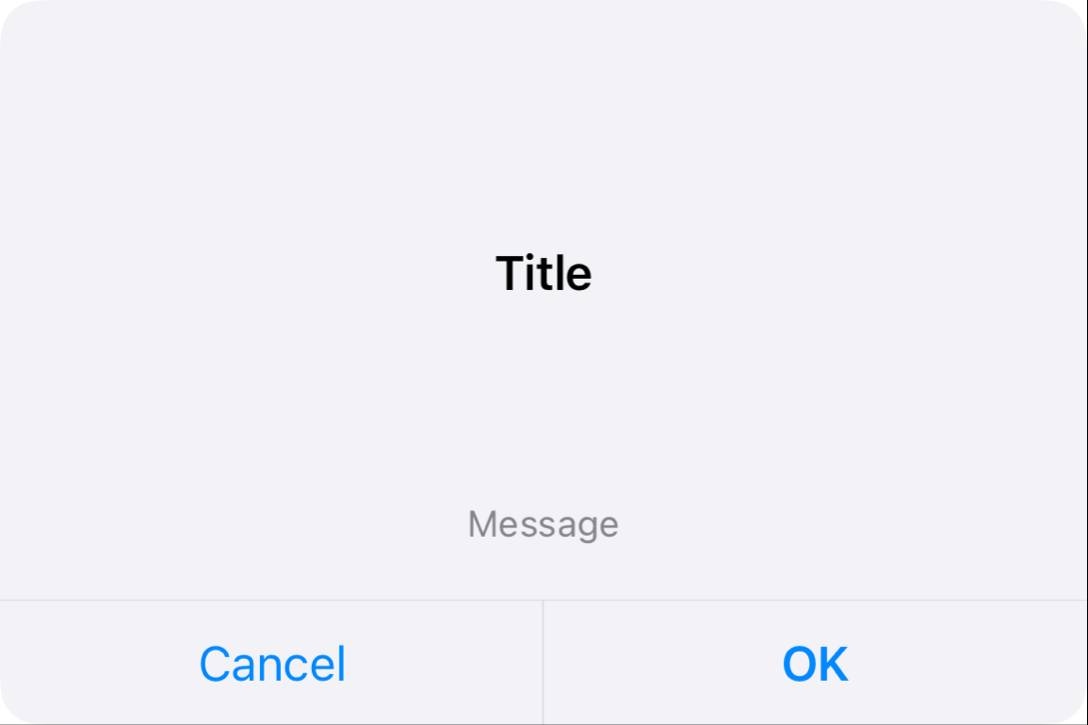

Dialog_normal_light -- 95.65% fidelity (SSIM 0.9300) (no change)

Left: native widget. Right: Codename One render.

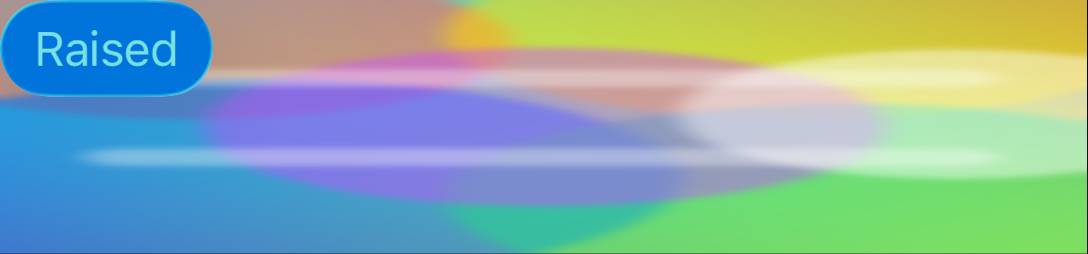

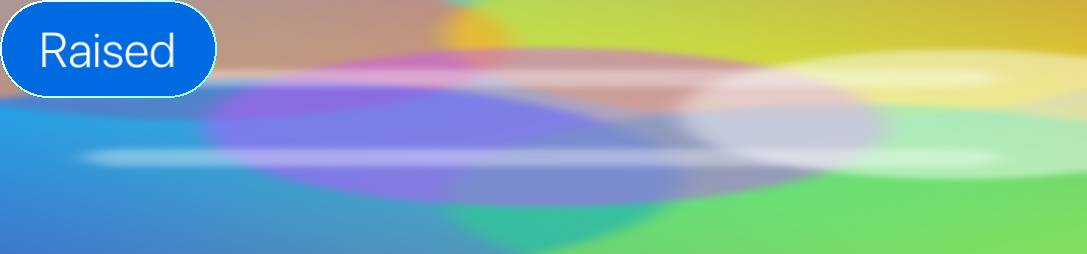

RaisedButton_pressed_light -- 95.78% fidelity (SSIM 0.9578) (no change)

Left: native widget. Right: Codename One render.

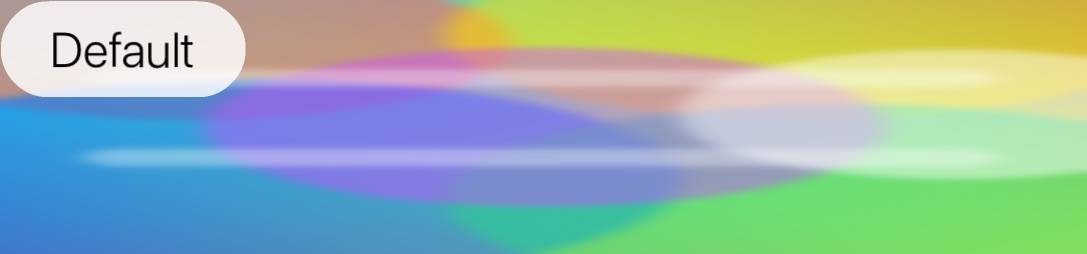

Button_normal_light -- 95.79% fidelity (SSIM 0.9528) (no change)

Left: native widget. Right: Codename One render.

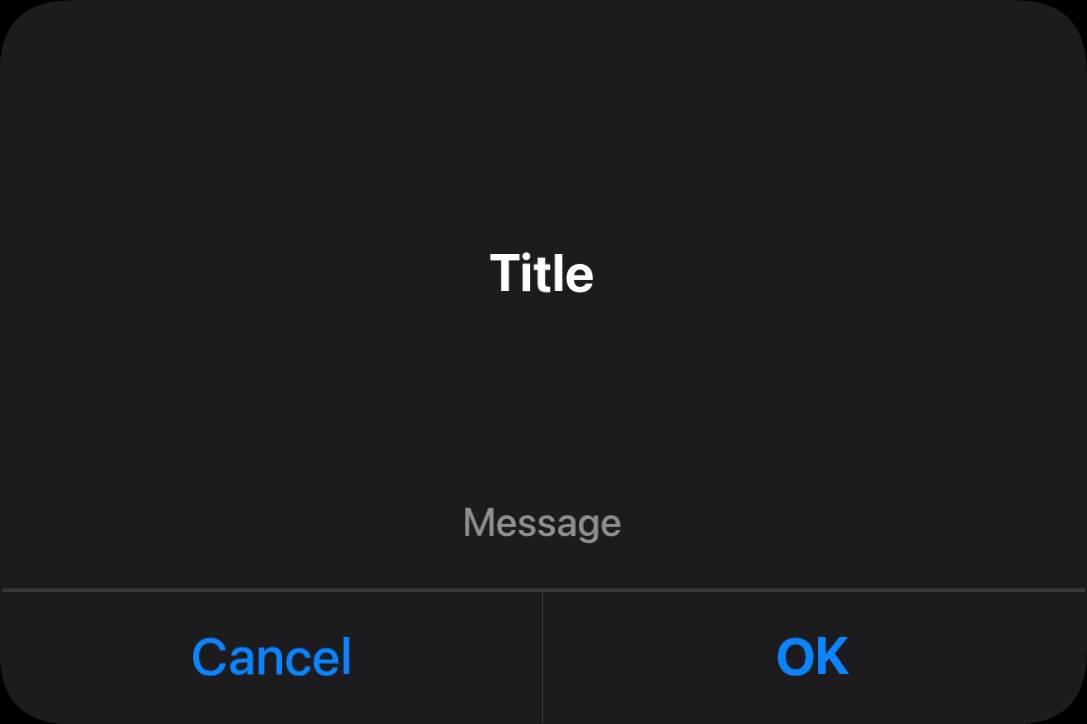

Dialog_normal_dark -- 95.79% fidelity (SSIM 0.9322) (no change)

Left: native widget. Right: Codename One render.

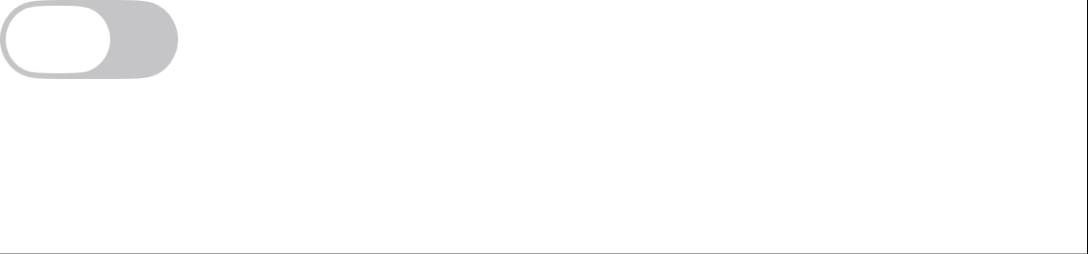

Switch_normal_light -- 95.97% fidelity (SSIM 0.9612) (no change)

Left: native widget. Right: Codename One render.
FloatingActionButton_normal_light -- 96.09% fidelity (SSIM 0.9367) (no change)

Left: native widget. Right: Codename One render.
FloatingActionButton_pressed_dark -- 96.16% fidelity (SSIM 0.9513) (no change)

Left: native widget. Right: Codename One render.
Switch_normal_dark -- 96.17% fidelity (SSIM 0.9616) (no change)

Left: native widget. Right: Codename One render.
TextField_disabled_dark -- 96.21% fidelity (SSIM 0.9648) (no change)

Left: native widget. Right: Codename One render.

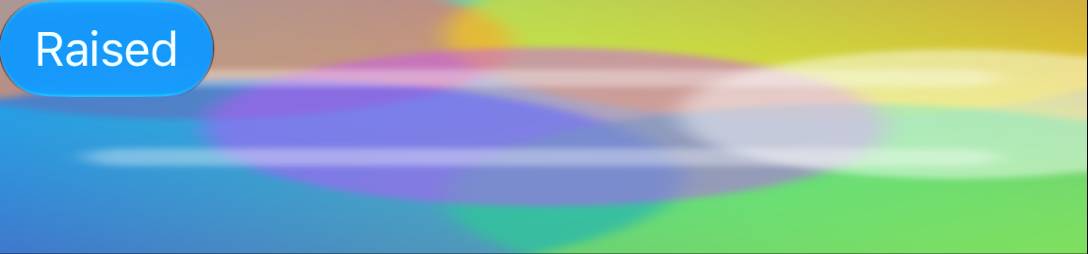

RaisedButton_normal_dark -- 96.41% fidelity (SSIM 0.9516) (no change)

Left: native widget. Right: Codename One render.
Switch_disabled_light -- 96.43% fidelity (SSIM 0.9698) (no change)

Left: native widget. Right: Codename One render.

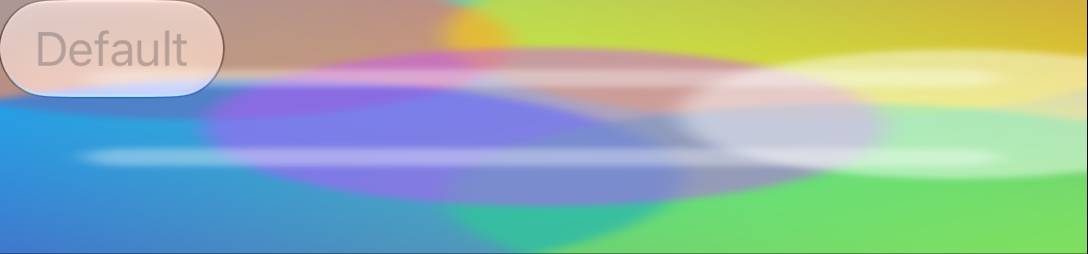

Button_disabled_light -- 96.80% fidelity (SSIM 0.9596) (no change)

Left: native widget. Right: Codename One render.

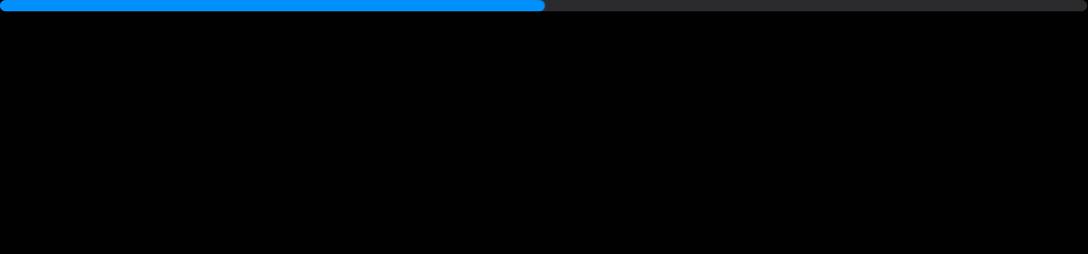

ProgressBar_normal_dark -- 96.91% fidelity (SSIM 0.9669) (no change)

Left: native widget. Right: Codename One render.

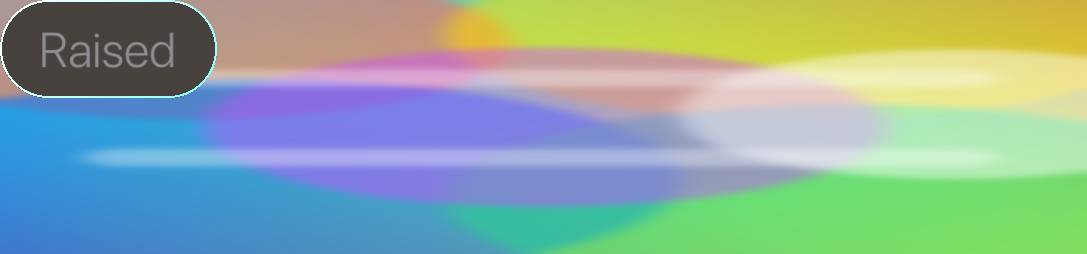

RaisedButton_disabled_dark -- 97.02% fidelity (SSIM 0.9549) (no change)

Left: native widget. Right: Codename One render.
FloatingActionButton_normal_dark -- 97.07% fidelity (SSIM 0.9521) (no change)

Left: native widget. Right: Codename One render.
ProgressBar_normal_light -- 97.26% fidelity (SSIM 0.9739) (no change)

Left: native widget. Right: Codename One render.

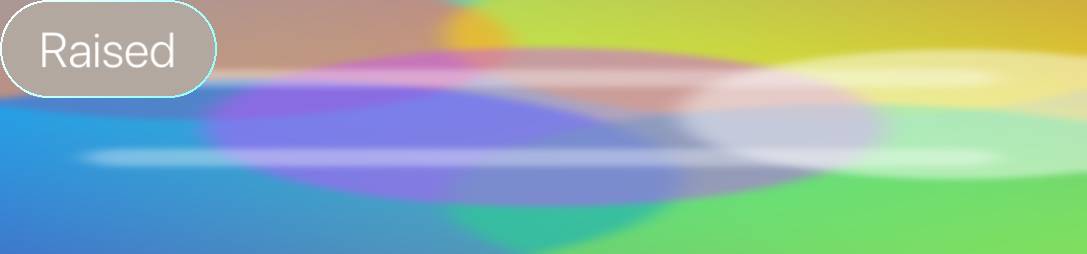

RaisedButton_disabled_light -- 97.26% fidelity (SSIM 0.9611) (no change)

Left: native widget. Right: Codename One render.
TextField_disabled_light -- 97.29% fidelity (SSIM 0.9649) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_normal_light -- 97.32% fidelity (SSIM 0.9613) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_dark -- 97.61% fidelity (SSIM 0.9583) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_light -- 97.62% fidelity (SSIM 0.9582) (no change)

Left: native widget. Right: Codename One render.
Slider_normal_dark -- 98.39% fidelity (SSIM 0.9900) (no change)

Left: native widget. Right: Codename One render.

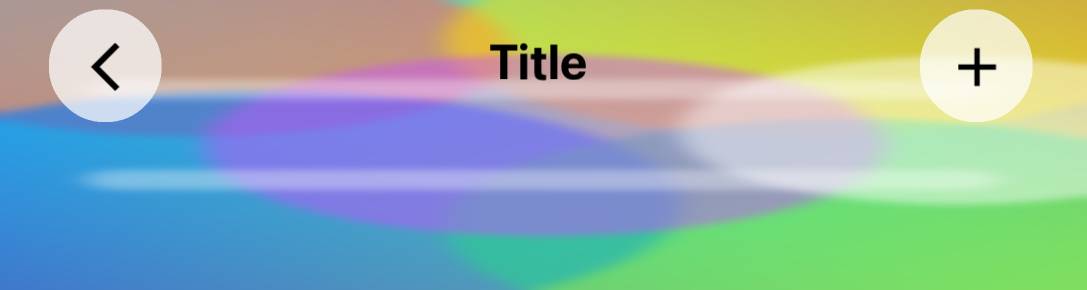

Toolbar_normal_light -- 98.69% fidelity (SSIM 0.9739) (no change)

Left: native widget. Right: Codename One render.

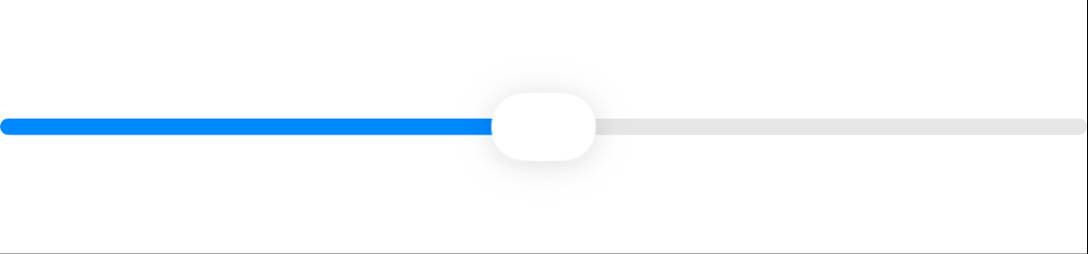

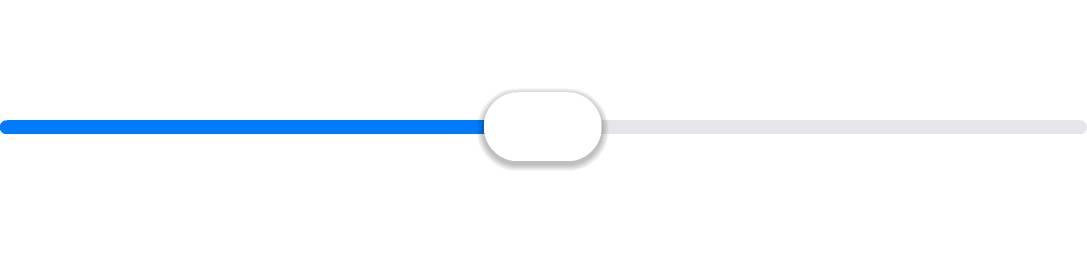

Slider_normal_light -- 98.95% fidelity (SSIM 0.9908) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_dark -- 99.56% fidelity (SSIM 0.9927) (no change)

Left: native widget. Right: Codename One render.

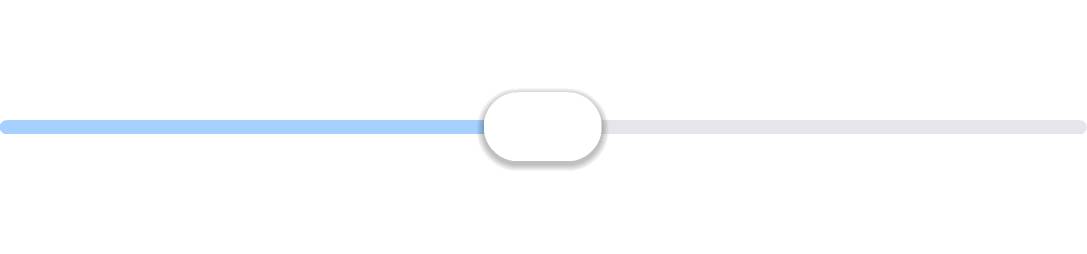

Slider_disabled_light -- 99.59% fidelity (SSIM 0.9932) (no change)

Left: native widget. Right: Codename One render.

createImage(String) opened its argument as a file. Nothing in the compiler calls it with a location on disk, and its contract is a resource in the jar, so it no longer touches the file system. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-08T14:28:12Z

Compared 12 screenshots: 12 matched.
✅ JavaSE simulator integration screenshots matched stored baselines.

github-actions · 2026-10-08T14:30:11Z

Developer Guide build artifacts are available for download from this workflow run:

Developer Guide quality checks:

AsciiDoc linter: No issues found (report)
Vale: No alerts found (report)
Paragraph capitalization: No paragraph capitalization issues (report)
LanguageTool: No grammar matches (report)
Image references: No unused images detected (report)

github-actions · 2026-10-08T14:32:58Z

Cloudflare Preview

URL: https://pr-5965-website-preview.codenameone.pages.dev
Branch: pr-5965-website-preview

shai-almog · 2026-10-08T14:36:54Z

@codex review

shai-almog · 2026-10-08T14:48:06Z

Compared 185 screenshots: 185 matched.
Native Windows port, REAL shipping pipeline: the hellocodenameone screenshot suite rendered by a binary CROSS-COMPILED on Linux (clang-cl + xwin, WebView2 linked) and RUN on a Windows x64 runner. Compared against the in-repo baseline in scripts/windows/screenshots.

Benchmark Results

Detailed Performance Metrics

Metric	Duration
SIMD kernel backend	SSE2 (x64) / NEON (arm64) native kernels
SIMD int-add (64K x300)	java 56ms / native 4ms = 14.0x speedup
SIMD float-mul (64K x300)	java 56ms / native 4ms = 14.0x speedup
SIMD kernel correctness	PASS (native result == scalar reference)
Base64 native bridge	unavailable (CN1 + SIMD + image benchmarks only)
Base64 payload size	8192 bytes
Base64 benchmark iterations	6000
Base64 SIMD byte path	gated to scalar (CPU autovectorizes scalar; explicit SIMD not beneficial here)
Base64 CN1 encode	99.000 ms
Base64 CN1 decode	97.000 ms
Base64 SIMD encode	119.000 ms
Base64 encode ratio (SIMD/CN1)	1.202x (20.2% slower)
Base64 SIMD decode	134.000 ms
Base64 decode ratio (SIMD/CN1)	1.381x (38.1% slower)
Image encode benchmark iterations	100
Image createMask (SIMD off)	5.000 ms
Image createMask (SIMD on)	3.000 ms
Image createMask ratio (SIMD on/off)	0.600x (40.0% faster)
Image applyMask (SIMD off)	42.000 ms
Image applyMask (SIMD on)	23.000 ms
Image applyMask ratio (SIMD on/off)	0.548x (45.2% faster)
Image modifyAlpha (SIMD off)	35.000 ms
Image modifyAlpha (SIMD on)	19.000 ms
Image modifyAlpha ratio (SIMD on/off)	0.543x (45.7% faster)
Image modifyAlpha removeColor (SIMD off)	30.000 ms
Image modifyAlpha removeColor (SIMD on)	52.000 ms
Image modifyAlpha removeColor ratio (SIMD on/off)	1.733x (73.3% slower)

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 9c44d38b29

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

shai-almog · 2026-10-08T14:50:27Z

Compared 185 screenshots: 185 matched.
Native Windows port (x64 / Intel-AMD): full hellocodenameone screenshot suite rendered offscreen with Direct2D/DirectWrite, plus the real benchmarks (base64 native/CN1/SIMD, image createMask/applyMask/modifyAlpha/PNG/JPEG, SSE2 SIMD kernels). Compared against the in-repo baseline in scripts/windows/screenshots.

Benchmark Results

Detailed Performance Metrics

Metric	Duration
SIMD kernel backend	SSE2 (x64) / NEON (arm64) native kernels
SIMD int-add (64K x300)	java 43ms / native 2ms = 21.5x speedup
SIMD float-mul (64K x300)	java 60ms / native 3ms = 20.0x speedup
SIMD kernel correctness	PASS (native result == scalar reference)
Base64 native bridge	unavailable (CN1 + SIMD + image benchmarks only)
Base64 payload size	8192 bytes
Base64 benchmark iterations	6000
Base64 SIMD byte path	gated to scalar (CPU autovectorizes scalar; explicit SIMD not beneficial here)
Base64 CN1 encode	60.000 ms
Base64 CN1 decode	92.000 ms
Base64 SIMD encode	92.000 ms
Base64 encode ratio (SIMD/CN1)	1.533x (53.3% slower)
Base64 SIMD decode	101.000 ms
Base64 decode ratio (SIMD/CN1)	1.098x (9.8% slower)
Image encode benchmark iterations	100
Image createMask (SIMD off)	7.000 ms
Image createMask (SIMD on)	10.000 ms
Image createMask ratio (SIMD on/off)	1.429x (42.9% slower)
Image applyMask (SIMD off)	20.000 ms
Image applyMask (SIMD on)	27.000 ms
Image applyMask ratio (SIMD on/off)	1.350x (35.0% slower)
Image modifyAlpha (SIMD off)	31.000 ms
Image modifyAlpha (SIMD on)	17.000 ms
Image modifyAlpha ratio (SIMD on/off)	0.548x (45.2% faster)
Image modifyAlpha removeColor (SIMD off)	33.000 ms
Image modifyAlpha removeColor (SIMD on)	17.000 ms
Image modifyAlpha removeColor ratio (SIMD on/off)	0.515x (48.5% faster)

ParparVM vs HotSpot (JDK 25): Windows x64

Runner CPU: AMD64 Family 25 Model 17 Stepping 1, AuthenticAMD (baseline windows-x64@amd64-family-25-model-17-authenticamd)

Ratios are ParparVM / JDK 25: below 1.00x ParparVM is faster (time) or smaller (RAM). Median of 5 interleaved, paired rounds; every run's output was verified. A ratio more than 15% (time) / 15% (RAM) away from its baseline in vm/selfhost/perf-baseline/ fails: above it is a regression, below it an improvement that has to be rebaselined (a row whose calibration runs were noisier carries a wider tolerance), and for RAM the change must also exceed 0.05x in absolute terms. Both run unpinned on all of the runner's CPUs, with their own default thread counts.

Benchmark	Cores	Time	RAM	Status
hello (WinHelloMain)	4	1.31x (base 1.38x, -4.8%)	0.83x (base 0.77x, +7.7%)	ok
translator (self)	4	0.66x (base 0.78x, -14.6%)	0.52x (base 0.55x, -6.0%)	ok
intArithmetic	4	1.10x (base 1.10x, +0.4%)	0.05x (base 0.06x, -2.9%)	ok
longArithmetic	4	1.08x (base 1.08x, +0.0%)	0.05x (base 0.06x, -0.9%)	ok
mathTranscendental	4	0.86x (base 0.85x, +0.9%)	0.06x (base 0.06x, +2.6%)	ok
arraySequential	4	1.65x (base 1.72x, -4.2%)	0.38x (base 0.38x, +0.1%)	ok
arrayRandom	4	1.01x (base 1.01x, -0.5%)	0.23x (base 0.23x, +0.1%)	ok
objectAllocation	4	1.28x (base 1.25x, +2.3%)	0.27x (base 0.29x, -9.3%)	ok
valueEscape	4	0.10x (base 0.10x, -1.4%)	0.05x (base 0.04x, +2.4%)	ok
hashMapChurn	4	1.37x (base 1.39x, -1.5%)	0.10x (base 0.10x, +2.0%)	ok
stringBuilding	4	1.39x (base 1.36x, +2.4%)	0.27x (base 0.28x, -4.0%)	ok
recursion	4	1.38x (base 1.43x, -3.4%)	0.06x (base 0.06x, +0.6%)	ok
quicksort	4	1.08x (base 1.11x, -3.3%)	0.12x (base 0.12x, -0.5%)	ok

Result: no regression

shai-almog · 2026-10-08T14:55:10Z

Compared 170 screenshots: 170 matched.

Native Android coverage

📊 Line coverage: 16.03% (26027/162381 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
- Other counters: instruction 14.39% (122369/850200), branch 9.93% (8482/85437), complexity 7.83% (6537/83500), method 11.61% (4653/40093), class 19.82% (962/4853)
- Lowest covered classes
  - kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6367 lines covered)
  - kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
  - org.jacoco.agent.rt.internal_0e20598.asm.org.jacoco.agent.rt.internal_0e20598.asm.ClassReader – 0.00% (0/1524 lines covered)
  - org.jacoco.agent.rt.internal_0e20598.asm.org.jacoco.agent.rt.internal_0e20598.asm.MethodWriter – 0.00% (0/922 lines covered)
  - kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/736 lines covered)
  - com.google.common.cache.com.google.common.cache.LocalCache$Segment – 0.00% (0/726 lines covered)
  - okio.okio.Buffer – 0.00% (0/687 lines covered)
  - kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/625 lines covered)
  - com.codename1.androidcompat.rt.com.codename1.androidcompat.rt.TextXmlPullParser – 0.00% (0/623 lines covered)
  - com.codename1.androidcompat.androidx.constraintlayout.core.widgets.com.codename1.androidcompat.androidx.constraintlayout.core.widgets.Flow – 0.00% (0/576 lines covered)

✅ Native Android screenshot tests passed.

Native Android coverage

📊 Line coverage: 16.03% (26027/162381 lines covered) [HTML preview] (artifact android-coverage-report, jacocoAndroidReport/html/index.html)
- Other counters: instruction 14.39% (122369/850200), branch 9.93% (8482/85437), complexity 7.83% (6537/83500), method 11.61% (4653/40093), class 19.82% (962/4853)
- Lowest covered classes
  - kotlin.collections.kotlin.collections.ArraysKt___ArraysKt – 0.00% (0/6367 lines covered)
  - kotlin.collections.unsigned.kotlin.collections.unsigned.UArraysKt___UArraysKt – 0.00% (0/2384 lines covered)
  - org.jacoco.agent.rt.internal_0e20598.asm.org.jacoco.agent.rt.internal_0e20598.asm.ClassReader – 0.00% (0/1524 lines covered)
  - org.jacoco.agent.rt.internal_0e20598.asm.org.jacoco.agent.rt.internal_0e20598.asm.MethodWriter – 0.00% (0/922 lines covered)
  - kotlin.sequences.kotlin.sequences.SequencesKt___SequencesKt – 0.00% (0/736 lines covered)
  - com.google.common.cache.com.google.common.cache.LocalCache$Segment – 0.00% (0/726 lines covered)
  - okio.okio.Buffer – 0.00% (0/687 lines covered)
  - kotlin.text.kotlin.text.StringsKt___StringsKt – 0.00% (0/625 lines covered)
  - com.codename1.androidcompat.rt.com.codename1.androidcompat.rt.TextXmlPullParser – 0.00% (0/623 lines covered)
  - com.codename1.androidcompat.androidx.constraintlayout.core.widgets.com.codename1.androidcompat.androidx.constraintlayout.core.widgets.Flow – 0.00% (0/576 lines covered)

Benchmark Results

Detailed Performance Metrics

Metric	Duration
SIMD kernel backend	scalar fallback (no native SIMD)
SIMD int-add (64K x300)	java 278ms / native 104ms = 2.6x speedup
SIMD float-mul (64K x300)	java 142ms / native 94ms = 1.5x speedup
SIMD kernel correctness	PASS (native result == scalar reference)
Base64 payload size	8192 bytes
Base64 benchmark iterations	6000
Base64 SIMD byte path	gated to scalar (CPU autovectorizes scalar; explicit SIMD not beneficial here)
Base64 CN1 encode	72.000 ms
Base64 CN1 decode	84.000 ms
Base64 native encode	402.000 ms
Base64 encode ratio (CN1/native)	0.179x (82.1% faster)
Base64 native decode	265.000 ms
Base64 decode ratio (CN1/native)	0.317x (68.3% faster)
Image encode benchmark status	skipped (SIMD unsupported)

shai-almog · 2026-10-08T14:59:51Z

Compared 206 screenshots: 206 matched.
✅ JavaScript-port screenshot tests passed.

github-actions · 2026-10-08T15:04:58Z

✅ Continuous Quality Report

Test & Coverage

✅ Tests: 12118 total, 0 failed, 138 skipped
📊 Line coverage: 63.97% [HTML preview] [Download]
- Lowest covered classes
  - com.codename1.gaming.level.GameSceneView – 0.00%
  - com.codename1.crash.CrashProtection – 0.00%
  - com.codename1.payment.CommerceManager – 0.00%
  - com.codename1.wearable.WearableMessage – 0.00%
  - com.codename1.ui.plaf.GlassLensBlend – 0.00%
  - com.codename1.vr.VRView – 0.00%
  - com.codename1.appreview.RatingDialog – 0.00%
  - com.codename1.db.ManagedKeys – 0.00%
  - com.codename1.calendar.DefaultCalendarHttpTransport – 0.00%
  - com.codename1.security.Secrets – 0.00%

Static Analysis

SpotBugs [Report archive]
- ✅ ByteCodeTranslator: 0 findings (no issues)
- ✅ android: 0 findings (no issues)
- ✅ android-compat: 0 findings (no issues)
- ✅ android-res-compiler: 0 findings (no issues)
- ✅ backend: 0 findings (no issues)
- ✅ backend-test: 0 findings (no issues)
- ✅ build-engine: 0 findings (no issues)
- ✅ build-hint-catalog: 0 findings (no issues)
- ✅ build-hint-tools: 0 findings (no issues)
- ✅ codenameone-gradle-plugin: 0 findings (no issues)
- ✅ codenameone-maven-plugin: 0 findings (no issues)
- ✅ core-unittests: 0 findings (no issues)
- ✅ ios: 0 findings (no issues)
- ✅ javac: 0 findings (no issues)
- ✅ project-model: 0 findings (no issues)
✅ PMD: 0 findings (no issues) [Report archive]
✅ Checkstyle: 0 findings (no issues) [Report archive]

Generated automatically by the PR CI workflow.

shai-almog · 2026-10-08T15:21:59Z

Compared 185 screenshots: 185 matched.
Native Linux port (x64), GTK3/Cairo/Pango, ParparVM bytecode-to-C (no JVM): the hellocodenameone screenshot suite rendered by a native ELF built + run on the GitHub x64 runner. Baseline: scripts/linux/screenshots.

ParparVM vs HotSpot (JDK 25): Linux x64

Runner CPU: INTEL(R) XEON(R) PLATINUM 8573C (baseline linux-x64@intel-xeon-platinum-8573c)

1 performance regression:

hello (LinuxHelloMain) on all 4 CPUs: RAM 0.91x against a 0.73x baseline (+24.2%, tolerance 20%)

Ratios are ParparVM / JDK 25: below 1.00x ParparVM is faster (time) or smaller (RAM). Median of 5 interleaved, paired rounds; every run's output was verified. A ratio more than 15% (time) / 15% (RAM) away from its baseline in vm/selfhost/perf-baseline/ fails: above it is a regression, below it an improvement that has to be rebaselined (a row whose calibration runs were noisier carries a wider tolerance), and for RAM the change must also exceed 0.05x in absolute terms. Both run unpinned on all of the runner's CPUs, with their own default thread counts.

Benchmark	Cores	Time	RAM	Status
hello (LinuxHelloMain)	4	0.96x (base 0.94x, +1.4%)	0.91x (base 0.73x, +24.2%)	REGRESSION (RAM +24.2%)
translator (self)	4	0.57x (base 0.51x, +12.7%)	0.46x (base 0.52x, -11.5%)	ok
intArithmetic	4	1.03x (base 1.03x, -0.0%)	0.06x (base 0.07x, -24.2%)	ok
longArithmetic	4	0.96x (base 0.96x, -0.0%)	0.05x (base 0.05x, +1.3%)	ok
mathTranscendental	4	1.03x (base 1.03x, -0.1%)	0.06x (base 0.06x, -1.2%)	ok
arraySequential	4	2.46x (base 2.69x, -8.7%)	0.38x (base 0.35x, +5.9%)	ok
arrayRandom	4	1.02x (base 1.05x, -3.4%)	0.23x (base 0.21x, +13.1%)	ok
objectAllocation	4	1.17x (base 1.03x, +13.5%)	0.41x (base 0.51x, -19.0%)	ok
valueEscape	4	0.13x (base 0.13x, +0.2%)	0.04x (base 0.04x, +1.0%)	ok
hashMapChurn	4	1.01x (base 1.00x, +0.5%)	0.11x (base 0.10x, +12.3%)	ok
stringBuilding	4	1.57x (base 1.53x, +2.6%)	0.22x (base 0.22x, -2.4%)	ok
recursion	4	1.12x (base 1.05x, +5.9%)	0.06x (base 0.06x, -1.3%)	ok
quicksort	4	1.09x (base 1.08x, +1.3%)	0.11x (base 0.11x, +1.1%)	ok

A change that moves performance ON PURPOSE records the new baseline in vm/selfhost/perf-baseline/pr/5965.json, with the reason, from this job's perf-results.json. The rebaseline is then part of this pull request's diff:

python3 vm/selfhost/calibrate-perf-baseline.py --pr 5965 --reason "<why these benchmarks moved>" perf-results.json

Result: performance regression

shai-almog · 2026-10-08T15:22:05Z

Compared 185 screenshots: 185 matched.
Native Linux port (arm64), GTK3/Cairo/Pango, ParparVM bytecode-to-C (no JVM): the hellocodenameone screenshot suite rendered by a native ELF built + run on the GitHub arm64 runner. Baseline: scripts/linux/screenshots-arm.

ParparVM vs HotSpot (JDK 25): Linux arm64

Runner CPU: Neoverse-N2 (baseline linux-arm64@neoverse-n2)

Ratios are ParparVM / JDK 25: below 1.00x ParparVM is faster (time) or smaller (RAM). Median of 5 interleaved, paired rounds; every run's output was verified. A ratio more than 15% (time) / 15% (RAM) away from its baseline in vm/selfhost/perf-baseline/ fails: above it is a regression, below it an improvement that has to be rebaselined (a row whose calibration runs were noisier carries a wider tolerance), and for RAM the change must also exceed 0.05x in absolute terms. Both run unpinned on all of the runner's CPUs, with their own default thread counts.

Benchmark	Cores	Time	RAM	Status
hello (LinuxHelloMain)	4	1.00x (base 0.93x, +7.5%)	0.93x (base 0.87x, +6.6%)	ok
translator (self)	4	0.74x (base 0.70x, +5.5%)	0.46x (base 0.45x, +1.8%)	ok
intArithmetic	4	1.04x (base 1.04x, -0.1%)	0.03x (base 0.03x, -0.2%)	ok
longArithmetic	4	0.79x (base 0.79x, -0.0%)	0.03x (base 0.03x, +1.1%)	ok
mathTranscendental	4	1.10x (base 1.10x, -0.0%)	0.03x (base 0.03x, -2.3%)	ok
arraySequential	4	0.37x (base 0.36x, +1.0%)	0.37x (base 0.37x, -0.1%)	ok
arrayRandom	4	0.94x (base 0.94x, +0.2%)	0.20x (base 0.20x, +0.1%)	ok
objectAllocation	4	1.95x (base 1.77x, +10.2%)	0.38x (base 0.38x, -0.2%)	ok
valueEscape	4	0.51x (base 0.51x, -0.1%)	0.03x (base 0.03x, +0.5%)	ok
hashMapChurn	4	0.84x (base 0.84x, -0.1%)	0.12x (base 0.12x, -1.1%)	ok
stringBuilding	4	1.36x (base 1.36x, +0.1%)	0.26x (base 0.26x, -0.3%)	ok
recursion	4	1.42x (base 1.43x, -1.3%)	0.03x (base 0.04x, -1.4%)	ok
quicksort	4	1.00x (base 0.99x, +0.6%)	0.09x (base 0.09x, +0.5%)	ok

Result: no regression

shai-almog · 2026-10-08T15:23:21Z

Compared 185 screenshots: 185 matched.
Native Windows port (arm64 / Apple Silicon - Arm): full hellocodenameone screenshot suite rendered offscreen with Direct2D/DirectWrite, plus the real benchmarks (base64 native/CN1/SIMD, image createMask/applyMask/modifyAlpha/PNG/JPEG, NEON SIMD kernels). Compared against the in-repo baseline in scripts/windows/screenshots.

Benchmark Results

Detailed Performance Metrics

Metric	Duration
SIMD kernel backend	SSE2 (x64) / NEON (arm64) native kernels
SIMD int-add (64K x300)	java 49ms / native 2ms = 24.5x speedup
SIMD float-mul (64K x300)	java 48ms / native 2ms = 24.0x speedup
SIMD kernel correctness	PASS (native result == scalar reference)
Base64 native bridge	unavailable (CN1 + SIMD + image benchmarks only)
Base64 payload size	8192 bytes
Base64 benchmark iterations	6000
Base64 SIMD byte path	gated to scalar (CPU autovectorizes scalar; explicit SIMD not beneficial here)
Base64 CN1 encode	60.000 ms
Base64 CN1 decode	73.000 ms
Base64 SIMD encode	73.000 ms
Base64 encode ratio (SIMD/CN1)	1.217x (21.7% slower)
Base64 SIMD decode	73.000 ms
Base64 decode ratio (SIMD/CN1)	1.000x (0.0% slower)
Image encode benchmark iterations	100
Image createMask (SIMD off)	6.000 ms
Image createMask (SIMD on)	3.000 ms
Image createMask ratio (SIMD on/off)	0.500x (50.0% faster)
Image applyMask (SIMD off)	15.000 ms
Image applyMask (SIMD on)	17.000 ms
Image applyMask ratio (SIMD on/off)	1.133x (13.3% slower)
Image modifyAlpha (SIMD off)	16.000 ms
Image modifyAlpha (SIMD on)	7.000 ms
Image modifyAlpha ratio (SIMD on/off)	0.438x (56.3% faster)
Image modifyAlpha removeColor (SIMD off)	15.000 ms
Image modifyAlpha removeColor (SIMD on)	10.000 ms
Image modifyAlpha removeColor ratio (SIMD on/off)	0.667x (33.3% faster)

ParparVM vs HotSpot (JDK 25): Windows arm64

Runner CPU: ARMv8 (64-bit) Family 8 Model D49 Revision 0, MICROSOFT CORPORATION (baseline windows-arm64@armv8-64-bit-family-8-model-d49-microsoft-corporation)

Ratios are ParparVM / JDK 25: below 1.00x ParparVM is faster (time) or smaller (RAM). Median of 5 interleaved, paired rounds; every run's output was verified. A ratio more than 15% (time) / 15% (RAM) away from its baseline in vm/selfhost/perf-baseline/ fails: above it is a regression, below it an improvement that has to be rebaselined (a row whose calibration runs were noisier carries a wider tolerance), and for RAM the change must also exceed 0.05x in absolute terms. Both run unpinned on all of the runner's CPUs, with their own default thread counts.

Benchmark	Cores	Time	RAM	Status
hello (WinHelloMain)	4	1.09x (base 1.11x, -1.7%)	1.00x (base 0.97x, +2.4%)	ok
translator (self)	4	0.80x (base 0.84x, -4.7%)	0.45x (base 0.45x, +0.7%)	ok
intArithmetic	4	1.04x (base 1.04x, -0.1%)	0.06x (base 0.06x, +1.4%)	ok
longArithmetic	4	0.79x (base 0.80x, -0.4%)	0.06x (base 0.06x, +1.7%)	ok
mathTranscendental	4	0.72x (base 0.72x, -0.4%)	0.06x (base 0.06x, +0.6%)	ok
arraySequential	4	0.36x (base 0.46x, -20.7%)	0.39x (base 0.39x, +0.1%)	ok
arrayRandom	4	0.94x (base 0.94x, +0.4%)	0.23x (base 0.23x, +0.3%)	ok
objectAllocation	4	1.81x (base 2.81x, -35.4%)	0.29x (base 0.43x, -31.8%)	ok
valueEscape	4	0.76x (base 0.76x, +0.0%)	0.05x (base 0.05x, +0.9%)	ok
hashMapChurn	4	1.00x (base 0.98x, +1.2%)	0.12x (base 0.12x, -2.6%)	ok
stringBuilding	4	1.54x (base 1.43x, +8.0%)	0.27x (base 0.27x, -0.5%)	ok
recursion	4	1.49x (base 1.46x, +1.5%)	0.06x (base 0.07x, -0.3%)	ok
quicksort	4	1.01x (base 1.00x, +0.9%)	0.12x (base 0.12x, -0.1%)	ok

Result: no regression

shai-almog · 2026-10-08T15:57:37Z

Native fidelity (ios-27-metal)

68 pairs compared -- median 94.6%, worst 74.5% (Toolbar_normal_dark), 25th pct 91.7%, mean 93.3%.

Distribution -- >=99%: 0 | 95-99%: 31 | 90-95%: 25 | <90%: 12

Component	State	Appearance	Material	Fidelity	SSIM	mean delta	vs base	Geometry
Toolbar	normal	dark	glass	74.5%	0.930	7.16	0.0	ok
Button	normal	dark	glass	79.3%	0.938	7.66	0.0	OFF (off 11px)
Button	disabled	dark	glass	79.6%	0.942	7.41	0.0	OFF (off 11px)
RaisedButton	disabled	dark	glass	81.2%	0.954	6.32	0.0	ok
Tabs	normal	dark	glass	86.2%	0.900	6.73	+0.3	ok
Button	pressed	dark	glass	86.3%	0.948	5.27	0.0	OFF (off 11px)
Tabs	normal	light	glass	86.4%	0.895	7.61	+0.3	ok
TextField	normal	light	normal	86.5%	0.950	3.38	0.0	ok
Toolbar	normal	light	glass	86.9%	0.949	3.85	0.0	ok
TextField	disabled	light	normal	89.4%	0.954	2.56	0.0	ok
Button	normal	light	glass	89.5%	0.959	4.54	0.0	OFF (off 11px)
Button	pressed	light	glass	89.5%	0.959	4.33	0.0	OFF (off 11px)

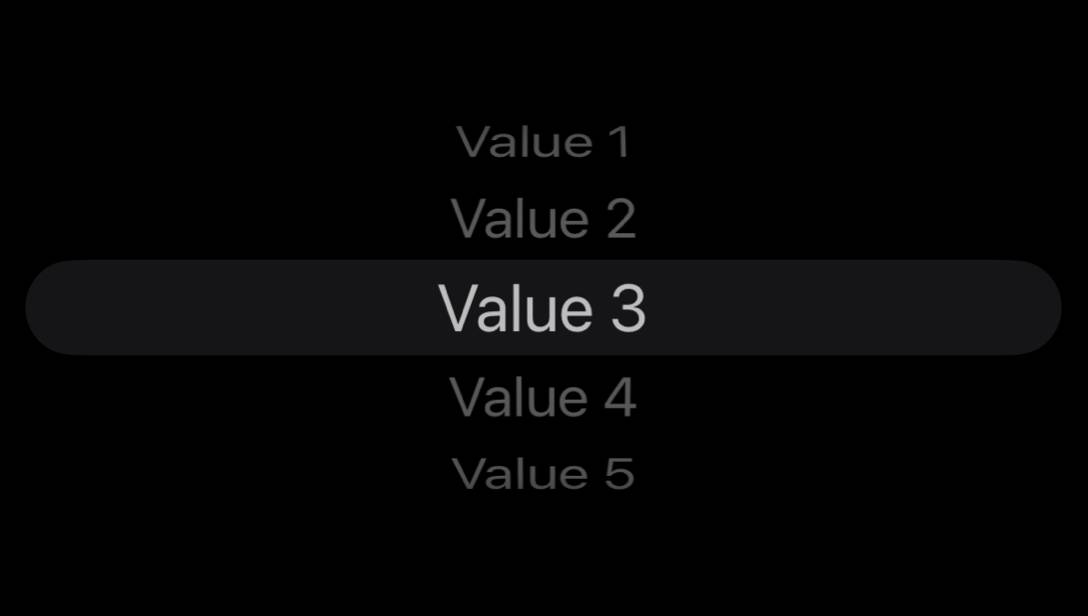

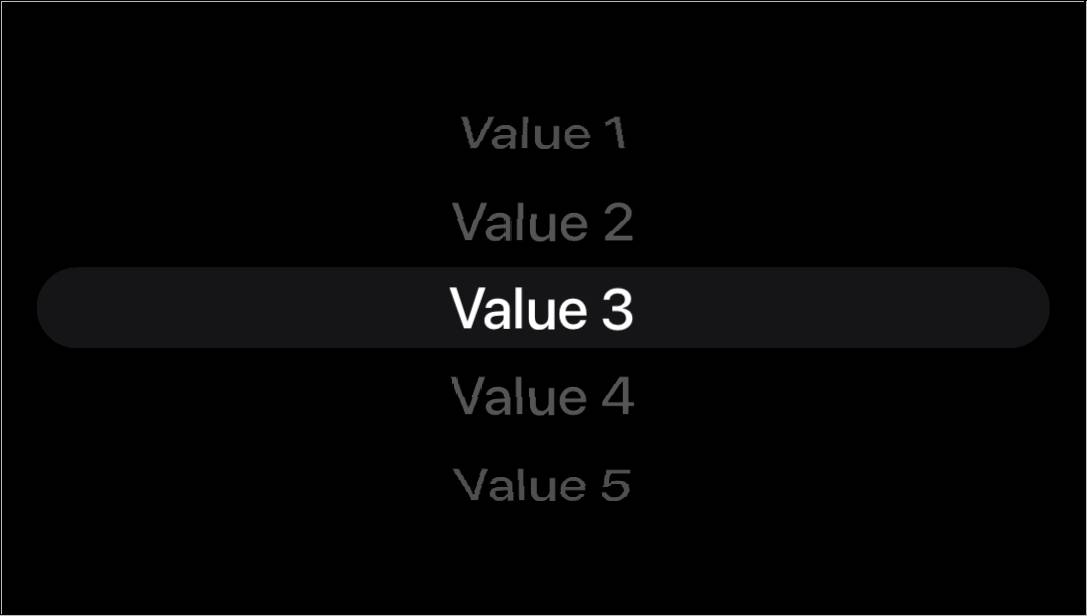

Spinner	normal	dark	normal	90.7%	0.880	3.47	0.0	ok
FlatButton	normal	dark	glass	90.9%	0.981	2.38	0.0	ok
Button	disabled	light	glass	91.6%	0.962	3.21	0.0	OFF (off 11px)

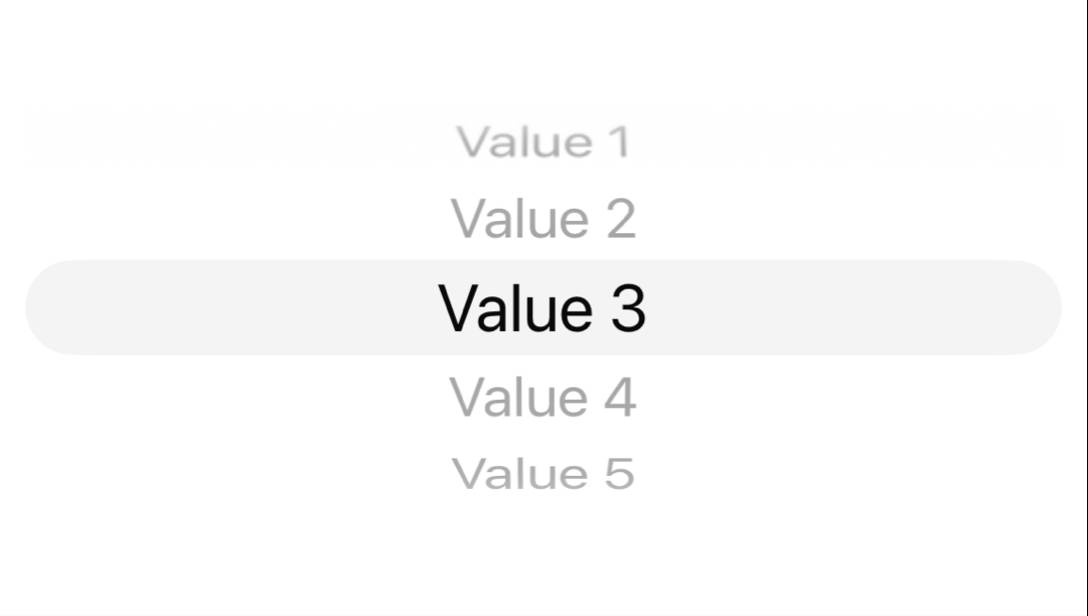

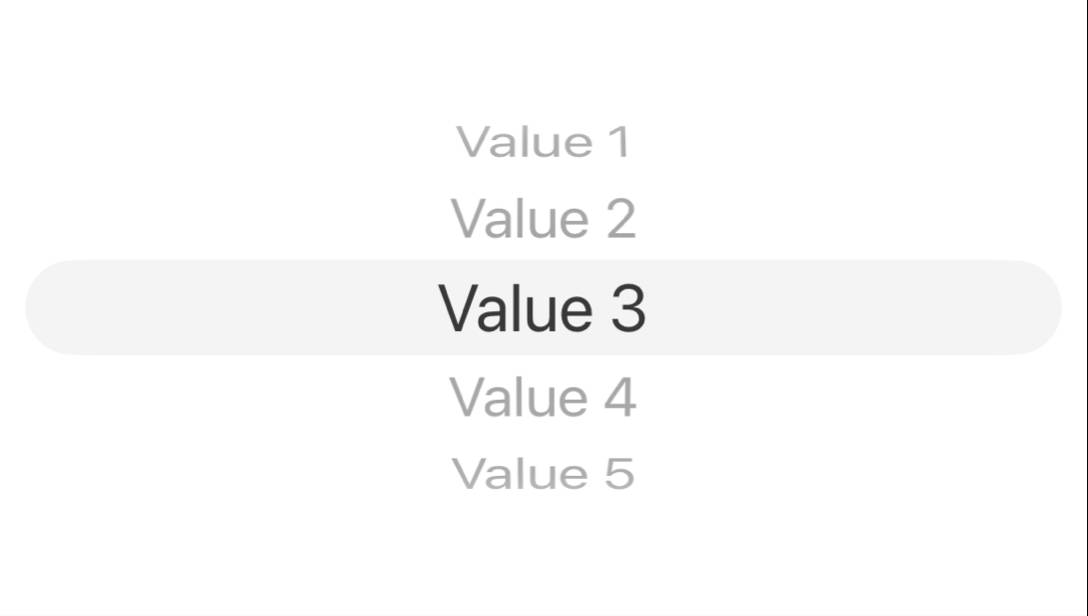

Spinner	normal	light	normal	91.6%	0.910	4.20	0.0	ok
CheckBox	normal	light	normal	91.7%	0.994	0.72	0.0	ok
RadioButton	normal	light	normal	91.7%	0.994	0.72	0.0	ok
Slider	disabled	dark	normal	92.1%	0.943	2.45	0.0	ok
Switch	selected	light	normal	92.1%	0.981	1.47	0.0	ok
CheckBox	disabled	light	normal	92.3%	0.995	0.52	0.0	ok
RadioButton	disabled	light	normal	92.3%	0.995	0.52	0.0	ok
FlatButton	pressed	dark	glass	92.4%	0.982	1.37	0.0	ok
RaisedButton	disabled	light	glass	92.4%	0.960	2.43	0.0	ok
Slider	normal	dark	normal	92.5%	0.944	2.63	0.0	ok

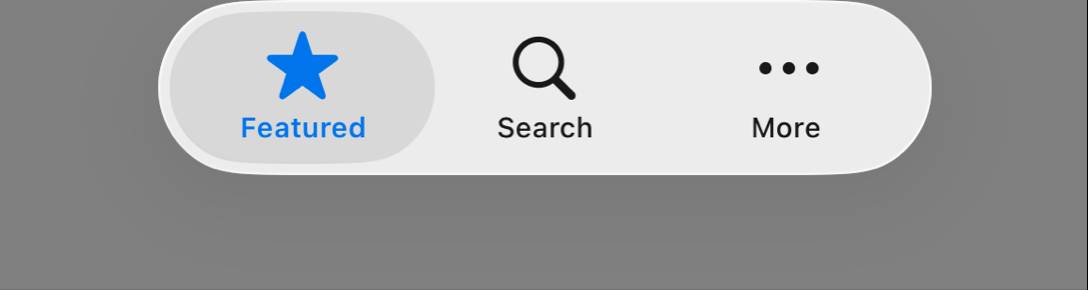

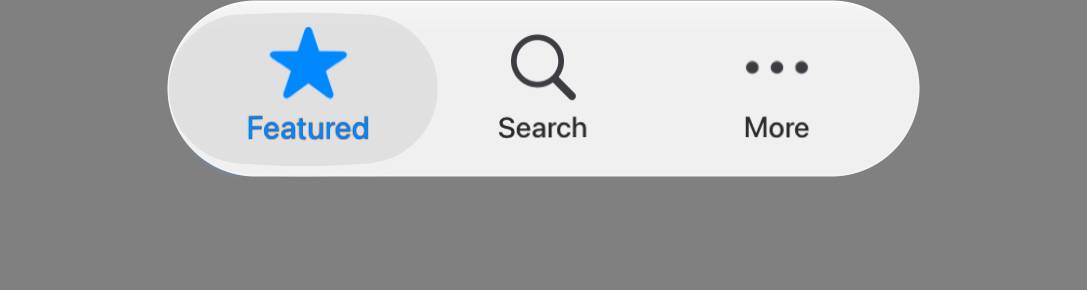

TabsGeom	normal	light	normal	93.1%	0.885	6.48	+0.1	OFF (off 6px)
FlatButton	pressed	light	glass	93.3%	0.981	1.90	0.0	ok

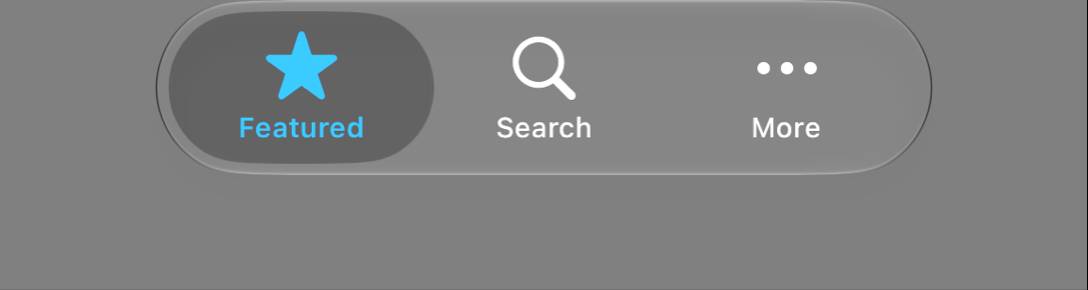

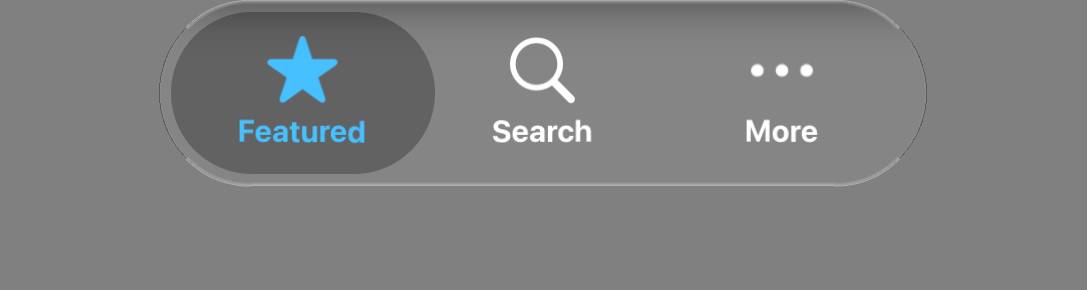

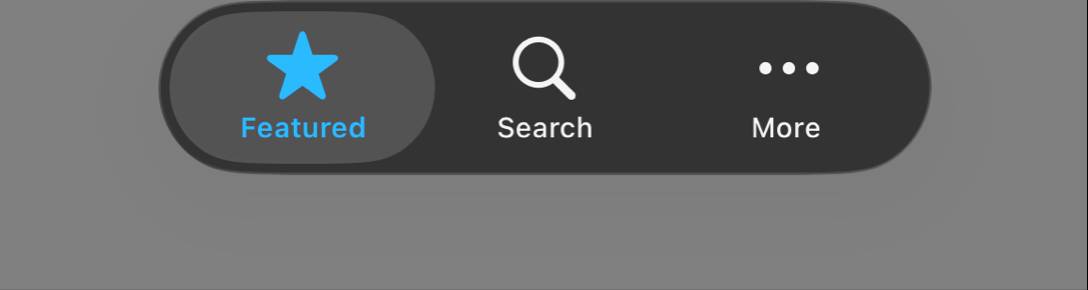

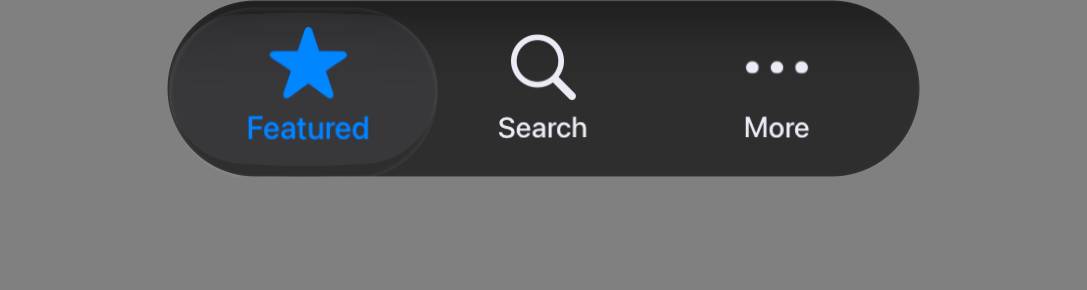

TabsGeom	normal	dark	normal	93.8%	0.893	4.47	+0.1	ok
FlatButton	normal	light	glass	93.9%	0.981	1.88	0.0	ok
Slider	disabled	light	normal	94.0%	0.963	1.75	0.0	OFF (h 4.50)
RaisedButton	pressed	dark	glass	94.1%	0.966	2.29	0.0	ok
RaisedButton	normal	dark	glass	94.1%	0.966	2.32	0.0	ok
RadioButton	selected	light	normal	94.3%	0.990	0.95	0.0	ok
RaisedButton	pressed	light	glass	94.5%	0.963	2.16	0.0	ok

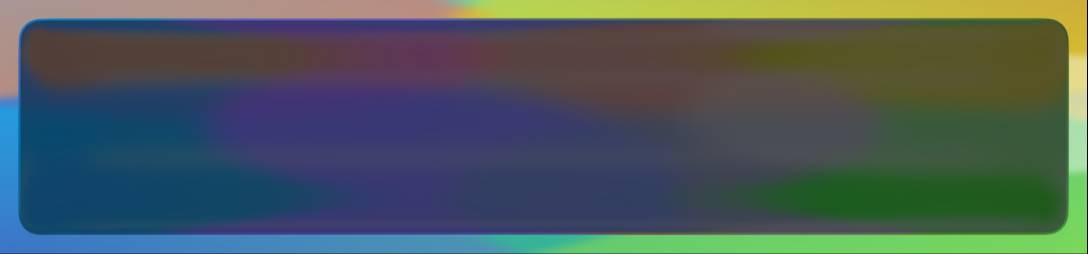

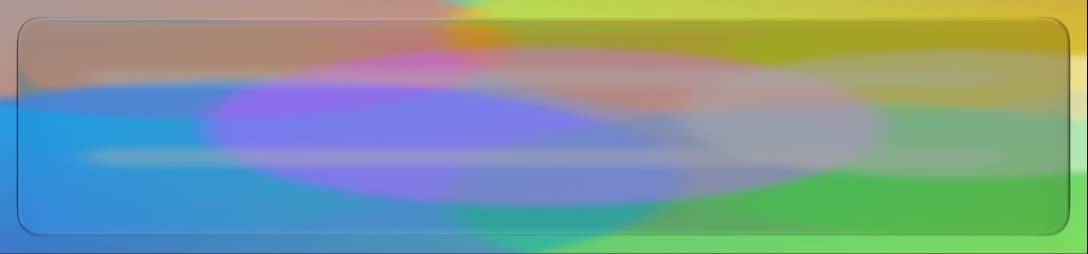

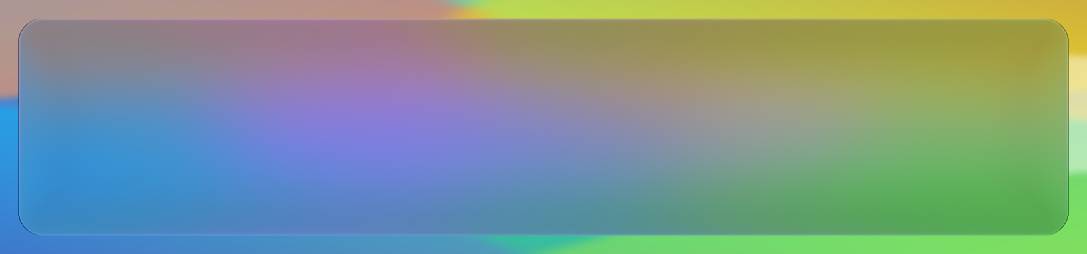

GlassPanelPhoto	normal	dark	glass	94.6%	0.951	13.16	0.0	ok
RaisedButton	normal	light	glass	94.6%	0.963	2.17	0.0	ok

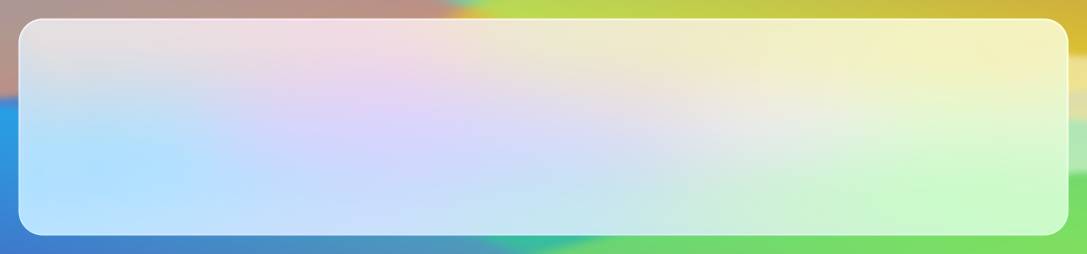

GlassPanelPhoto	normal	light	glass	94.7%	0.951	11.57	0.0	ok
Slider	normal	light	normal	95.1%	0.959	1.56	0.0	ok
CheckBox	disabled	dark	normal	95.4%	0.992	0.25	0.0	ok
RadioButton	disabled	dark	normal	95.4%	0.992	0.25	0.0	ok
Switch	normal	light	normal	95.5%	0.986	0.70	0.0	ok
CheckBox	selected	light	normal	95.8%	0.995	0.65	0.0	ok
CheckBox	normal	dark	normal	95.8%	0.992	0.39	0.0	ok
RadioButton	normal	dark	normal	95.8%	0.992	0.39	0.0	ok
Switch	selected	dark	normal	95.9%	0.985	1.02	0.0	ok
TextField	normal	dark	normal	96.0%	0.937	4.53	0.0	ok
RadioButton	selected	dark	normal	96.1%	0.989	0.67	0.0	ok
Switch	disabled	light	normal	96.4%	0.990	0.53	0.0	ok
TextField	disabled	dark	normal	96.4%	0.940	3.39	0.0	ok
Switch	normal	dark	normal	96.8%	0.986	0.82	0.0	ok

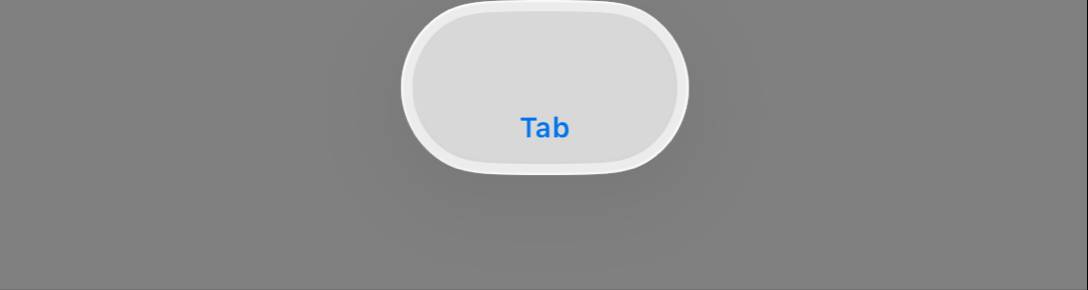

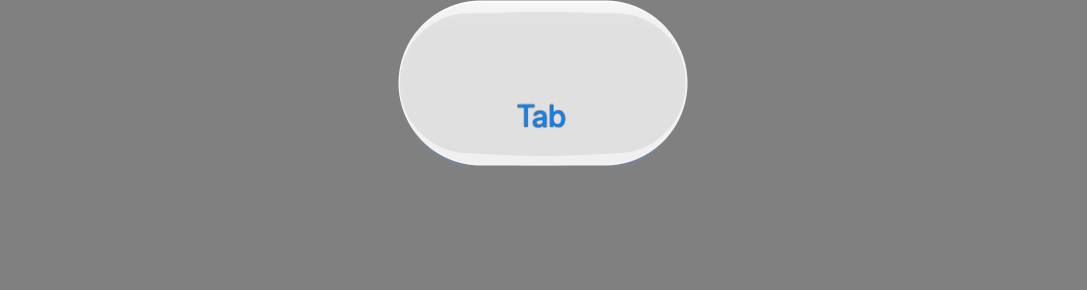

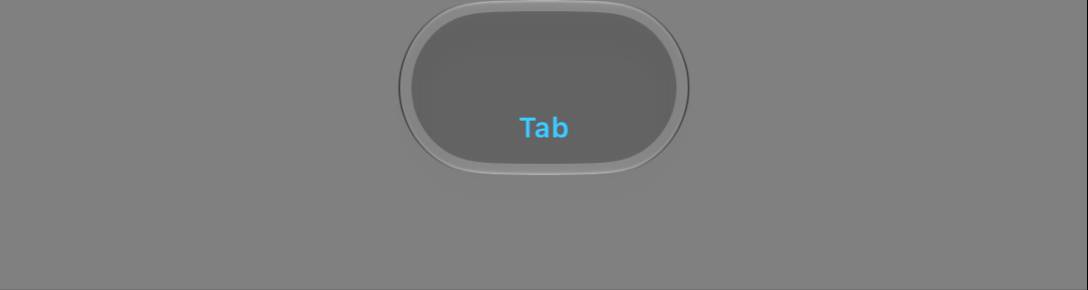

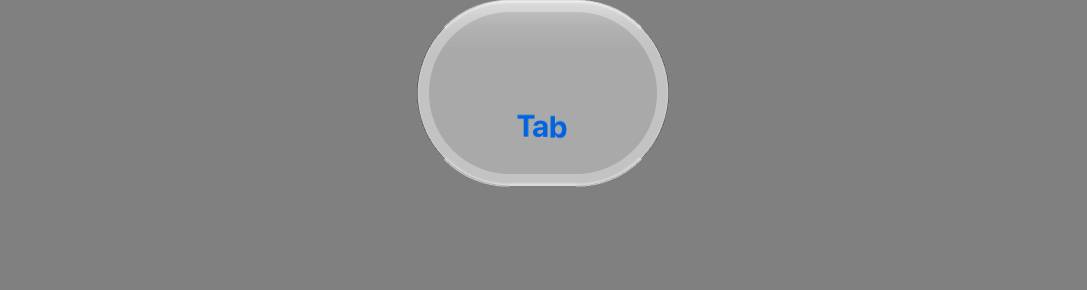

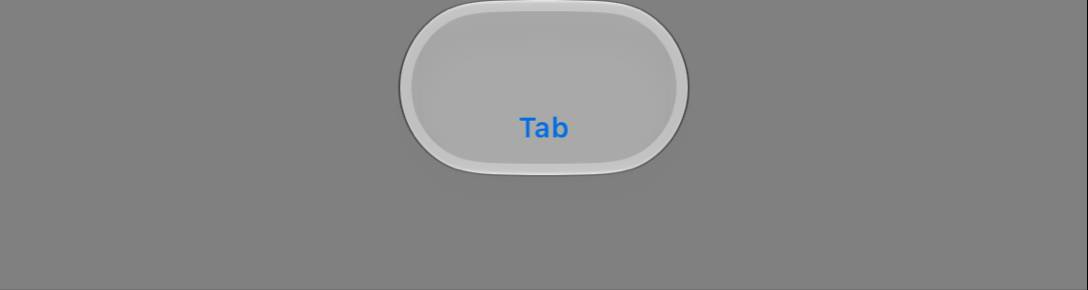

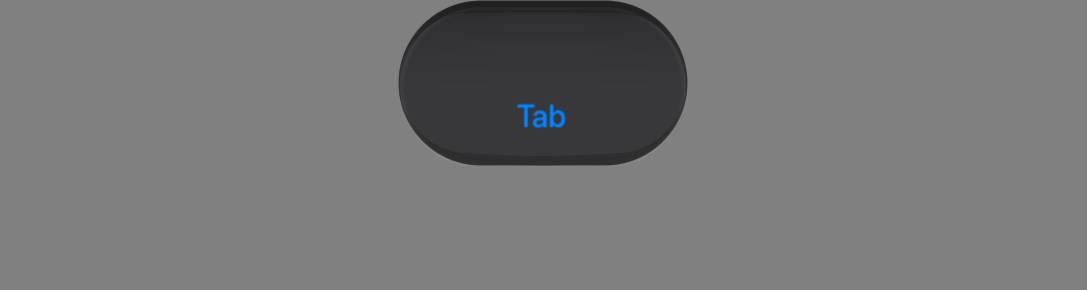

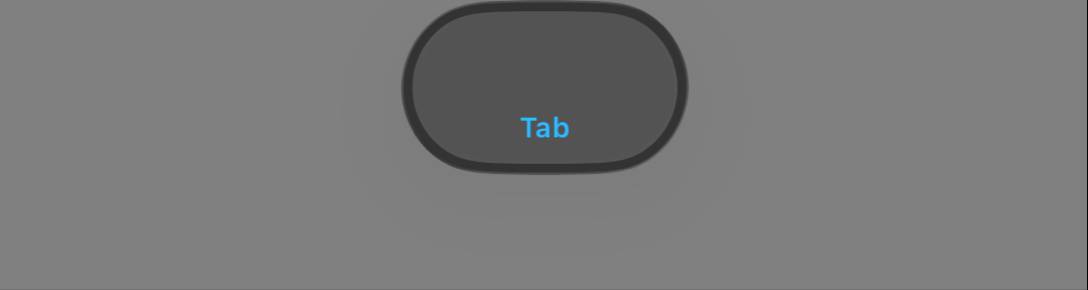

TabOne	normal	light	normal	96.9%	0.948	2.57	0.0	OFF (off 6px, w 0.86)

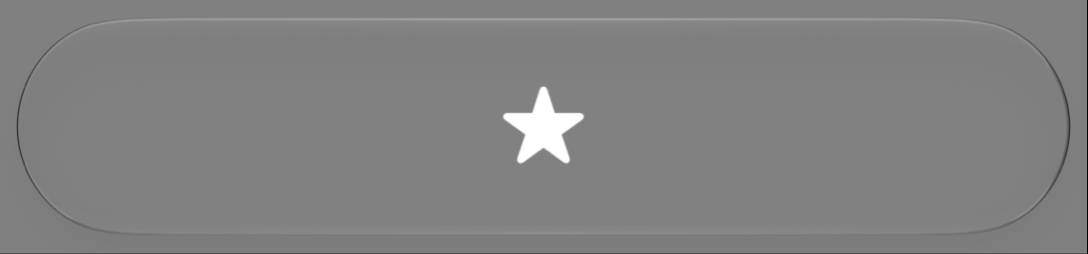

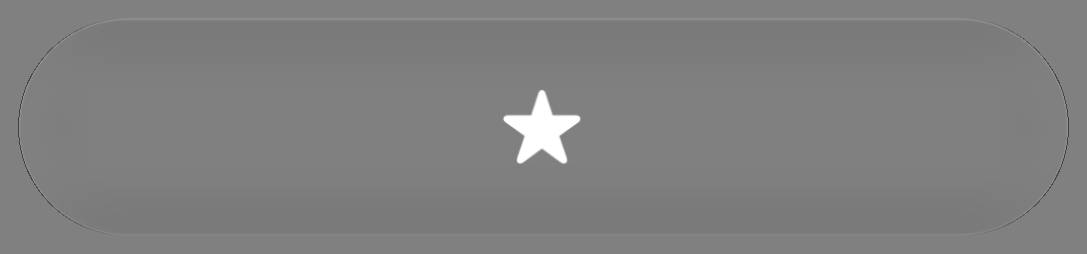

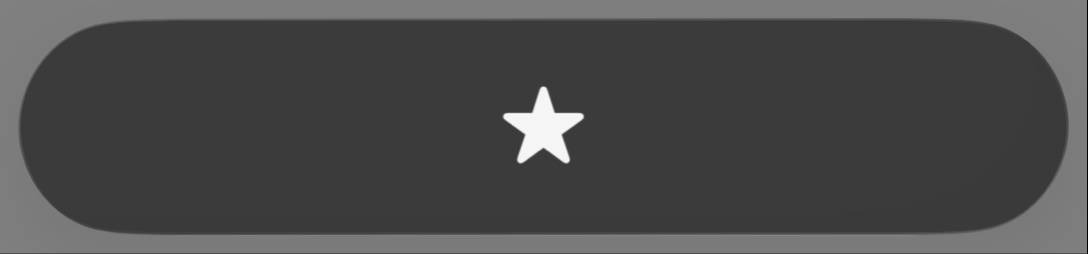

GlassIcon	normal	dark	normal	97.2%	0.955	3.32	0.0	ok
GlassText	normal	dark	normal	97.3%	0.956	3.27	+0.1	ok
GlassPanelGrey	normal	dark	normal	97.4%	0.959	3.41	0.0	ok
TabOne	normal	dark	normal	97.4%	0.953	1.49	0.0	OFF (w 0.86)
ProgressBar	normal	dark	normal	97.5%	0.997	0.60	0.0	ok
ProgressBar	normal	light	normal	97.6%	0.999	0.61	0.0	ok
GlassPanelRed	normal	dark	normal	97.7%	0.980	6.75	0.0	ok
CheckBox	selected	dark	normal	97.9%	0.995	0.37	0.0	ok
Dialog	normal	dark	normal	97.9%	0.961	1.38	0.0	ok
GlassPanelGrad	normal	dark	normal	97.9%	0.975	4.86	0.0	ok
Dialog	normal	light	normal	98.0%	0.963	1.42	0.0	ok
Switch	disabled	dark	normal	98.0%	0.987	0.41	0.0	ok
GlassIcon	normal	light	normal	98.2%	0.975	3.65	0.0	ok
GlassText	normal	light	normal	98.3%	0.978	3.58	+0.1	ok
GlassPanelGrad	normal	light	normal	98.4%	0.988	5.52	0.0	ok
GlassPanelGrey	normal	light	normal	98.7%	0.987	3.64	0.0	ok
GlassPanelRed	normal	light	normal	98.8%	0.990	4.14	0.0	ok

Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score

Component	State	Appearance	bbox dx,dy (px)	w ratio	h ratio	center off (px)	radius native->cn1 (px)
Button	normal	dark	+0,-6	1.094	1.067	10.9	90.5 -> 45.2
Button	disabled	dark	+0,-6	1.094	1.067	10.9	92.0 -> 45.2
Button	pressed	dark	+0,-6	1.094	1.080	10.8	79.4 -> 45.3
Button	normal	light	+0,+0	1.094	1.000	10.5	45.7 -> 45.3
Button	pressed	light	+0,+0	1.094	1.000	10.5	87.5 -> 45.4
Button	disabled	light	+0,+0	1.094	1.000	10.5	49.1 -> 45.3
TabsGeom	normal	light	+3,+0	0.990	1.069	6.1	79.8 -> 83.6
TabOne	normal	light	+19,+0	0.863	1.069	6.1	80.9 -> 83.6
TabsGeom	normal	dark	+3,+0	0.990	1.064	5.6	98.6 -> 99.1
TabOne	normal	dark	+19,+0	0.863	1.064	5.6	95.2 -> 95.6
Tabs	normal	light	+4,+0	0.988	1.064	5.5	85.9 -> 87.9
GlassIcon	normal	dark	+1,+8	0.998	0.976	5.5	102.3 -> 102.4
GlassText	normal	dark	+1,+8	0.998	0.976	5.5	102.3 -> 102.4
Tabs	normal	dark	+4,+0	0.987	1.058	5.1	92.9 -> 93.7
Toolbar	normal	dark	+6,-3	0.983	1.009	3.5	90.3 -> 55.5
Toolbar	normal	light	+6,+7	0.984	0.926	3.2	70.9 -> 56.1
RaisedButton	disabled	dark	+0,-6	1.009	1.079	2.7	89.6 -> 46.1
Switch	selected	light	+0,+0	1.028	1.026	2.7	-
Slider	disabled	light	+0,-29	1.000	4.500	2.5	-
Switch	normal	light	+0,+0	1.023	1.013	2.1	-
Switch	disabled	light	+0,+0	1.023	1.013	2.1	-
Switch	normal	dark	+0,+0	1.023	1.013	2.1	-
Switch	disabled	dark	+0,+0	1.023	1.013	2.1	-
Spinner	normal	light	+11,-8	0.978	1.052	1.6	-
RaisedButton	disabled	light	+0,+0	1.014	1.011	1.6	71.9 -> 96.6
FlatButton	normal	light	+0,+0	0.980	1.011	1.6	86.2 -> 51.8
Switch	selected	dark	+0,+0	1.017	1.013	1.6	-
Spinner	normal	dark	+12,-8	0.977	1.052	1.5	-
CheckBox	normal	light	+0,+0	0.977	0.977	1.4	-
RadioButton	normal	light	+0,+0	0.977	0.977	1.4	-
RadioButton	selected	light	+0,+0	0.977	0.977	1.4	-
CheckBox	selected	light	+0,+0	0.977	0.977	1.4	-
CheckBox	normal	dark	+0,+0	0.977	0.977	1.4	-
RadioButton	normal	dark	+0,+0	0.977	0.977	1.4	-
RadioButton	selected	dark	+0,+0	0.977	0.977	1.4	-
CheckBox	selected	dark	+0,+0	0.977	0.977	1.4	-
FlatButton	pressed	light	+1,+0	0.973	1.011	1.1	94.6 -> 65.6
RaisedButton	pressed	dark	+0,+0	1.009	1.011	1.1	44.6 -> 44.3
RaisedButton	normal	dark	+0,+0	1.009	1.011	1.1	44.5 -> 44.3
CheckBox	disabled	dark	+1,+0	0.966	0.977	1.1	-
RadioButton	disabled	dark	+1,+0	0.966	0.977	1.1	-
RaisedButton	pressed	light	+0,+0	1.009	1.000	1.0	43.3 -> 44.3
RaisedButton	normal	light	+0,+0	1.009	1.000	1.0	43.3 -> 44.1
FlatButton	normal	dark	+4,+0	0.952	1.011	0.7	86.1 -> 95.7
FlatButton	pressed	dark	+4,+0	0.952	1.011	0.7	94.7 -> 97.9
GlassPanelPhoto	normal	light	+1,+1	0.997	0.995	0.7	35.1 -> 33.5

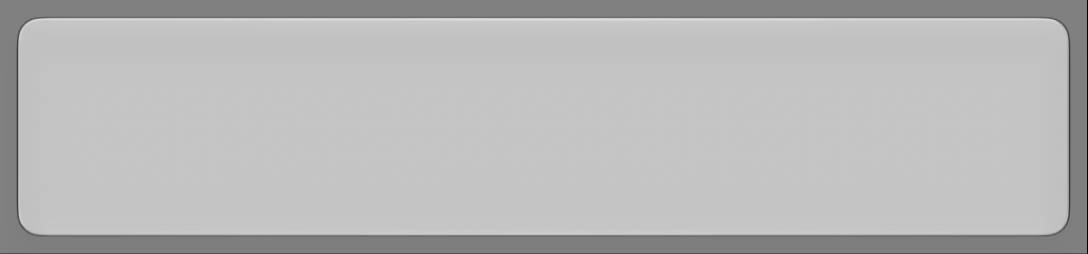

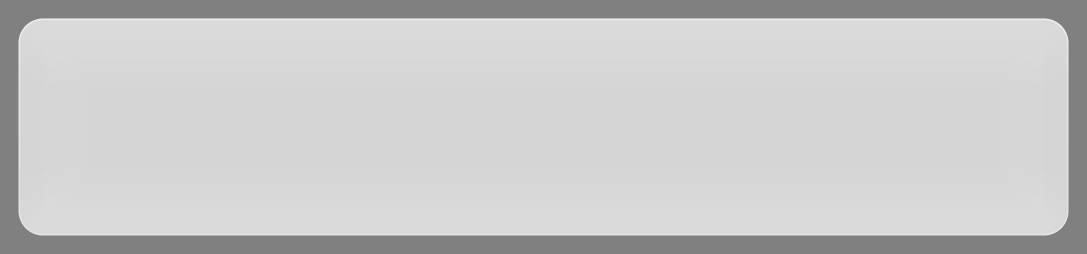

GlassPanelGrey	normal	light	+1,+1	0.997	0.995	0.7	30.0 -> 27.4
Slider	disabled	dark	+0,-1	1.000	1.015	0.5	-
CheckBox	disabled	light	+1,+0	0.977	0.988	0.5	-
RadioButton	disabled	light	+1,+0	0.977	0.988	0.5	-
Slider	normal	light	+0,+1	1.000	0.964	0.5	-
GlassPanelGrey	normal	dark	+1,+2	0.998	0.986	0.5	101.8 -> 102.4
ProgressBar	normal	dark	+0,+0	1.000	0.900	0.5	-
ProgressBar	normal	light	+0,+0	1.000	0.900	0.5	-
GlassPanelGrad	normal	dark	+1,+0	0.998	0.995	0.5	102.0 -> 102.1

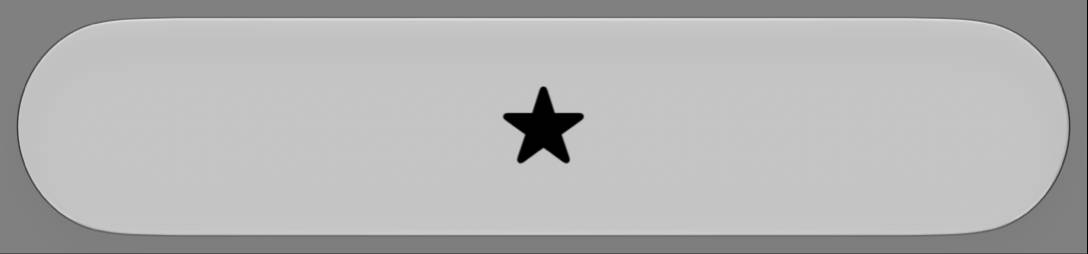

GlassIcon	normal	light	+1,+0	0.998	1.005	0.5	91.7 -> 92.8
GlassText	normal	light	+1,+0	0.998	1.005	0.5	91.7 -> 92.8

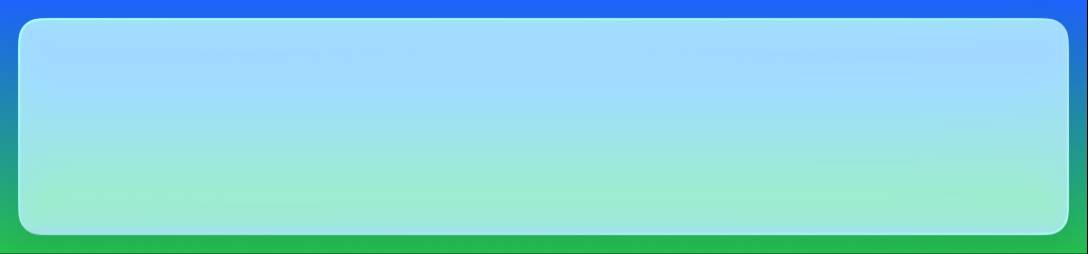

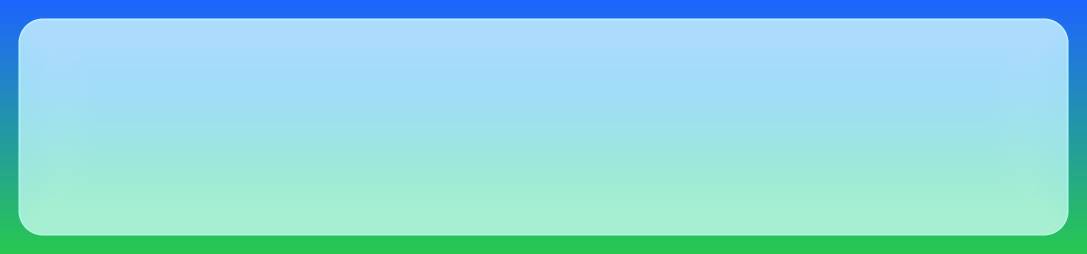

GlassPanelGrad	normal	light	+1,+0	0.998	1.005	0.5	24.3 -> 26.8

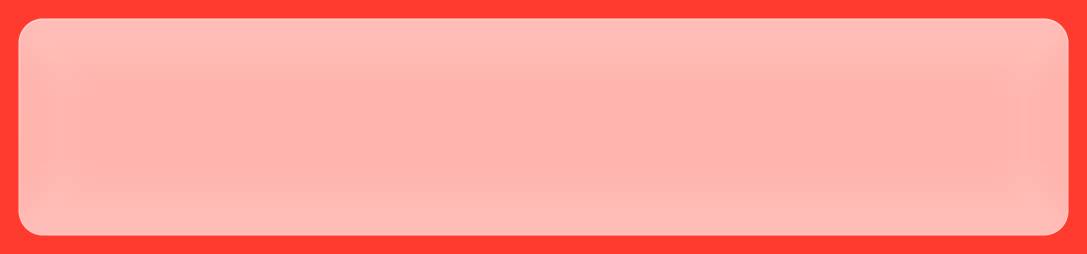

GlassPanelRed	normal	light	+1,+0	0.998	1.005	0.5	24.4 -> 25.7
TextField	normal	light	+0,+0	1.000	1.000	0.0	13.4 -> 40.0
TextField	disabled	light	+0,+0	1.000	1.000	0.0	13.9 -> 40.4
Slider	normal	dark	+0,+0	1.000	1.000	0.0	-
GlassPanelPhoto	normal	dark	+2,+1	0.996	0.991	0.0	67.3 -> 67.5
TextField	normal	dark	+0,+0	1.000	1.000	0.0	6.4 -> 15.1
TextField	disabled	dark	+0,+0	1.000	1.000	0.0	6.4 -> 15.9

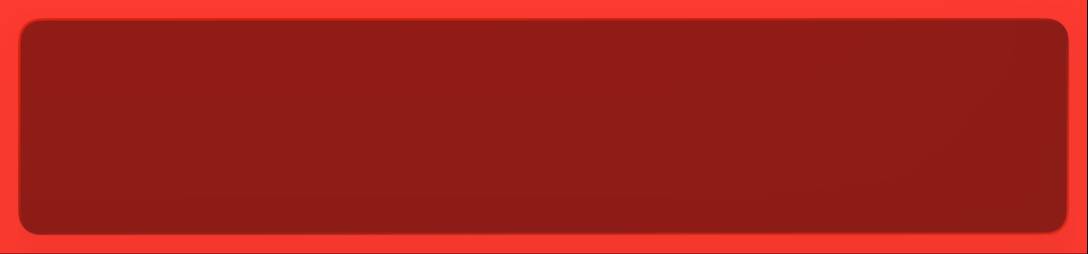

GlassPanelRed	normal	dark	+1,-2	0.998	1.020	0.0	102.2 -> 102.5
Dialog	normal	dark	+0,+0	1.000	1.000	0.0	-
Dialog	normal	light	+0,+0	1.000	1.000	0.0	-

Side-by-side comparisons (worst first)

Toolbar_normal_dark -- 74.49% fidelity (SSIM 0.9295) (no change)

Left: native widget. Right: Codename One render.
Button_normal_dark -- 79.28% fidelity (SSIM 0.9380) (no change)

Left: native widget. Right: Codename One render.
Button_disabled_dark -- 79.63% fidelity (SSIM 0.9423) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_disabled_dark -- 81.15% fidelity (SSIM 0.9544) (no change)

Left: native widget. Right: Codename One render.
Tabs_normal_dark -- 86.22% fidelity (SSIM 0.8999) (+0.33 vs baseline)

Left: native widget. Right: Codename One render.
Button_pressed_dark -- 86.28% fidelity (SSIM 0.9483) (no change)

Left: native widget. Right: Codename One render.
Tabs_normal_light -- 86.43% fidelity (SSIM 0.8954) (+0.31 vs baseline)

Left: native widget. Right: Codename One render.
TextField_normal_light -- 86.49% fidelity (SSIM 0.9502) (no change)

Left: native widget. Right: Codename One render.
Toolbar_normal_light -- 86.94% fidelity (SSIM 0.9488) (no change)

Left: native widget. Right: Codename One render.
TextField_disabled_light -- 89.39% fidelity (SSIM 0.9540) (no change)

Left: native widget. Right: Codename One render.
Button_normal_light -- 89.45% fidelity (SSIM 0.9588) (no change)

Left: native widget. Right: Codename One render.
Button_pressed_light -- 89.45% fidelity (SSIM 0.9588) (no change)

Left: native widget. Right: Codename One render.
Spinner_normal_dark -- 90.72% fidelity (SSIM 0.8800) (no change)

Left: native widget. Right: Codename One render.
FlatButton_normal_dark -- 90.88% fidelity (SSIM 0.9805) (no change)

Left: native widget. Right: Codename One render.
Button_disabled_light -- 91.57% fidelity (SSIM 0.9621) (no change)

Left: native widget. Right: Codename One render.
Spinner_normal_light -- 91.58% fidelity (SSIM 0.9097) (no change)

Left: native widget. Right: Codename One render.
CheckBox_normal_light -- 91.66% fidelity (SSIM 0.9935) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_light -- 91.66% fidelity (SSIM 0.9935) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_dark -- 92.13% fidelity (SSIM 0.9434) (no change)

Left: native widget. Right: Codename One render.
Switch_selected_light -- 92.13% fidelity (SSIM 0.9806) (no change)

Left: native widget. Right: Codename One render.
CheckBox_disabled_light -- 92.31% fidelity (SSIM 0.9948) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_light -- 92.31% fidelity (SSIM 0.9948) (no change)

Left: native widget. Right: Codename One render.
FlatButton_pressed_dark -- 92.38% fidelity (SSIM 0.9821) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_disabled_light -- 92.40% fidelity (SSIM 0.9596) (no change)

Left: native widget. Right: Codename One render.
Slider_normal_dark -- 92.52% fidelity (SSIM 0.9441) (no change)

Left: native widget. Right: Codename One render.
TabsGeom_normal_light -- 93.13% fidelity (SSIM 0.8851) (+0.14 vs baseline)

Left: native widget. Right: Codename One render.
FlatButton_pressed_light -- 93.29% fidelity (SSIM 0.9811) (no change)

Left: native widget. Right: Codename One render.
TabsGeom_normal_dark -- 93.81% fidelity (SSIM 0.8925) (+0.14 vs baseline)

Left: native widget. Right: Codename One render.
FlatButton_normal_light -- 93.91% fidelity (SSIM 0.9811) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_light -- 93.96% fidelity (SSIM 0.9625) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_pressed_dark -- 94.08% fidelity (SSIM 0.9659) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_normal_dark -- 94.13% fidelity (SSIM 0.9660) (no change)

Left: native widget. Right: Codename One render.
RadioButton_selected_light -- 94.26% fidelity (SSIM 0.9903) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_pressed_light -- 94.53% fidelity (SSIM 0.9633) (no change)

Left: native widget. Right: Codename One render.

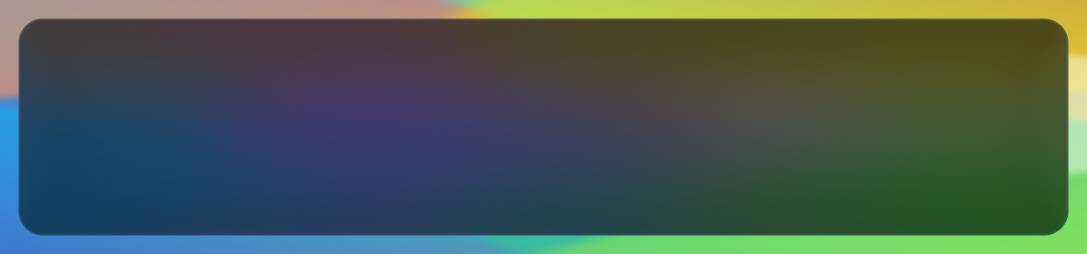

GlassPanelPhoto_normal_dark -- 94.60% fidelity (SSIM 0.9505) (no change)

Left: native widget. Right: Codename One render.

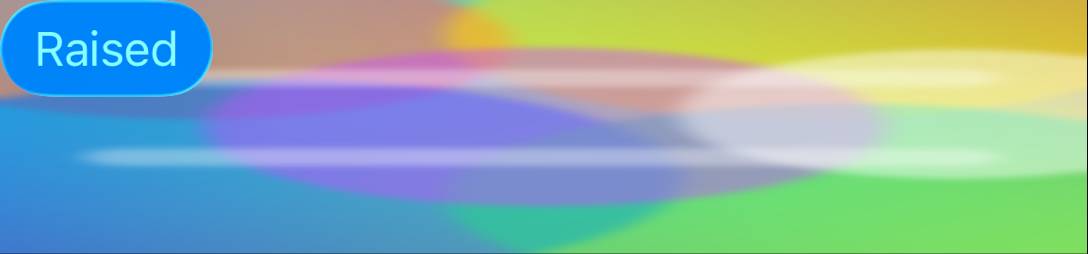

RaisedButton_normal_light -- 94.64% fidelity (SSIM 0.9632) (no change)

Left: native widget. Right: Codename One render.

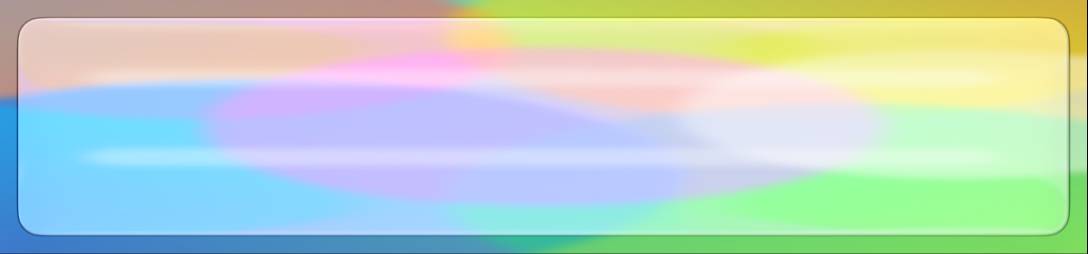

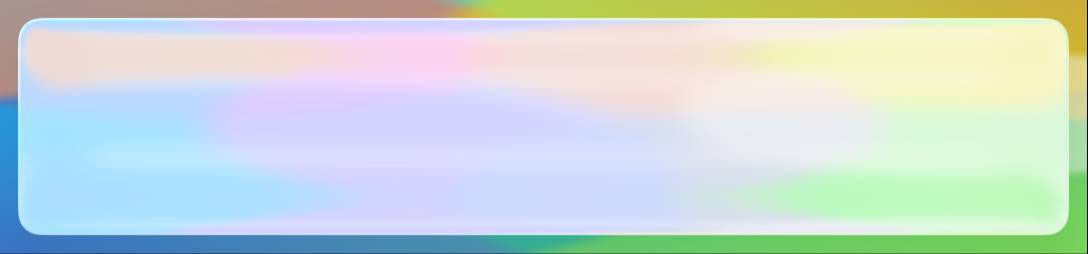

GlassPanelPhoto_normal_light -- 94.66% fidelity (SSIM 0.9507) (no change)

Left: native widget. Right: Codename One render.
Slider_normal_light -- 95.09% fidelity (SSIM 0.9588) (no change)

Left: native widget. Right: Codename One render.
CheckBox_disabled_dark -- 95.41% fidelity (SSIM 0.9924) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_dark -- 95.41% fidelity (SSIM 0.9924) (no change)

Left: native widget. Right: Codename One render.
Switch_normal_light -- 95.51% fidelity (SSIM 0.9863) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_light -- 95.80% fidelity (SSIM 0.9951) (no change)

Left: native widget. Right: Codename One render.
CheckBox_normal_dark -- 95.84% fidelity (SSIM 0.9922) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_dark -- 95.84% fidelity (SSIM 0.9922) (no change)

Left: native widget. Right: Codename One render.
Switch_selected_dark -- 95.90% fidelity (SSIM 0.9850) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_dark -- 96.00% fidelity (SSIM 0.9370) (no change)

Left: native widget. Right: Codename One render.
RadioButton_selected_dark -- 96.13% fidelity (SSIM 0.9894) (no change)

Left: native widget. Right: Codename One render.
Switch_disabled_light -- 96.35% fidelity (SSIM 0.9896) (no change)

Left: native widget. Right: Codename One render.
TextField_disabled_dark -- 96.35% fidelity (SSIM 0.9395) (no change)

Left: native widget. Right: Codename One render.
Switch_normal_dark -- 96.80% fidelity (SSIM 0.9855) (no change)

Left: native widget. Right: Codename One render.
TabOne_normal_light -- 96.90% fidelity (SSIM 0.9480) (no change)

Left: native widget. Right: Codename One render.
GlassIcon_normal_dark -- 97.18% fidelity (SSIM 0.9547) (no change)

Left: native widget. Right: Codename One render.

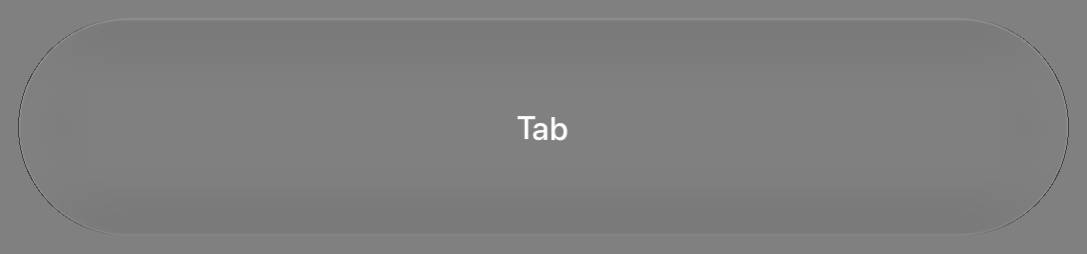

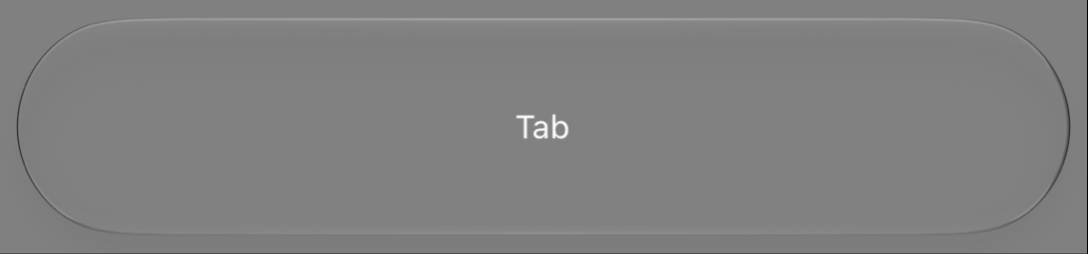

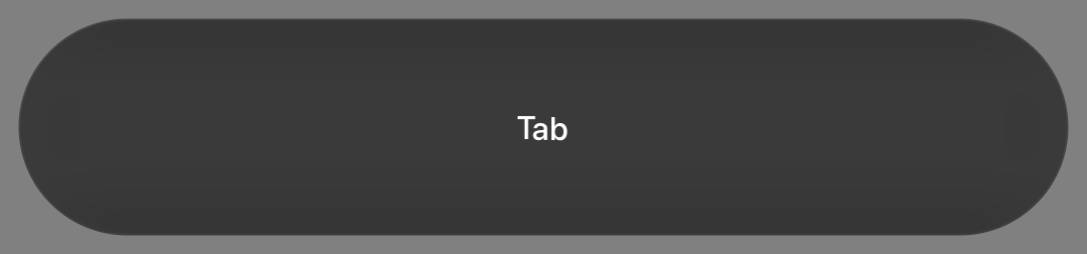

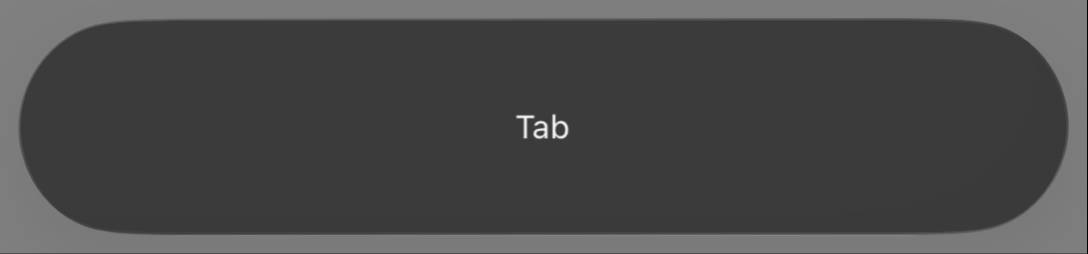

GlassText_normal_dark -- 97.27% fidelity (SSIM 0.9563) (+0.06 vs baseline)

Left: native widget. Right: Codename One render.

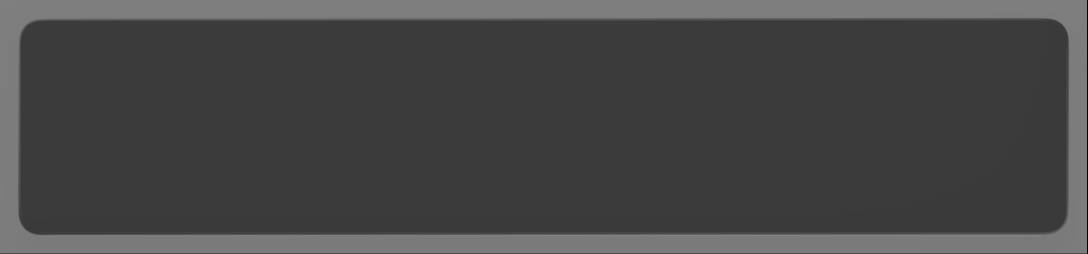

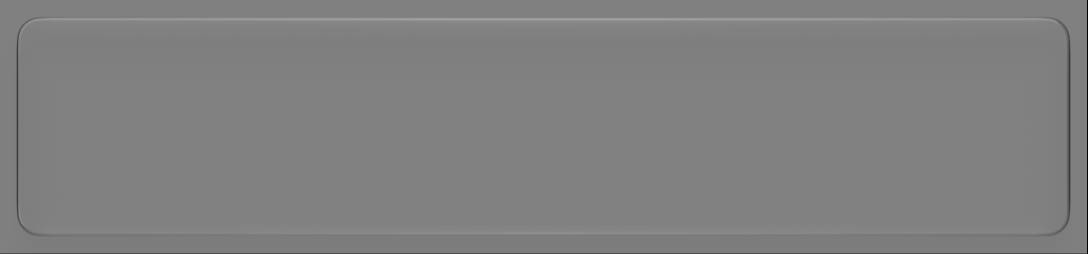

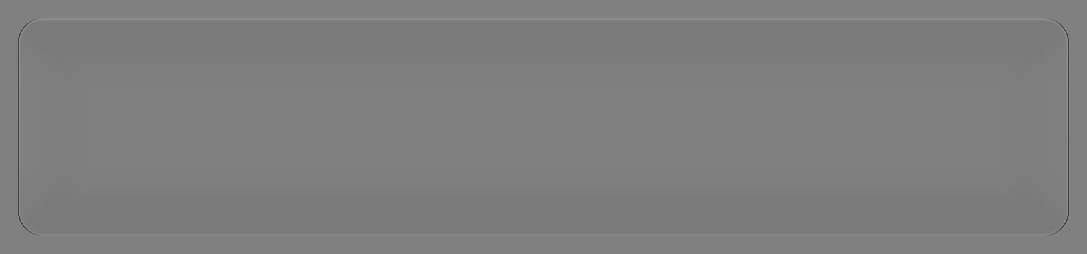

GlassPanelGrey_normal_dark -- 97.35% fidelity (SSIM 0.9588) (no change)

Left: native widget. Right: Codename One render.

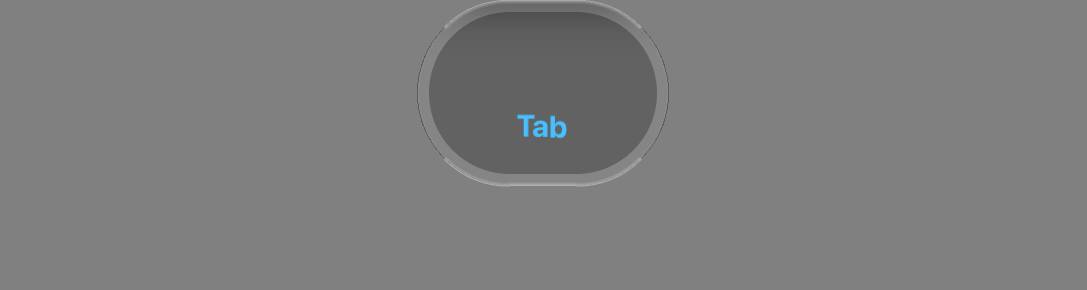

TabOne_normal_dark -- 97.36% fidelity (SSIM 0.9531) (no change)

Left: native widget. Right: Codename One render.
ProgressBar_normal_dark -- 97.47% fidelity (SSIM 0.9973) (no change)

Left: native widget. Right: Codename One render.
ProgressBar_normal_light -- 97.60% fidelity (SSIM 0.9989) (no change)

Left: native widget. Right: Codename One render.
GlassPanelRed_normal_dark -- 97.73% fidelity (SSIM 0.9795) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_dark -- 97.85% fidelity (SSIM 0.9945) (no change)

Left: native widget. Right: Codename One render.
Dialog_normal_dark -- 97.86% fidelity (SSIM 0.9614) (no change)

Left: native widget. Right: Codename One render.
GlassPanelGrad_normal_dark -- 97.91% fidelity (SSIM 0.9752) (no change)

Left: native widget. Right: Codename One render.
Dialog_normal_light -- 97.95% fidelity (SSIM 0.9634) (no change)

Left: native widget. Right: Codename One render.
Switch_disabled_dark -- 98.01% fidelity (SSIM 0.9869) (no change)

Left: native widget. Right: Codename One render.
GlassIcon_normal_light -- 98.16% fidelity (SSIM 0.9750) (no change)

Left: native widget. Right: Codename One render.
GlassText_normal_light -- 98.31% fidelity (SSIM 0.9779) (+0.06 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrad_normal_light -- 98.41% fidelity (SSIM 0.9876) (no change)

Left: native widget. Right: Codename One render.
GlassPanelGrey_normal_light -- 98.70% fidelity (SSIM 0.9865) (no change)

Left: native widget. Right: Codename One render.
GlassPanelRed_normal_light -- 98.78% fidelity (SSIM 0.9900) (no change)

Left: native widget. Right: Codename One render.

github-actions · 2026-10-08T16:06:59Z

✅ ByteCodeTranslator Quality Report

Test & Coverage

✅ Tests: 821 total, 0 failed, 57 skipped

Benchmark Results

Execution Time: 5477 ms
Hotspots (Top 20 sampled methods):
- 8.63% java.lang.Object.hashCode (73 samples)
- 7.45% com.codename1.tools.translator.BytecodeMethod.equals (63 samples)
- 6.74% java.lang.System.identityHashCode (57 samples)
- 5.20% java.util.ArrayList.indexOf (44 samples)
- 4.85% com.codename1.tools.translator.IteratorEscape.mangle (41 samples)
- 3.43% java.lang.StringBuilder.append (29 samples)
- 2.84% com.codename1.tools.translator.IteratorEscape.ctorOnlyStoresParamsIntoThis (24 samples)
- 2.84% java.util.AbstractCollection.containsAll (24 samples)
- 2.01% com.codename1.tools.translator.ByteCodeClass.hasDeclaredMethod (17 samples)
- 1.77% com.codename1.tools.translator.Parser.cullMethods (15 samples)
- 1.65% com.codename1.tools.translator.BytecodeMethod.updateInlinableFieldDependencies (14 samples)
- 1.65% com.codename1.tools.translator.bytecodes.Invoke.findMethodUp (14 samples)
- 1.42% com.codename1.tools.translator.Parser.writeOutput (12 samples)
- 1.42% com.codename1.tools.translator.classfile.analysis.Frame.execute (12 samples)
- 1.42% java.io.FileOutputStream.writeBytes (12 samples)
- 1.30% java.util.HashMap.putVal (11 samples)
- 1.30% java.util.HashMap.hash (11 samples)
- 1.30% java.lang.StringCoding.encode (11 samples)
- 1.18% com.codename1.tools.translator.ByteCodeClass.generateCCode (10 samples)
- 1.06% com.codename1.tools.translator.NativeSymbolIndex.<init> (9 samples)
⚠️ Coverage report not generated.

Static Analysis

✅ SpotBugs: no findings (report was not generated by the build).
⚠️ PMD report not generated.
⚠️ Checkstyle report not generated.

Generated automatically by the PR CI workflow.

shai-almog · 2026-10-08T16:10:40Z

Native fidelity (iOS Modern, Metal)

68 pairs compared -- median 95.0%, worst 83.5% (Tabs_normal_dark), 25th pct 92.5%, mean 94.6%.

Distribution -- >=99%: 3 | 95-99%: 31 | 90-95%: 29 | <90%: 5

Component	State	Appearance	Material	Fidelity	SSIM	mean delta	vs base	Geometry
Tabs	normal	dark	glass	83.5%	0.884	11.66	0.0	ok
Tabs	normal	light	glass	86.4%	0.896	8.00	0.0	ok
Toolbar	normal	light	glass	87.6%	0.951	4.24	0.0	ok
Toolbar	normal	dark	glass	87.7%	0.950	3.69	0.0	ok
Button	pressed	dark	glass	89.9%	0.958	4.21	0.0	OFF (off 12px, w 1.10)
TextField	normal	light	normal	90.0%	0.958	2.78	-0.4	ok
Spinner	normal	dark	normal	90.8%	0.881	3.39	-0.7	ok
TextField	disabled	light	normal	91.1%	0.962	2.24	-0.2	ok
Spinner	normal	light	normal	91.6%	0.910	4.11	-0.2	ok
RaisedButton	disabled	light	glass	91.8%	0.961	3.09	+0.2	ok
Button	normal	dark	glass	91.8%	0.958	3.52	0.0	OFF (off 12px, w 1.10)
Slider	disabled	dark	normal	92.1%	0.943	2.45	-0.3	ok
Switch	selected	light	normal	92.1%	0.981	1.47	0.0	ok
CheckBox	normal	light	normal	92.2%	0.994	0.68	0.0	ok
RadioButton	normal	light	normal	92.2%	0.994	0.68	0.0	ok
FlatButton	normal	dark	glass	92.2%	0.983	2.21	+4.3	ok
Button	normal	light	glass	92.4%	0.961	3.65	0.0	OFF (off 12px, w 1.10)
Slider	normal	dark	normal	92.5%	0.944	2.63	-0.2	ok
RaisedButton	disabled	dark	glass	92.7%	0.965	2.72	+1.3	ok
CheckBox	disabled	light	normal	92.7%	0.995	0.50	0.0	ok
RadioButton	disabled	light	normal	92.7%	0.995	0.50	0.0	ok
Button	pressed	light	glass	92.9%	0.962	3.29	0.0	OFF (off 12px, w 1.10)
FlatButton	pressed	dark	glass	92.9%	0.985	1.26	+2.3	ok
TabsGeom	normal	dark	normal	93.0%	0.892	8.75	0.0	ok
TabsGeom	normal	light	normal	93.0%	0.886	7.09	0.0	ok
FlatButton	pressed	light	glass	93.2%	0.982	1.90	+4.3	ok
Button	disabled	dark	glass	93.5%	0.962	2.47	0.0	OFF (off 12px, w 1.10)
Slider	disabled	light	normal	94.0%	0.963	1.75	-0.1	OFF (h 4.50)
FlatButton	normal	light	glass	94.2%	0.983	1.79	+1.3	ok
Button	disabled	light	glass	94.4%	0.964	2.36	0.0	OFF (off 12px, w 1.10)
RaisedButton	pressed	dark	glass	94.6%	0.965	2.07	+1.5	ok
RaisedButton	normal	dark	glass	94.6%	0.966	2.08	+1.7	ok
RaisedButton	pressed	light	glass	94.8%	0.967	2.22	+2.0	ok
RadioButton	selected	light	normal	94.8%	0.992	0.86	0.0	ok
RaisedButton	normal	light	glass	95.0%	0.967	2.19	+2.4	ok
Slider	normal	light	normal	95.1%	0.959	1.56	0.0	ok
Switch	normal	light	normal	95.5%	0.986	0.70	0.0	ok
CheckBox	disabled	dark	normal	95.8%	0.993	0.25	0.0	ok
RadioButton	disabled	dark	normal	95.8%	0.993	0.25	0.0	ok
CheckBox	selected	light	normal	95.8%	0.994	0.67	0.0	ok
Switch	selected	dark	normal	95.9%	0.985	1.02	0.0	ok
Switch	disabled	light	normal	96.4%	0.990	0.53	0.0	ok
CheckBox	normal	dark	normal	96.5%	0.993	0.35	0.0	ok
RadioButton	normal	dark	normal	96.5%	0.993	0.35	0.0	ok
GlassPanelPhoto	normal	light	glass	96.7%	0.980	7.95	+0.6	ok
GlassPanelPhoto	normal	dark	glass	96.8%	0.983	8.78	+0.6	ok
TabOne	normal	dark	normal	96.8%	0.953	4.44	+0.7	ok
Switch	normal	dark	normal	96.8%	0.986	0.82	0.0	ok
RadioButton	selected	dark	normal	96.8%	0.991	0.57	0.0	ok
TextField	normal	dark	normal	96.9%	0.949	3.30	-0.2	ok
TextField	disabled	dark	normal	97.2%	0.953	2.37	-0.2	ok
ProgressBar	normal	dark	normal	97.5%	0.997	0.60	+3.0	ok
TabOne	normal	light	normal	97.5%	0.961	2.90	+1.9	ok
ProgressBar	normal	light	normal	97.6%	0.999	0.61	+2.2	ok
CheckBox	selected	dark	normal	97.8%	0.993	0.38	0.0	ok
Dialog	normal	dark	normal	97.9%	0.961	1.38	+0.9	ok
Dialog	normal	light	normal	98.0%	0.963	1.42	+0.9	ok
Switch	disabled	dark	normal	98.0%	0.987	0.41	+2.5	ok
GlassIcon	normal	dark	normal	98.6%	0.984	3.55	0.0	ok
GlassText	normal	dark	normal	98.6%	0.985	3.48	0.0	ok
GlassIcon	normal	light	normal	98.7%	0.986	3.54	0.0	ok
GlassText	normal	light	normal	98.7%	0.987	3.54	0.0	ok
GlassPanelGrad	normal	light	normal	98.9%	0.994	4.38	+0.7	ok
GlassPanelGrad	normal	dark	normal	99.0%	0.993	3.84	+0.5	ok
GlassPanelGrey	normal	dark	normal	99.0%	0.992	3.30	+0.6	ok
GlassPanelGrey	normal	light	normal	99.1%	0.994	3.29	+0.7	ok
GlassPanelRed	normal	dark	normal	99.1%	0.993	3.22	+0.5	ok
GlassPanelRed	normal	light	normal	99.1%	0.994	3.49	+0.7	ok

Geometry vs native (bbox offset / size ratio / center offset / corner radius) -- gated separately from the visual score

Component	State	Appearance	bbox dx,dy (px)	w ratio	h ratio	center off (px)	radius native->cn1 (px)
Button	pressed	dark	+0,+0	1.104	1.000	11.5	45.4 -> 45.3
Button	normal	dark	+0,+0	1.104	1.000	11.5	45.8 -> 45.2
Button	normal	light	+0,+0	1.104	1.000	11.5	44.5 -> 45.3
Button	pressed	light	+0,+0	1.104	1.000	11.5	48.1 -> 45.4
Button	disabled	dark	+0,+0	1.104	1.000	11.5	45.1 -> 45.2
Button	disabled	light	+0,+0	1.104	1.000	11.5	44.0 -> 45.3
TabOne	normal	dark	-3,+0	1.007	0.948	4.9	80.3 -> 77.3
TabOne	normal	light	-3,+0	1.007	0.948	4.9	79.1 -> 77.0
Toolbar	normal	light	+4,+7	0.987	0.926	3.5	62.5 -> 56.1
Toolbar	normal	dark	+4,+7	0.987	0.919	3.2	60.5 -> 55.5
Switch	selected	light	+0,+0	1.028	1.026	2.7	-
RaisedButton	disabled	dark	+0,+0	1.024	1.011	2.6	49.8 -> 46.1
Slider	disabled	light	+0,-29	1.000	4.500	2.5	-
CheckBox	disabled	light	+1,-3	1.000	1.023	2.2	-
RadioButton	disabled	light	+1,-3	1.000	1.023	2.2	-
CheckBox	disabled	dark	+1,-3	1.000	1.023	2.2	-
RadioButton	disabled	dark	+1,-3	1.000	1.023	2.2	-
RaisedButton	disabled	light	+0,+0	1.019	1.011	2.1	54.1 -> 96.6
RaisedButton	pressed	dark	+0,+0	1.019	1.011	2.1	44.5 -> 44.3
RaisedButton	normal	dark	+0,+0	1.019	1.011	2.1	44.4 -> 44.3
RaisedButton	pressed	light	+0,+0	1.019	1.011	2.1	44.7 -> 44.3
RaisedButton	normal	light	+0,+0	1.019	1.011	2.1	44.5 -> 44.1
Switch	normal	light	+0,+0	1.023	1.013	2.1	-
Switch	disabled	light	+0,+0	1.023	1.013	2.1	-
Switch	normal	dark	+0,+0	1.023	1.013	2.1	-
Switch	disabled	dark	+0,+0	1.023	1.013	2.1	-
CheckBox	normal	dark	+0,-2	1.000	1.000	2.0	-
RadioButton	normal	dark	+0,-2	1.000	1.000	2.0	-
RadioButton	selected	dark	+0,-2	1.000	1.000	2.0	-
CheckBox	selected	dark	+0,-2	1.000	1.000	2.0	-
Tabs	normal	dark	+9,+0	0.973	1.012	1.8	79.7 -> 80.7
Tabs	normal	light	+9,+0	0.973	1.012	1.8	79.2 -> 80.3
TabsGeom	normal	dark	+9,+0	0.973	1.012	1.8	80.5 -> 80.9
TabsGeom	normal	light	+9,+0	0.973	1.012	1.8	79.3 -> 80.6
FlatButton	normal	dark	+4,+0	0.966	1.011	1.6	91.8 -> 95.7
FlatButton	pressed	dark	+4,+0	0.966	1.011	1.6	95.3 -> 97.9
Switch	selected	dark	+0,+0	1.017	1.013	1.6	-
CheckBox	normal	light	+0,-2	1.000	1.011	1.5	-
RadioButton	normal	light	+0,-2	1.000	1.011	1.5	-
RadioButton	selected	light	+0,-2	1.000	1.011	1.5	-
CheckBox	selected	light	+0,-2	1.000	1.011	1.5	-
Spinner	normal	light	+11,-9	0.978	1.055	1.1	-
GlassIcon	normal	dark	+0,+1	0.999	1.000	1.1	92.1 -> 91.5
GlassText	normal	dark	+0,+1	0.999	1.000	1.1	92.1 -> 91.5
Spinner	normal	dark	+12,-9	0.977	1.055	1.0	-
GlassPanelGrey	normal	dark	+0,+1	1.000	1.000	1.0	26.4 -> 26.9
TextField	disabled	light	+0,+1	0.999	0.996	0.7	13.9 -> 38.7
FlatButton	normal	light	+0,+0	0.993	1.011	0.7	91.9 -> 51.8
Slider	disabled	dark	+0,-1	1.000	1.015	0.5	-
FlatButton	pressed	light	+1,+0	0.986	1.011	0.5	95.4 -> 65.6
Slider	normal	light	+0,+1	1.000	0.964	0.5	-
GlassPanelPhoto	normal	light	+0,+0	1.000	1.005	0.5	25.6 -> 31.4
GlassPanelPhoto	normal	dark	+0,+0	1.000	1.005	0.5	23.0 -> 27.0
ProgressBar	normal	dark	+0,+0	1.000	0.900	0.5	-
ProgressBar	normal	light	+0,+0	1.000	0.900	0.5	-
GlassIcon	normal	light	+0,+0	1.000	1.005	0.5	91.6 -> 92.3
GlassText	normal	light	+0,+0	1.000	1.005	0.5	91.6 -> 92.3
GlassPanelGrad	normal	light	+0,+0	1.000	1.005	0.5	22.3 -> 25.9
GlassPanelGrad	normal	dark	+1,+1	0.998	0.995	0.5	25.7 -> 22.5
GlassPanelGrey	normal	light	+0,+0	1.000	1.005	0.5	22.4 -> 26.0
GlassPanelRed	normal	dark	+1,+1	0.998	0.995	0.5	26.6 -> 22.8
GlassPanelRed	normal	light	+0,+0	1.000	1.005	0.5	22.1 -> 26.1
TextField	normal	light	+0,+0	1.000	1.000	0.0	13.4 -> 40.5
Slider	normal	dark	+0,+0	1.000	1.000	0.0	-
TextField	normal	dark	+0,+0	1.000	1.000	0.0	6.4 -> 15.1
TextField	disabled	dark	+0,+0	1.000	1.000	0.0	6.4 -> 15.9
Dialog	normal	dark	+0,+0	1.000	1.000	0.0	-
Dialog	normal	light	+0,+0	1.000	1.000	0.0	-

Side-by-side comparisons (worst first)

Tabs_normal_dark -- 83.45% fidelity (SSIM 0.8842) (no change)

Left: native widget. Right: Codename One render.
Tabs_normal_light -- 86.44% fidelity (SSIM 0.8961) (no change)

Left: native widget. Right: Codename One render.
Toolbar_normal_light -- 87.64% fidelity (SSIM 0.9511) (no change)

Left: native widget. Right: Codename One render.
Toolbar_normal_dark -- 87.70% fidelity (SSIM 0.9495) (no change)

Left: native widget. Right: Codename One render.
Button_pressed_dark -- 89.93% fidelity (SSIM 0.9576) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_light -- 90.03% fidelity (SSIM 0.9576) (-0.37 vs baseline)

Left: native widget. Right: Codename One render.
Spinner_normal_dark -- 90.78% fidelity (SSIM 0.8814) (-0.69 vs baseline)

Left: native widget. Right: Codename One render.
TextField_disabled_light -- 91.13% fidelity (SSIM 0.9619) (-0.22 vs baseline)

Left: native widget. Right: Codename One render.
Spinner_normal_light -- 91.58% fidelity (SSIM 0.9099) (-0.21 vs baseline)

Left: native widget. Right: Codename One render.
RaisedButton_disabled_light -- 91.76% fidelity (SSIM 0.9613) (+0.15 vs baseline)

Left: native widget. Right: Codename One render.
Button_normal_dark -- 91.84% fidelity (SSIM 0.9583) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_dark -- 92.13% fidelity (SSIM 0.9434) (-0.31 vs baseline)

Left: native widget. Right: Codename One render.
Switch_selected_light -- 92.13% fidelity (SSIM 0.9806) (no change)

Left: native widget. Right: Codename One render.
CheckBox_normal_light -- 92.16% fidelity (SSIM 0.9938) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_light -- 92.16% fidelity (SSIM 0.9938) (no change)

Left: native widget. Right: Codename One render.
FlatButton_normal_dark -- 92.21% fidelity (SSIM 0.9833) (+4.25 vs baseline)

Left: native widget. Right: Codename One render.
Button_normal_light -- 92.37% fidelity (SSIM 0.9609) (no change)

Left: native widget. Right: Codename One render.
Slider_normal_dark -- 92.52% fidelity (SSIM 0.9441) (-0.22 vs baseline)

Left: native widget. Right: Codename One render.
RaisedButton_disabled_dark -- 92.65% fidelity (SSIM 0.9653) (+1.25 vs baseline)

Left: native widget. Right: Codename One render.
CheckBox_disabled_light -- 92.71% fidelity (SSIM 0.9953) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_light -- 92.71% fidelity (SSIM 0.9953) (no change)

Left: native widget. Right: Codename One render.
Button_pressed_light -- 92.88% fidelity (SSIM 0.9617) (no change)

Left: native widget. Right: Codename One render.
FlatButton_pressed_dark -- 92.90% fidelity (SSIM 0.9849) (+2.31 vs baseline)

Left: native widget. Right: Codename One render.
TabsGeom_normal_dark -- 93.02% fidelity (SSIM 0.8921) (+0.01 vs baseline)

Left: native widget. Right: Codename One render.
TabsGeom_normal_light -- 93.02% fidelity (SSIM 0.8861) (no change)

Left: native widget. Right: Codename One render.
FlatButton_pressed_light -- 93.20% fidelity (SSIM 0.9819) (+4.33 vs baseline)

Left: native widget. Right: Codename One render.
Button_disabled_dark -- 93.52% fidelity (SSIM 0.9618) (no change)

Left: native widget. Right: Codename One render.
Slider_disabled_light -- 93.96% fidelity (SSIM 0.9625) (-0.05 vs baseline)

Left: native widget. Right: Codename One render.
FlatButton_normal_light -- 94.18% fidelity (SSIM 0.9825) (+1.32 vs baseline)

Left: native widget. Right: Codename One render.
Button_disabled_light -- 94.35% fidelity (SSIM 0.9636) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_pressed_dark -- 94.56% fidelity (SSIM 0.9653) (+1.46 vs baseline)

Left: native widget. Right: Codename One render.
RaisedButton_normal_dark -- 94.57% fidelity (SSIM 0.9659) (+1.69 vs baseline)

Left: native widget. Right: Codename One render.
RaisedButton_pressed_light -- 94.80% fidelity (SSIM 0.9665) (+2.04 vs baseline)

Left: native widget. Right: Codename One render.
RadioButton_selected_light -- 94.84% fidelity (SSIM 0.9916) (no change)

Left: native widget. Right: Codename One render.
RaisedButton_normal_light -- 95.01% fidelity (SSIM 0.9673) (+2.40 vs baseline)

Left: native widget. Right: Codename One render.
Slider_normal_light -- 95.09% fidelity (SSIM 0.9588) (-0.04 vs baseline)

Left: native widget. Right: Codename One render.
Switch_normal_light -- 95.51% fidelity (SSIM 0.9863) (no change)

Left: native widget. Right: Codename One render.
CheckBox_disabled_dark -- 95.76% fidelity (SSIM 0.9928) (no change)

Left: native widget. Right: Codename One render.
RadioButton_disabled_dark -- 95.76% fidelity (SSIM 0.9928) (no change)

Left: native widget. Right: Codename One render.
CheckBox_selected_light -- 95.80% fidelity (SSIM 0.9938) (no change)

Left: native widget. Right: Codename One render.
Switch_selected_dark -- 95.90% fidelity (SSIM 0.9850) (no change)

Left: native widget. Right: Codename One render.
Switch_disabled_light -- 96.35% fidelity (SSIM 0.9896) (+0.04 vs baseline)

Left: native widget. Right: Codename One render.
CheckBox_normal_dark -- 96.52% fidelity (SSIM 0.9927) (no change)

Left: native widget. Right: Codename One render.
RadioButton_normal_dark -- 96.52% fidelity (SSIM 0.9927) (no change)

Left: native widget. Right: Codename One render.
GlassPanelPhoto_normal_light -- 96.72% fidelity (SSIM 0.9804) (+0.64 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelPhoto_normal_dark -- 96.76% fidelity (SSIM 0.9832) (+0.59 vs baseline)

Left: native widget. Right: Codename One render.
TabOne_normal_dark -- 96.77% fidelity (SSIM 0.9526) (+0.73 vs baseline)

Left: native widget. Right: Codename One render.
Switch_normal_dark -- 96.80% fidelity (SSIM 0.9855) (no change)

Left: native widget. Right: Codename One render.
RadioButton_selected_dark -- 96.81% fidelity (SSIM 0.9908) (no change)

Left: native widget. Right: Codename One render.
TextField_normal_dark -- 96.88% fidelity (SSIM 0.9492) (-0.20 vs baseline)

Left: native widget. Right: Codename One render.
TextField_disabled_dark -- 97.19% fidelity (SSIM 0.9526) (-0.15 vs baseline)

Left: native widget. Right: Codename One render.
ProgressBar_normal_dark -- 97.47% fidelity (SSIM 0.9973) (+3.03 vs baseline)

Left: native widget. Right: Codename One render.
TabOne_normal_light -- 97.51% fidelity (SSIM 0.9608) (+1.89 vs baseline)

Left: native widget. Right: Codename One render.
ProgressBar_normal_light -- 97.60% fidelity (SSIM 0.9989) (+2.19 vs baseline)

Left: native widget. Right: Codename One render.
CheckBox_selected_dark -- 97.79% fidelity (SSIM 0.9932) (no change)

Left: native widget. Right: Codename One render.
Dialog_normal_dark -- 97.86% fidelity (SSIM 0.9614) (+0.89 vs baseline)

Left: native widget. Right: Codename One render.
Dialog_normal_light -- 97.95% fidelity (SSIM 0.9634) (+0.86 vs baseline)

Left: native widget. Right: Codename One render.
Switch_disabled_dark -- 98.01% fidelity (SSIM 0.9869) (+2.48 vs baseline)

Left: native widget. Right: Codename One render.
GlassIcon_normal_dark -- 98.59% fidelity (SSIM 0.9841) (no change)

Left: native widget. Right: Codename One render.
GlassText_normal_dark -- 98.64% fidelity (SSIM 0.9848) (+0.05 vs baseline)

Left: native widget. Right: Codename One render.
GlassIcon_normal_light -- 98.67% fidelity (SSIM 0.9860) (no change)

Left: native widget. Right: Codename One render.
GlassText_normal_light -- 98.74% fidelity (SSIM 0.9874) (+0.05 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrad_normal_light -- 98.91% fidelity (SSIM 0.9935) (+0.67 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrad_normal_dark -- 98.98% fidelity (SSIM 0.9928) (+0.55 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrey_normal_dark -- 98.99% fidelity (SSIM 0.9917) (+0.57 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelGrey_normal_light -- 99.05% fidelity (SSIM 0.9936) (+0.67 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelRed_normal_dark -- 99.09% fidelity (SSIM 0.9926) (+0.52 vs baseline)

Left: native widget. Right: Codename One render.
GlassPanelRed_normal_light -- 99.10% fidelity (SSIM 0.9939) (+0.67 vs baseline)

Left: native widget. Right: Codename One render.

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: df423ba822

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

… and root opacity in generated images A pattern fill is tiled; a mask keeps to its region; a gradient with an href takes its coordinates, units and transform from the one it names, not only its stops; text is stroked as well as filled; the opacity of the root element fades the finished drawing. The url() of an @import is no longer scanned as an image by the build's staleness check: with a query after it, it named a file that is never there and made every build stale. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T04:44:38Z

@codex review

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 9b22dd9341

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…s in the texture path An <svg> inside an SVG is laid out in its own box, fitted by its view box and cut off at the box's edges, instead of being skipped with everything in it. background-repeat: space with more tiles than are drawn one by one repeated the bare tile; what repeats now is the tile and its gap. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T04:55:40Z

@codex review

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 70db9626bb

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…s and symbol fitting in generated images An element with a filter is drawn through it; marker-start, -mid and -end are drawn on the points of a line; currentColor is the element's color; a percentage in a shape is a share of the viewport; a length in in, cm, mm, pt or pc is that many pixels; a gradient repeats or reflects when its spreadMethod says; a symbol is fitted by its preserveAspectRatio. Two findings about CSS backgrounds are answered in comments: the order of redeclared background properties and a second gradient layer are both as the page the browser was given had them. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T05:51:39Z

@codex review

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 32faa3d8e3

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…election; deleted localization bundles leave the theme A <tspan> is placed and styled on its own; clip-rule decides the holes of a clip path; an important declaration in a style attribute beats one in a rule; a dotLottie archive shows the animation its manifest picks, at build time and in generated images alike; a localization bundle whose files are gone is taken out of a theme rebuilt on the previous output. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T06:16:47Z

@codex review

chatgpt-codex-connector

💡 Codex Review

CodenameOne/maven/svg-transcoder/src/main/java/com/codename1/svg/transcoder/parser/SVGParser.java

Lines 1041 to 1044 in b913efe


           String tr = a.get("transform");

           if (tr != null) {

               SVGTransform t = TransformParser.parse(tr);

               if (t != null) n.setTransform(t);

Honor CSS transforms in rasterized SVGs

When a generated-image SVG specifies a transform through an inline style or embedded stylesheet, such as .moved { transform: rotate(45deg); }, this reads only the XML transform attribute. Stylesheet declarations are folded into the style value later and StyleParser does not retain transform, so the element is painted at its untransformed geometry even though the removed browser renderer applied the CSS transform.

CodenameOne/maven/svg-transcoder/src/main/java/com/codename1/svg/transcoder/parser/SVGParser.java

Lines 373 to 374 in b913efe


           } else {

               skip(r);

Preserve SVG hyperlink subtrees

When a generated-image SVG wraps artwork in an <a> element, this default branch skips the whole element and consumes all of its children. The hyperlink itself need not be interactive in a raster image, but its paths and shapes must still be drawn; otherwise linked regions disappear entirely compared with the removed browser renderer, so parse <a> as a styled container while ignoring its navigation behavior.

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

… of another file; multi-images of an outside import; url() in a string is no dependency A stroke with vector-effect: non-scaling-stroke keeps its width; the colour after a reference to nothing is painted; a filter reads FillPaint and StrokePaint; a <use> draws an element of an SVG file beside its own. A merged build copies a multi-image directory that an import from outside the input directory names. The build's staleness check no longer takes url(...) written inside a CSS string for a file. Markers stay per element, not per subpath, with the reason in a comment. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T07:27:22Z

@codex review

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 7838626a7a

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…s and clip path transforms; a native theme part's import is found beside the part Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T07:54:36Z

@codex review

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 1bc7681e65

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…eir box; end hard stops; use inside a clip path; xml:space=preserve Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T08:48:27Z

@codex review

chatgpt-codex-connector

💡 Codex Review

CodenameOne/maven/svg-transcoder/src/main/java/com/codename1/svg/transcoder/parser/SVGParser.java

Lines 398 to 400 in efbfa1f

Parse SVG anchor elements as graphical containers

When an SVG wraps artwork in a standard <a> element, this fallback skips the entire subtree instead of treating the anchor like a group. For example, <a href="..."><rect .../></a> produces no rectangle at all in a generated background, whereas the removed browser renderer displayed the linked artwork; ignore the hyperlink behavior but retain and paint its graphical children.

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

… viewport; an outside multi-image directory is as new as its images Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T11:38:03Z

@codex review

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 9863cf6f79

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…age stroke widths Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T12:30:50Z

@codex review

chatgpt-codex-connector

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 312531ac9e

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

Open a pull request for review
Mark a draft as ready
Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

…t written inside a string is no dependency Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

shai-almog · 2026-10-11T13:21:43Z

@codex review

shai-almog and others added 7 commits October 8, 2026 12:10

Give HeadlessCssCompilerImplementation the full license header

49a2fc8

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

CSS compiler CLI: say "compiled" only when a compile happened

9bec1cd

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

chatgpt-codex-connector Bot reviewed Oct 8, 2026

View reviewed changes

github-advanced-security Bot found potential problems Oct 8, 2026

View reviewed changes

Comment thread ...css-compiler/src/main/java/com/codename1/designer/css/HeadlessCssCompilerImplementation.java Fixed

chatgpt-codex-connector Bot reviewed Oct 8, 2026

View reviewed changes

chatgpt-codex-connector Bot reviewed Oct 11, 2026

View reviewed changes

SVG attribute selectors, percentage opacities, quoted paint reference…

1bc7681

…s and clip path transforms; a native theme part's import is found beside the part Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

chatgpt-codex-connector Bot reviewed Oct 11, 2026

View reviewed changes

SVG root transform, clip, mask and filter; files with no size fill th…

efbfa1f

…eir box; end hard stops; use inside a clip path; xml:space=preserve Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

chatgpt-codex-connector Bot reviewed Oct 11, 2026

View reviewed changes

SVG clip paths clipped in their turn and visible overflow on a nested…

9863cf6

… viewport; an outside multi-image directory is as new as its images Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

chatgpt-codex-connector Bot reviewed Oct 11, 2026

View reviewed changes

SVG transforms declared as a property, links drawn as groups, percent…

312531a

…age stroke widths Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

chatgpt-codex-connector Bot reviewed Oct 11, 2026

View reviewed changes

Comment thread maven/build-engine/src/main/java/com/codename1/maven/CssImportDependencies.java Outdated

Comment thread maven/svg-transcoder/src/main/java/com/codename1/svg/transcoder/parser/SVGParser.java

Comment thread maven/css-compiler/src/main/java/com/codename1/designer/css/CSSTheme.java

repeating-conic-gradient; SVG stylesheets filtered by media; an impor…

0b53a4c

…t written inside a string is no dependency Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

	String tr = a.get("transform");
	if (tr != null) {
	SVGTransform t = TransformParser.parse(tr);
	if (t != null) n.setTransform(t);

Conversation

shai-almog commented Oct 8, 2026

What changed

Bugs fixed along the way

Not changed

Testing

Uh oh!

shai-almog commented Oct 8, 2026

Uh oh!

chatgpt-codex-connector Bot commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Codex Review Summary

Uh oh!

chatgpt-codex-connector Bot left a comment

Choose a reason for hiding this comment

💡 Codex Review

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

shai-almog commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Native fidelity (Android, Material 3)

Side-by-side comparisons (worst first)

Uh oh!

shai-almog commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

github-actions Bot commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

github-actions Bot commented Oct 8, 2026

Cloudflare Preview

Uh oh!

shai-almog commented Oct 8, 2026

Uh oh!

shai-almog commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Benchmark Results

Detailed Performance Metrics

Uh oh!

chatgpt-codex-connector Bot left a comment

Choose a reason for hiding this comment

💡 Codex Review

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

Uh oh!

shai-almog commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Benchmark Results

Detailed Performance Metrics

ParparVM vs HotSpot (JDK 25): Windows x64

Uh oh!

shai-almog commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Native Android coverage

Native Android coverage

Benchmark Results

Detailed Performance Metrics

Uh oh!

shai-almog commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

Uh oh!

github-actions Bot commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

✅ Continuous Quality Report

Test & Coverage

Static Analysis

Uh oh!

shai-almog commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

Uh oh!

ParparVM vs HotSpot (JDK 25): Linux x64

Uh oh!

shai-almog commented Oct 8, 2026 • edited Loading Uh oh! There was an error while loading. Please reload this page.

chatgpt-codex-connector Bot commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

github-actions Bot commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

github-actions Bot commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading

github-actions Bot commented Oct 8, 2026 •

edited

Loading

shai-almog commented Oct 8, 2026 •

edited

Loading
